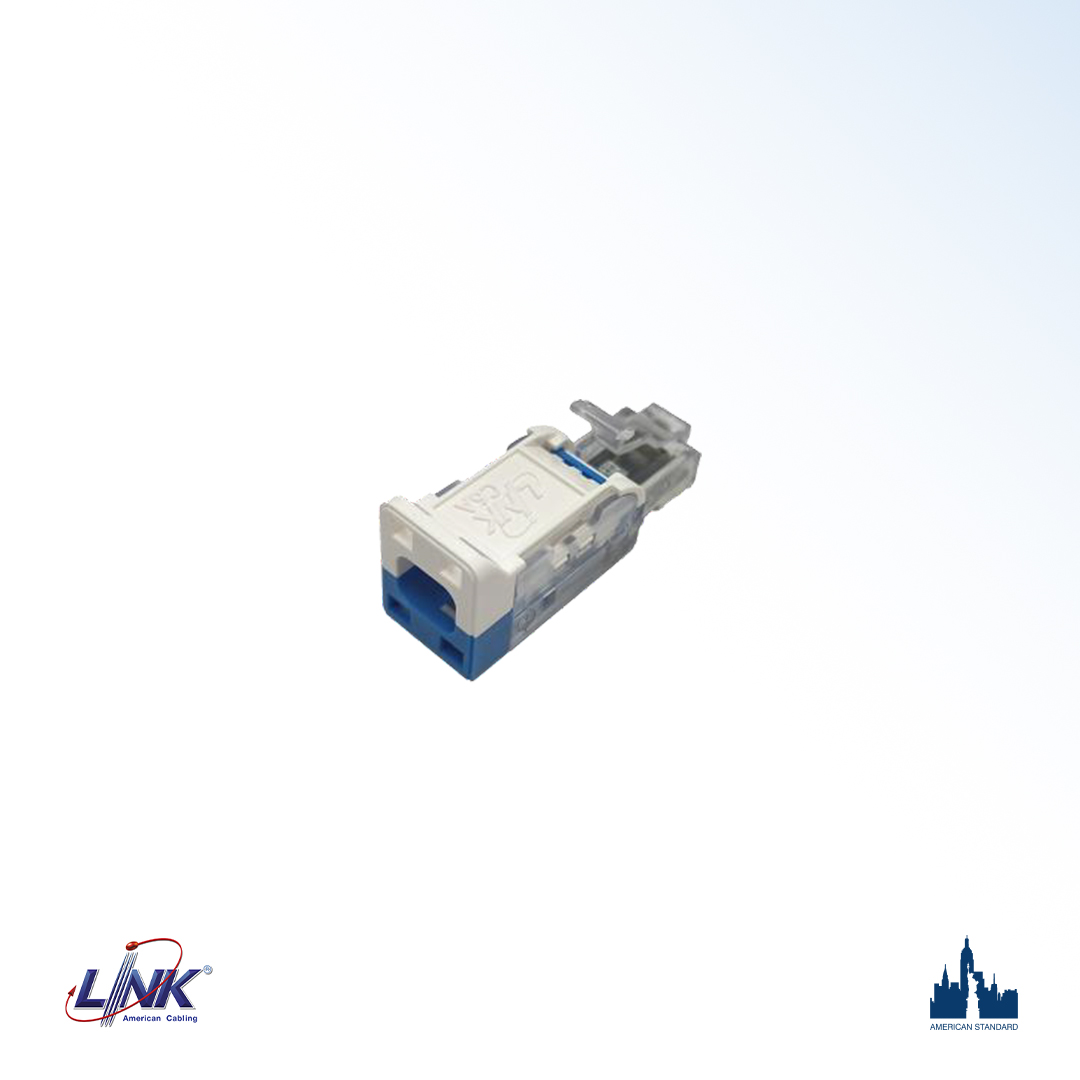

CAT 6A UTP RJ45 PLUG, SUPER-S, Field Terminate

PRODUCTS
US-6110TF
CAT 6A UTP RJ45 PLUG, SUPER-S, Field Terminate
US-6110TF
Copy to clipboard
Scope of Application

CAT 6A UTP RJ45 PLUG, SUPER-S, Field Terminate compliant ISO/IEC 11801:2017 Class EA and ANSI/TIA-568.2-E requirements for category 6A performance. LINK offer plugs in standard configurations to terminate modular cord for patching or MPTL. Simplified termination due to a unique process. features intuitive design that helps to save installation time. Anyone can finish a termination within two minutes with experience. 3-Way Cable Tie Holder is built at rear to secure the termination. Compact design allows you to bend the terminated cable to adapt to any limited space.

Technical Standard

  • ANSI/TIA-568.2-E Category 6A

  • ANSI/TIA-568.2-D Category 6A

  • ISO/IEC 11801:2017 class EA

  • EN 50173-1 Category 6A

  • UL 1863

  • IEC 60603-7, FCC Part 68 Subpart F

  • IEC 60512-27-100

  • RoHS Compliant

  • Approvals UL listed file no. E196947
