LAN (UTP) System
|
CAT 6A Super XG LAN Cabling
|

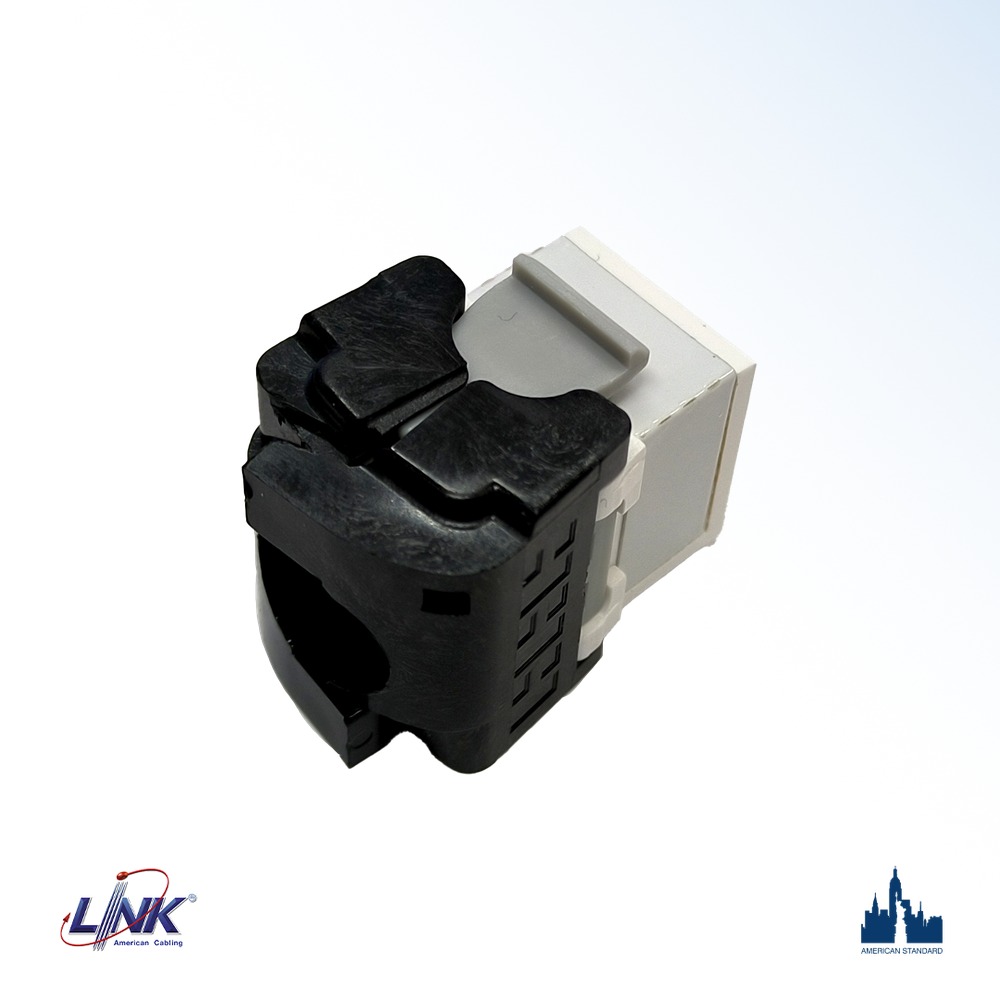

CAT 6A UTP SUPER-S RJ45 JACK, SHORT BODY, Tool Free, Auto Shutter
US-6222TFS
CAT 6A UTP SUPER-S RJ45 JACK, SHORT BODY, Tool Free, Auto Shutter
Copy to clipboard
Scope of Application
LINK UTP CAT6A RJ45 modular jack short body has showed the embossed LINK logo on the front. The jack compliant ISO/IEC 11801:2017 Class EA and ANSI/TIA-568.2-E requirements for category 6A performance. The Jacks accept 26-23 AWG solid & stranded conductor and combine two wiring of T568A/B (Universal color pattern) for easy installation. Tool free cover cap is design for easy to install and can be protect of dust by auto shutter for long life guaranteed. The RJ45 modular jack shall be factory assembled with high quality control and 100% test.
Technical Standard
- ANSI/TIA-568.2-E Category 6A
- ANSI/TIA-568.2-D Category 6A
- ANSI/TIA-568-C.2 Category 6A
- ISO/IEC 11801:2017 class EA
- EN 50173-1 Category 6A
- UL 1863
- IEC 60603-7, IEC 60512-27-100
- RoHS Compliant
- Approvals UL listed file no. E196947
