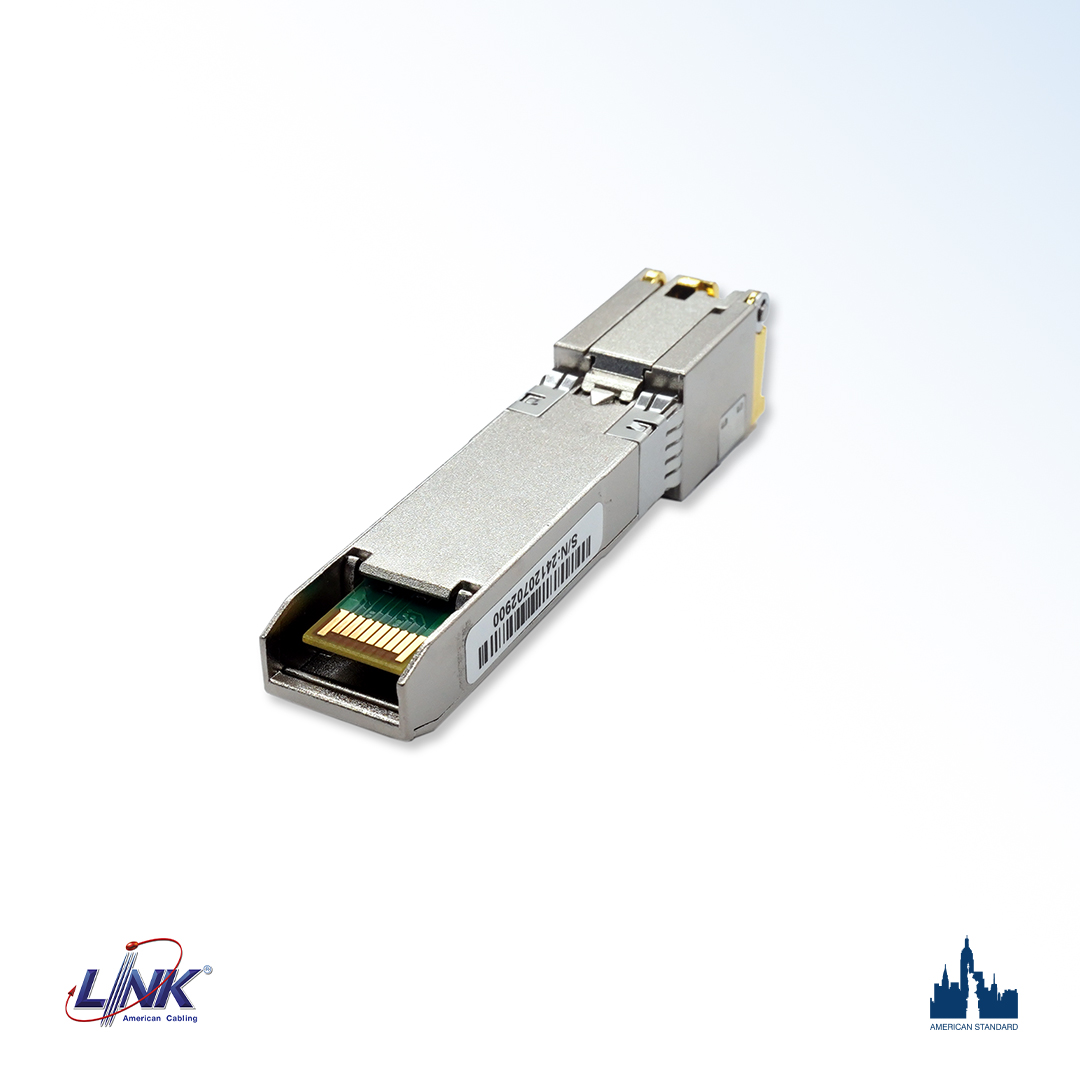

LINK UT-910T-XX is 10GBASE-T Copper Enhanced Small Form-factor Pluggable (SFP+) transceiver is high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10GBASE-T standards as specified in IEEE 802.3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twisted-pair category 6A cable.


The module supports 10Gbps full duplex data-link, interoperability with legacy Ethernet equipment auto-negotiation is of particular significance as it enables data center expansions and expenditures to occur incrementally. The added benefit is that is uses standards based technology that uses the familiar RJ45 connector and provides backward compatibility with legacy networks.


LINK SFP+ transceivers are a hot-pluggable (or hot-swappable). You can plug-in and out the transceiver to/from any SFP+ port without having to power down the network devices.

• Compliant with IEEE802.3ae 10Gigabit Ethernet standard
• Data rate up to 10Gbps with full duplex
• Industry standard enhance small form-factor pluggable (SFP+) package
• Compliant with Multi-Source Agreement (MSA)
• Electrical interface compliant to SFF-8431 and SFF-8432
• Compact RJ45 connector assembly
• Single power supply 3.3V
• Fully metallic enclosure for low EMI
• Hot-Pluggable
• 2.5W maximum power consumption with established link
• Operating temperature from 0°C to 70°C
• Plug and Play Installation
• RoHS Compliant
