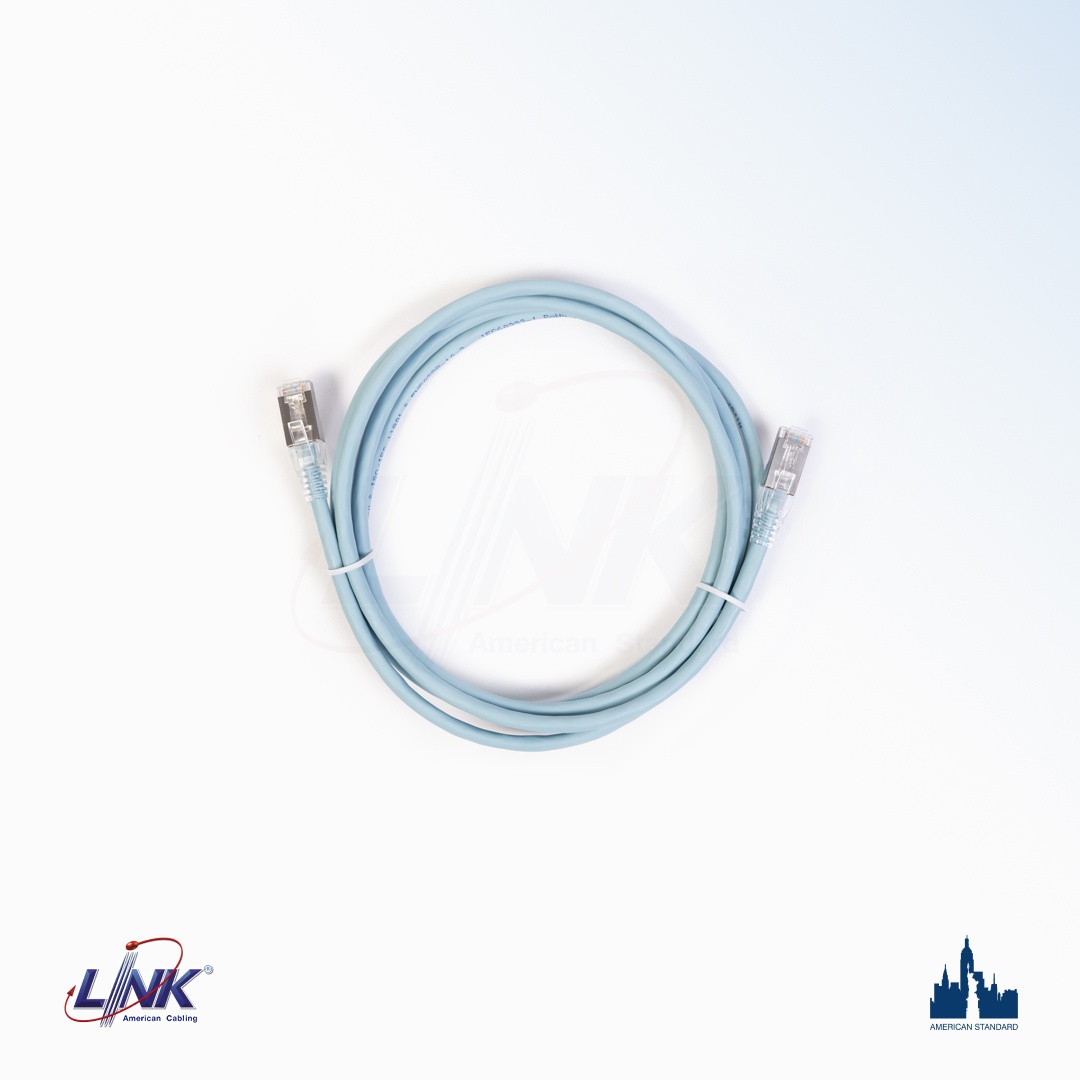

Shield CAT 6A RJ45 – RJ45 PATCH CORD 1 M., XG, LSZH (Aqua Blue)
LINK Category 6A S/FTP patch cord, LSZH compliant ISO/IEC 11801 Class EA and ANSI/TIA-568.2-D requirements for category 6A performance. The both end of the cable shall have RJ45 modular plug with strain relief transparent boot exceed IEC 60603-7, FCC Part 68 Subpart F specification and have 50 micro-inches of gold plating over nickel. RJ45 Modular plug designed robust construction to prevent snagging or tangling. The conductor made from stranded bare copper 26 AWG. Available length in 1, 2, 3, 5, and 10 meters or other. The patch cord shall be factory assembled with high quality control and 100% test. Transmission frequencies up to 600MHz. The outer jacket material made from LSZH compound to reduces the amount toxic smoke and corrosive has emitted during burned, for users’ safety
• ANSI/TIA-568.2-D Category 6A
• ANSI/TIA-568-C.2 Category 6A
• ISO/IEC 11801:2017 class EA
• EN 50173-1 Category 6A
• EN 50288-10-2
• IEC 61156-6, IEC 60332-1
• IEC 61034-1, IEC61034-2
• IEC 60754-1, IEC 60754-2
• IEC 60603-7, FCC Part 68 Subpart F
• UL 1863
• UL and ETL Verified to Category 6A
• RoHS Compliant
