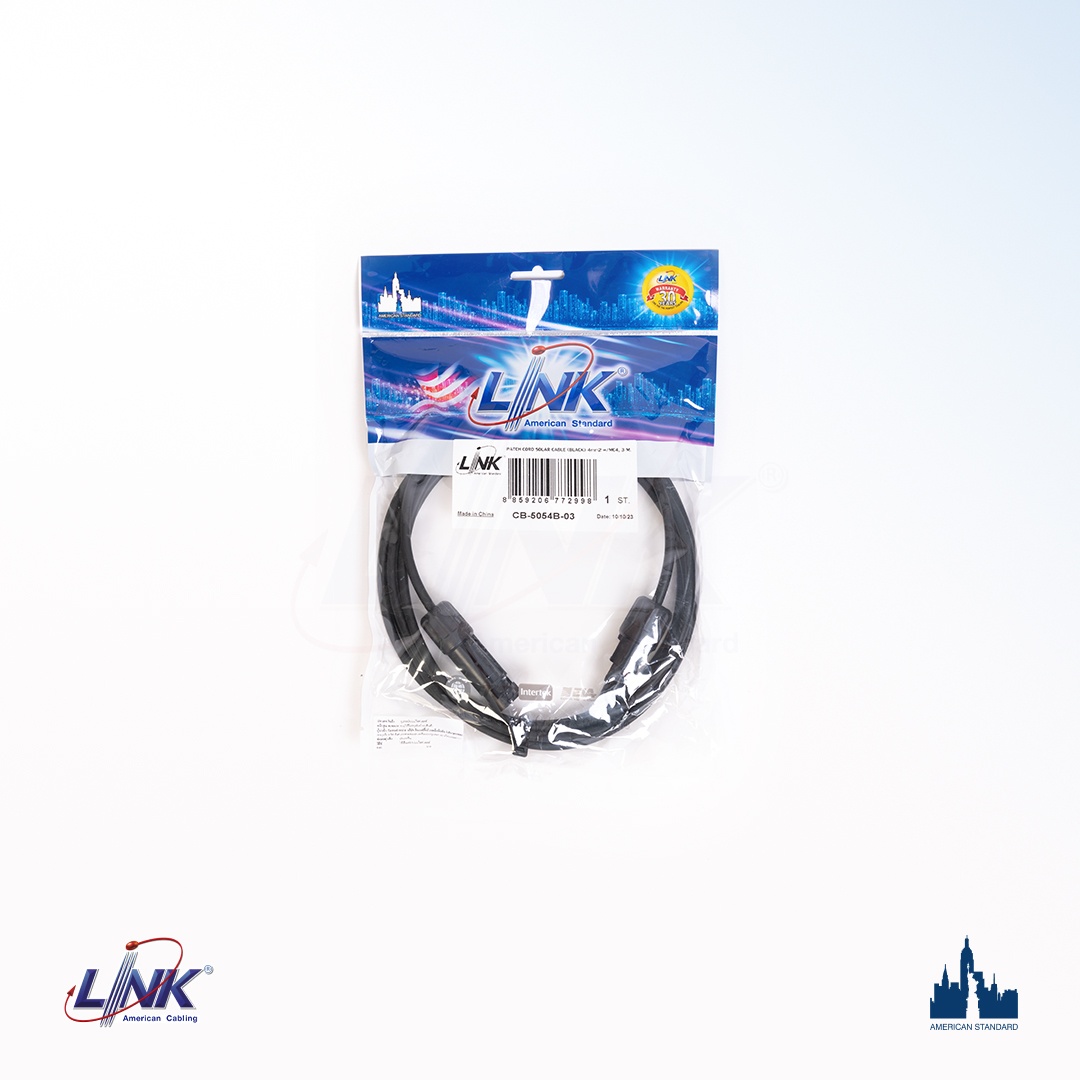

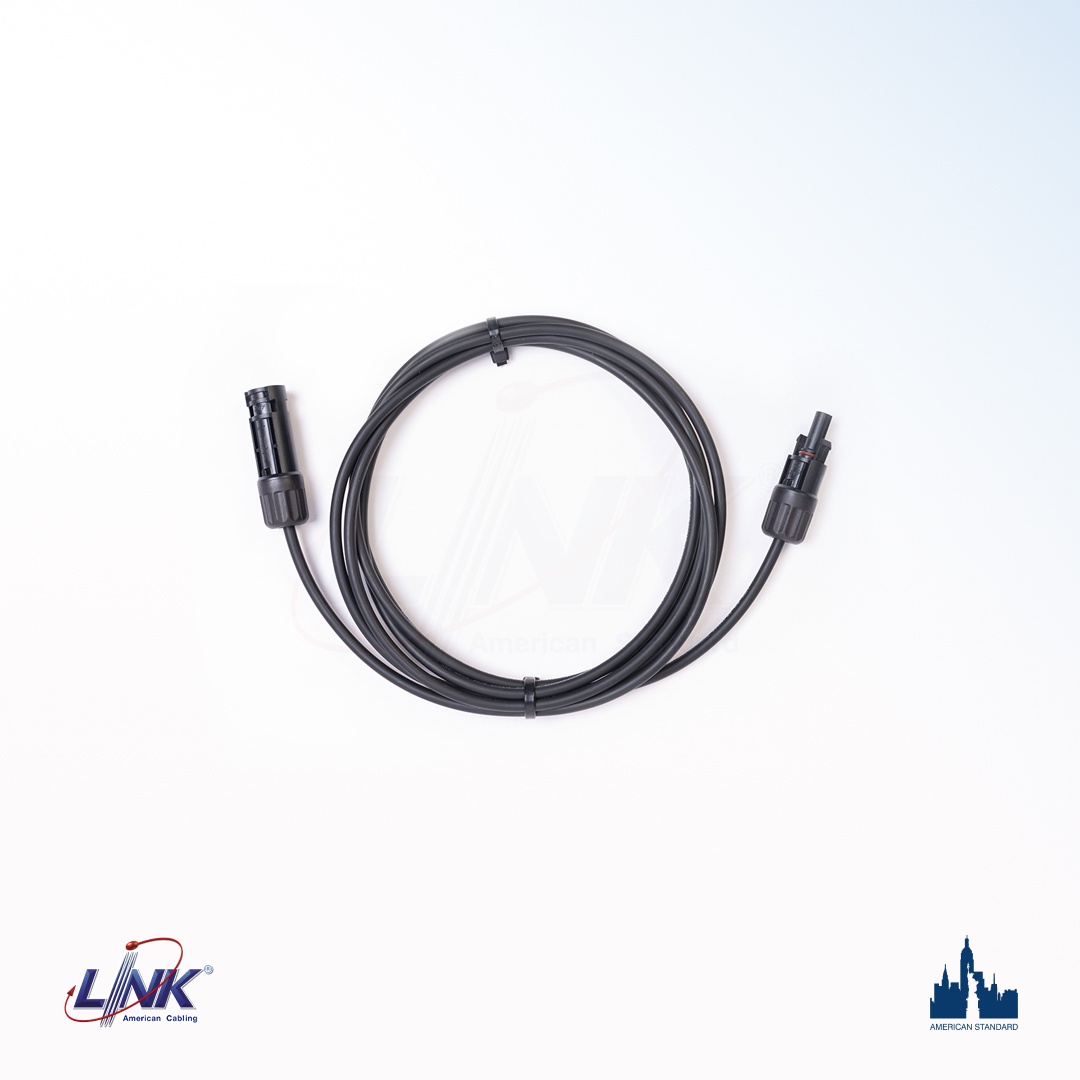

LINK Patch Cord Solar Cable with MC4 connector covers the general requirements for photovoltaic cable used for outdoor and indoor installation and is suitable for photovoltaic power systems. Both ends of the cable shall have an MC4 connector with no need for terminal processing exceeding IEC/EN 62852 with UV-resistant and waterproof protection class IP68. The outer jacket is made from electron beam XLPE with FR-LSZH to reduce the amount of toxic smoke, UV resistance, and resistance against water. The cable is made of fine wire strands of tinned copper wires to reduce oxidation or corrosion, according to IEC62930/IEC 60228 Class5 and RoHS compliant. The appointed length is acceptable. Stable automatic lock system makes connectors open and close easily. The lock clip is specially designed to prevent personnel from unlocking by hand.

•        IEC 62930:2017
•        EN 50618:2014
•        IEC 60228 Class 5
•        DIN VDE 0295 Class 5
•        IEC 62852:2014
•        EN 62852:2015
•        UL 6703
•        TÜV Approvals
•        RoHS compliant
