Shield CAT 6A In-Line COUPLER, (Usable for Patch Panel)

PRODUCTS
US-4007SIL

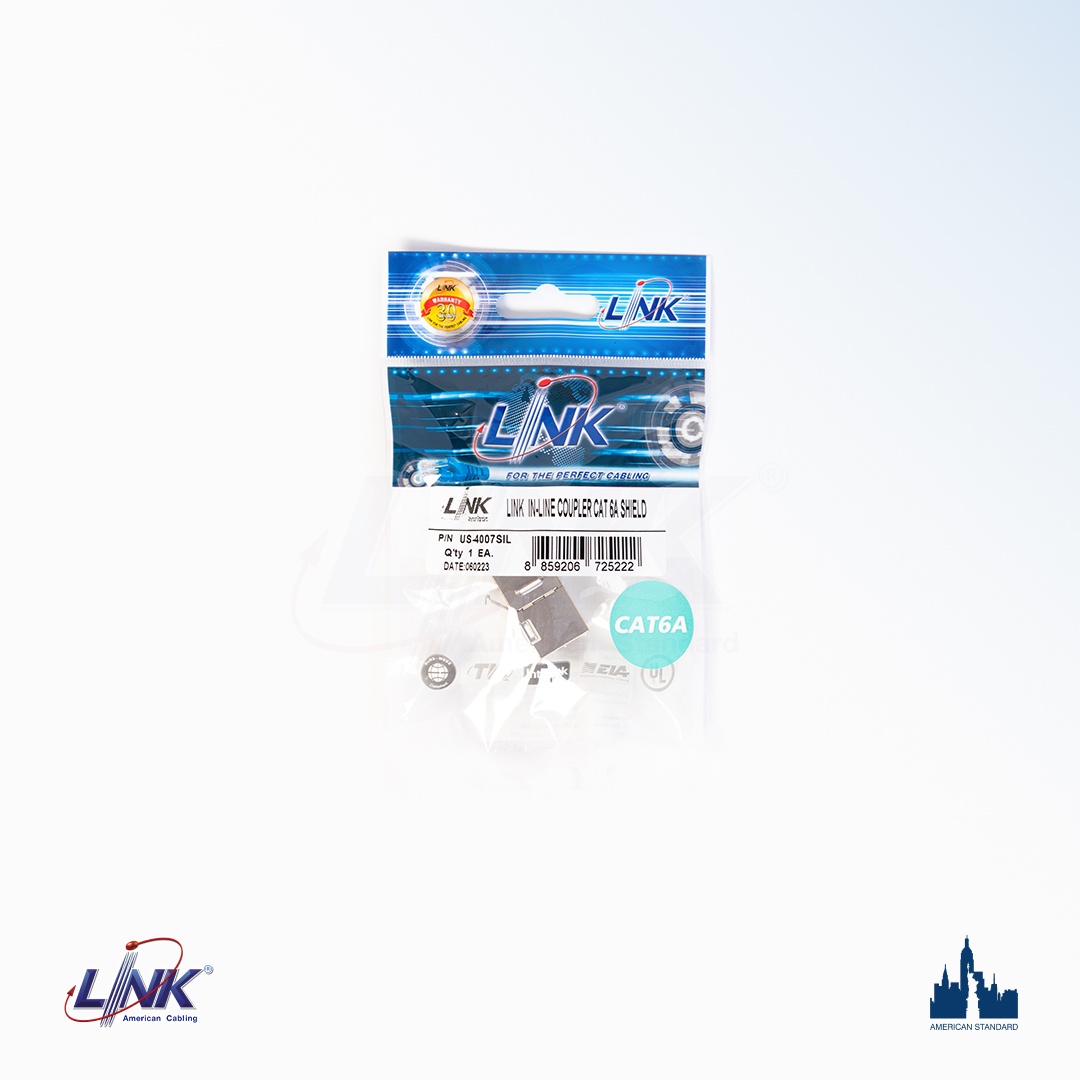

Shield CAT 6A In-Line COUPLER, (Usable for Patch Panel)
Copy to clipboard
Scope of Application

LINK Shield CAT 6A In-Line COUPLER provides a 180° RJ45 jack-to-jack splice and complies with ISO/IEC 11801 Class EA and ANSI/TIA-568.2-D requirements for category 6A performance. The shield coupler is available in eight-position contact RJ45 style. It supports two patterns of T568A/B (Universal color pattern), which allows a simple operation with horizontal cables, which can easily be extended, and broken cables can be coupled with laying a new complete cable segment. The couplers utilize printed circuit board (PCB) technology to balance signal transmission of insertion loss. Available to use with Unload patch panel for easy installation

Technical Standard

• ANSI/TIA-568.2-D Category 6A
 • ANSI/TIA-568-C.2 Category 6A
 • ISO/IEC 11801:2017 class EA
 • UL 1863
 • IEC 60512-27-100
 • RoHS Compliant
