Product | LAN (UTP) System | CAT 6A Super XG LAN Cabling |

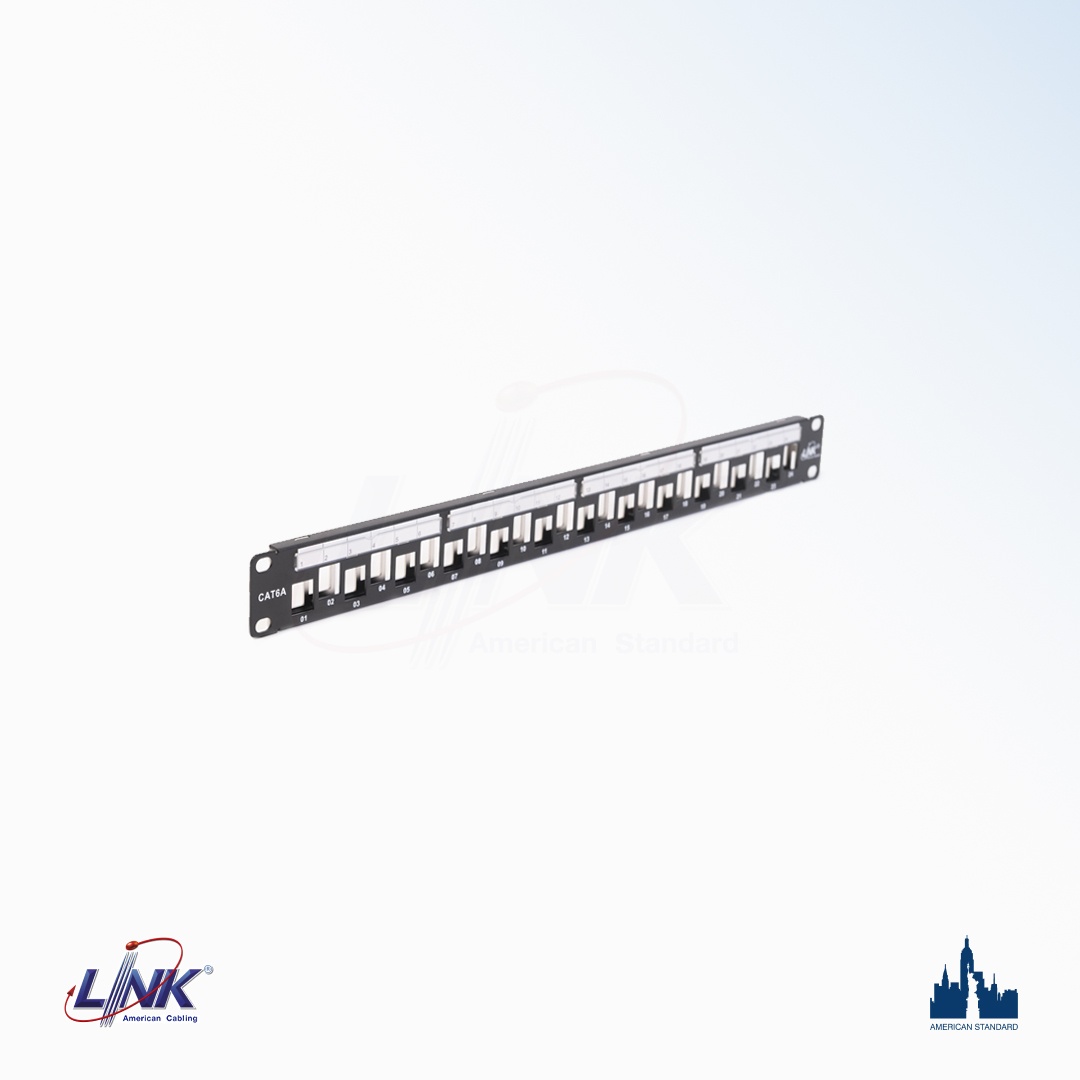

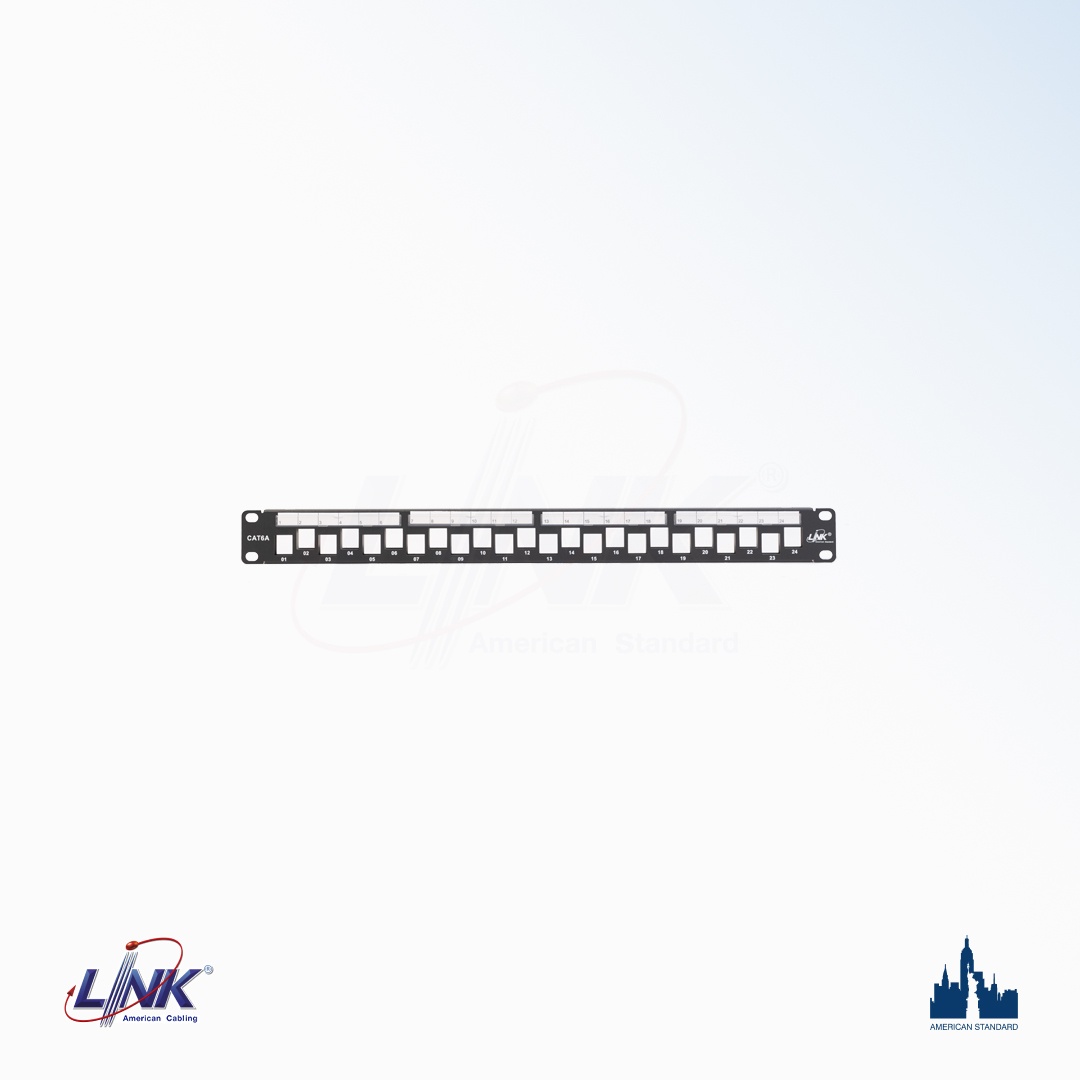

Shield CAT 6A 24 Port, Auto Shutter w/Cable Management (Staggered)

PRODUCTS
US-3324S
Shield CAT 6A 24 Port, Auto Shutter w/Cable Management (Staggered)
US-3324S
Copy to clipboard
Scope of Application

LINK Shield Category 6A patch panel compliant ISO/IEC 11801 Class EA and ANSI/TIA-568.2-D requirements for category 6A performance. The panel is steel with black powder coating with LINK logo on the front. Design new version of unloaded. Staggered design on the rj45 port for reducing alien crosstalk and can be protect of dust by auto shutter for long life guaranteed. Knock down management bar can be separate from panel with folding bracket. To complete cable tie and a set of M6 cage nut. Included shielded CAT6A RJ45 modular jack tool free with auto shutter (US-1034TFAS x 24pcs).

Technical Standard

•        ANSI/TIA-568.2-D Category 6A
•        ANSI/TIA-568-C.2 Category 6A
•        ISO/IEC 11801:2017 class EA
•        EN 50173-1 Category 6A
•        UL 1863
•        IEC 60603-7, IEC 60512-27-100
•        UL and ETL Verified to Category 6
•        RoHS Compliant
•        Approvals UL listed file no. E196947
•        Intertek Certification no. 102087582CRT-001
