Product | LAN (UTP) System | CAT 6A Super XG LAN Cabling |

CAT 6A UTP SUPER-S RJ45 JACK, FREE DIRECTION

PRODUCTS
US-1026A
CAT 6A UTP SUPER-S RJ45 JACK, FREE DIRECTION
US-1026A
Copy to clipboard
Scope of Application

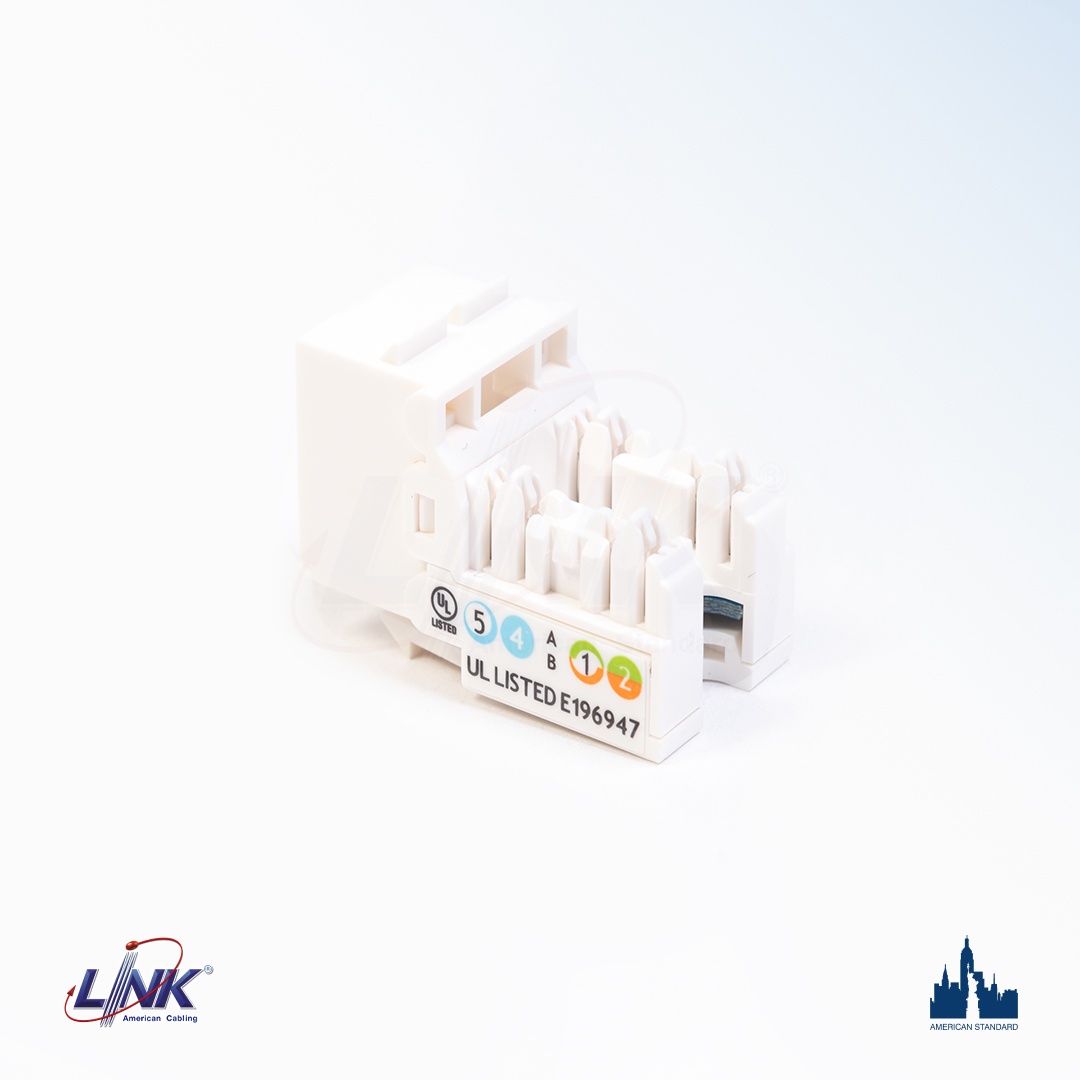

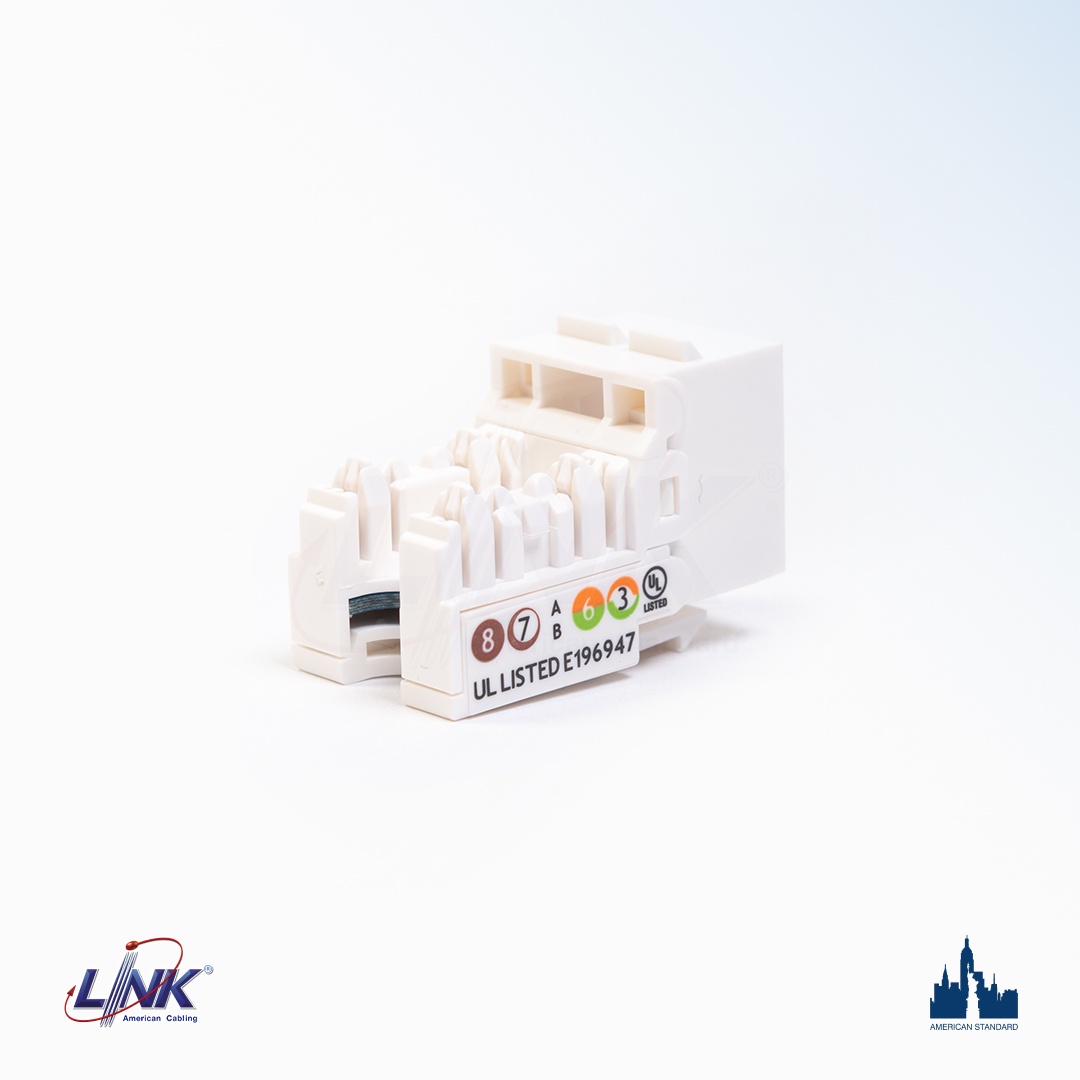

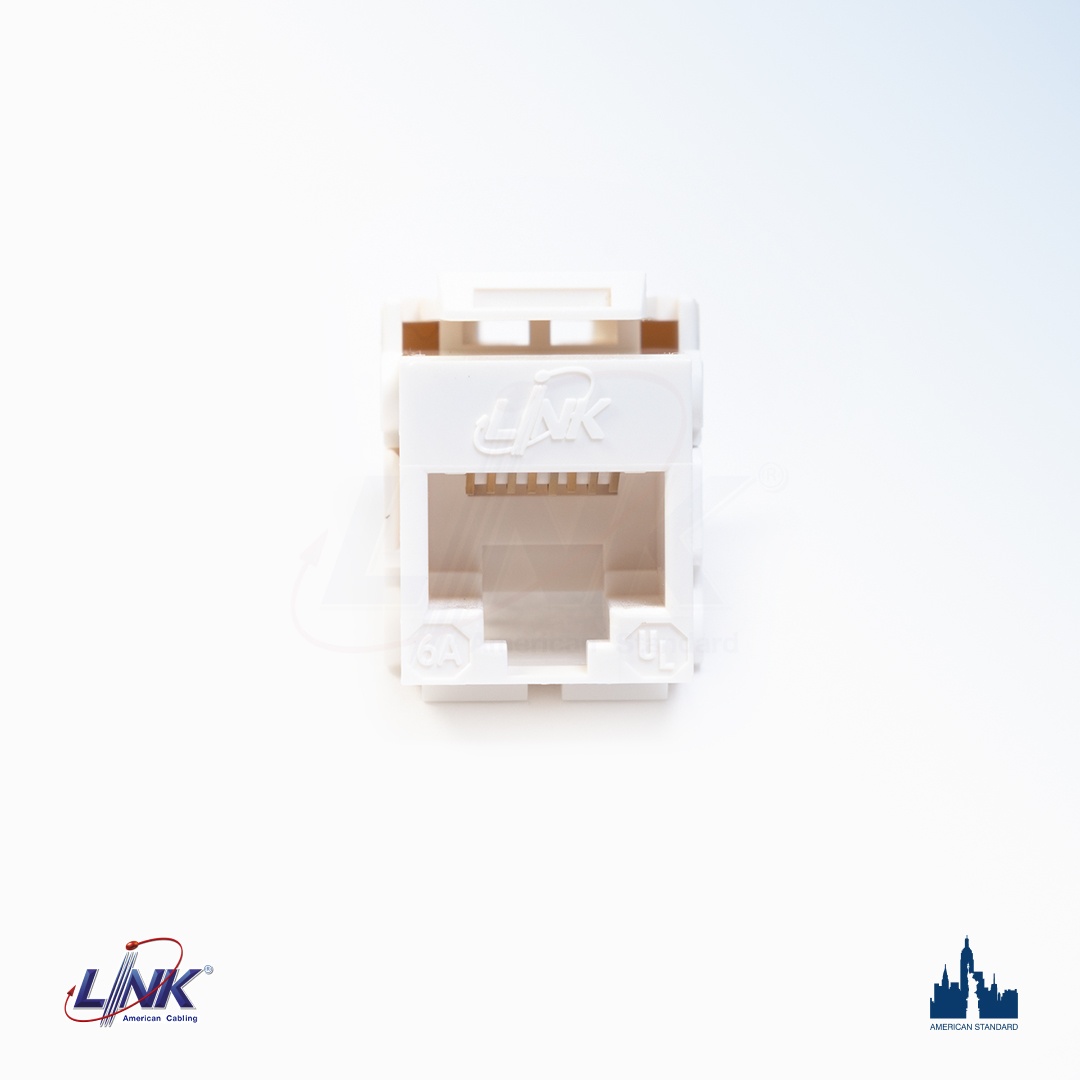

CAT6A RJ45 modular jack has showed the embossed LINK logo on the front. The jack compliant ISO/IEC 11801:2017 Class EA and ANSI/TIA-568.2-E requirements for category 6A performance. Impedance matching technique for improving Return Loss and compensation methodology to counteract Near End Crosstalk & Far End Crosstalk. Free direction allows free cable-routing direction at limited depth. Small form factor (Slim type) design with transparent wire cap increases visual inspection of terminate wires. The Jacks accept 24-22 AWG solid & stranded conductor and combine two wiring of T568A/B (Universal color pattern) for easy installation. The RJ45 modular jack shall be factory assembled with high quality control and 100% test.

Technical Standard

  • ANSI/TIA-568.2-E Category 6A

  • ANSI/TIA-568.2-D Category 6A

  • ISO/IEC 11801:2017 class EA

  • EN 50173-1 Category 6A

  • UL 1863

  • IEC 60603-7, IEC 60512-27-100

  • RoHS Compliant

  • Approvals UL listed no. E196947
