CAT 6A UTP PATCH PANEL 24 Port w/Cable Management

PRODUCTS
US-3226A
CAT 6A UTP PATCH PANEL 24 Port w/Cable Management
US-3226A
Copy to clipboard
Scope of Application

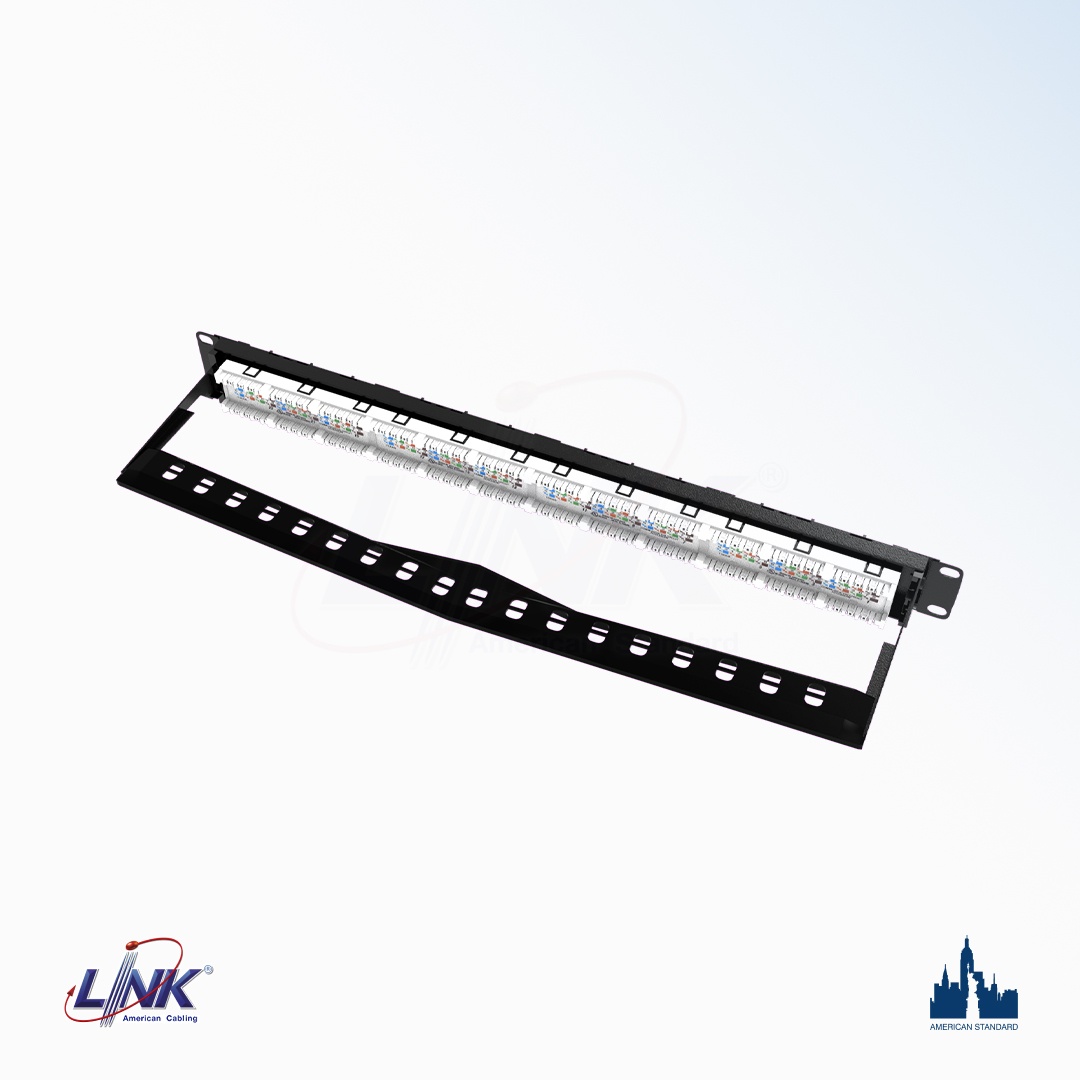

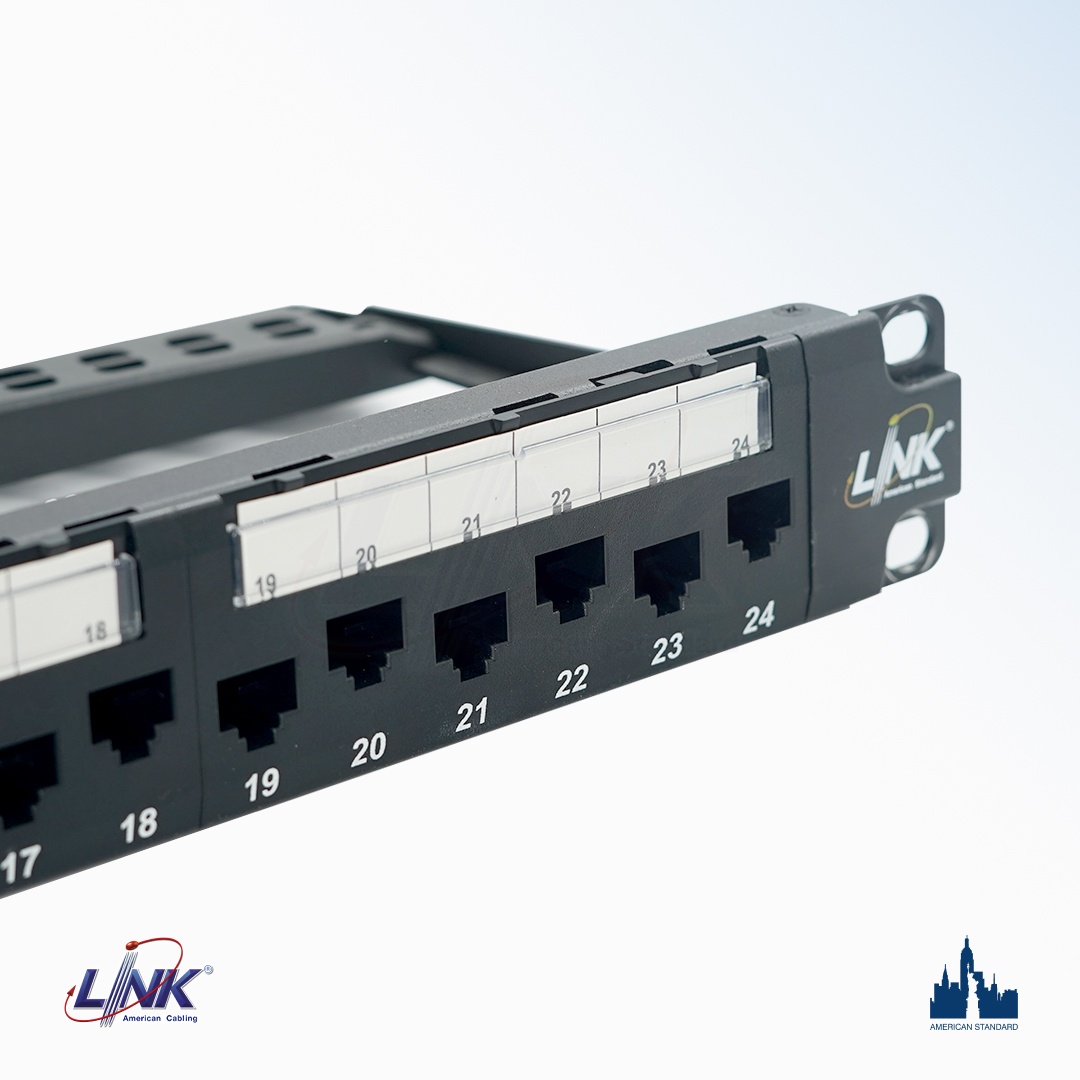

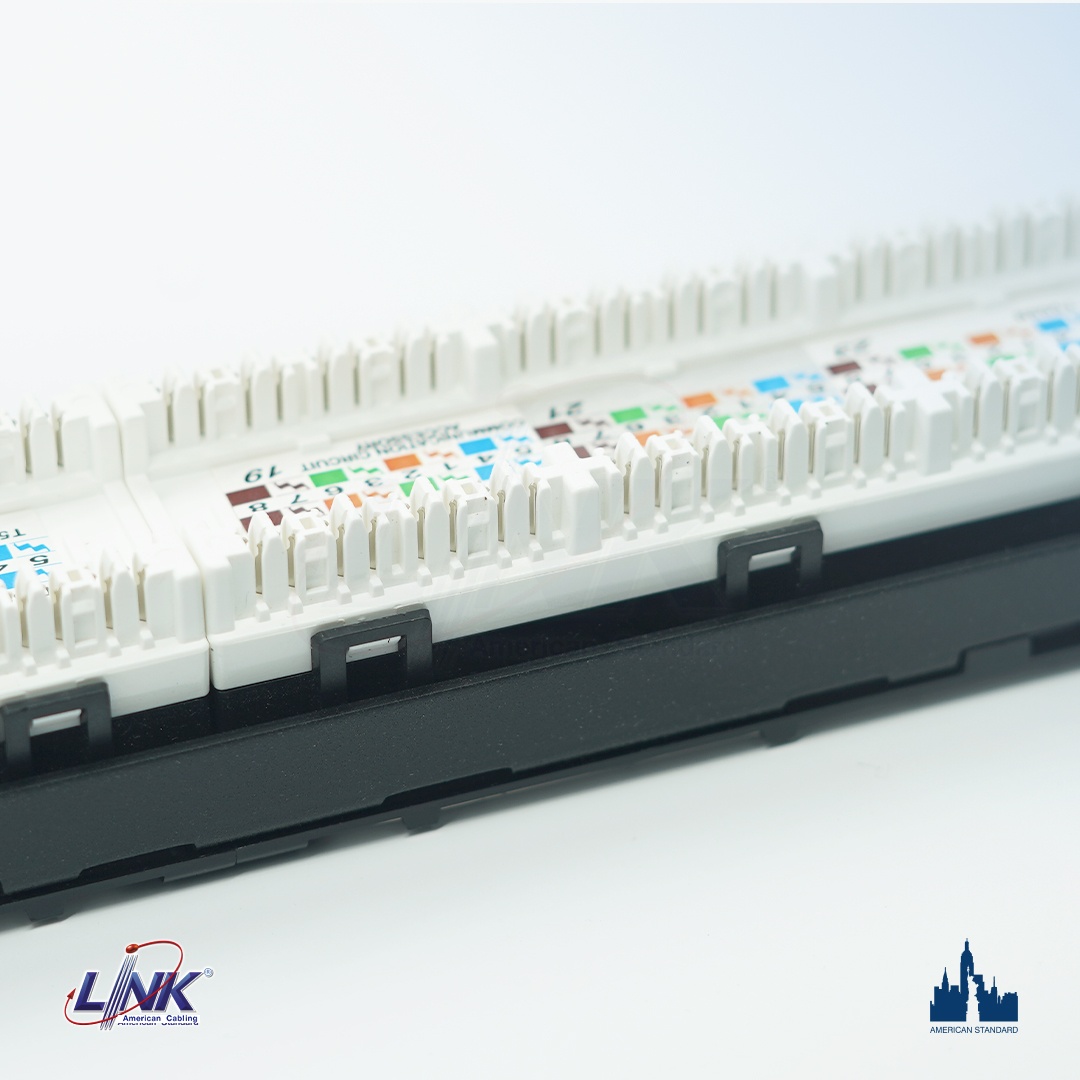

CAT 6A UTP patch panel compliant ISO/IEC 11801 Class EA and ANSI/TIA-568.2-E requirements for category 6A performance. The panel is steel with black powder coating with LINK logo on the front. The patch panel are utilized a printed circuit board (PCB) technology to balanced signal transmission of insertion loss and crosstalk from 1 to 500MHz. The staggered design on the rj45 port for helps to reducing Alien Crosstalk. Unique Pyramid design IDC row with cover is convenient for installing stiff & larger diameter Cat6A UTP cable. Cable management allows individual to be fixed with cable tie each cable. Support dual 110IDC termination block with durable. To complete cable tie and a set of M6 cage nut.

Technical Standard
  • ANSI/TIA-568.2-E Category 6A
  • ANSI/TIA-568.2-D Category 6A
  • ISO/IEC 11801:2017 class EA
  • EN 50173-1 Category 6A
  • UL 1863
  • IEC 60603-7, IEC 60512-27-100
  • RoHS Compliant
  • Approvals UL listed file no. E196947
