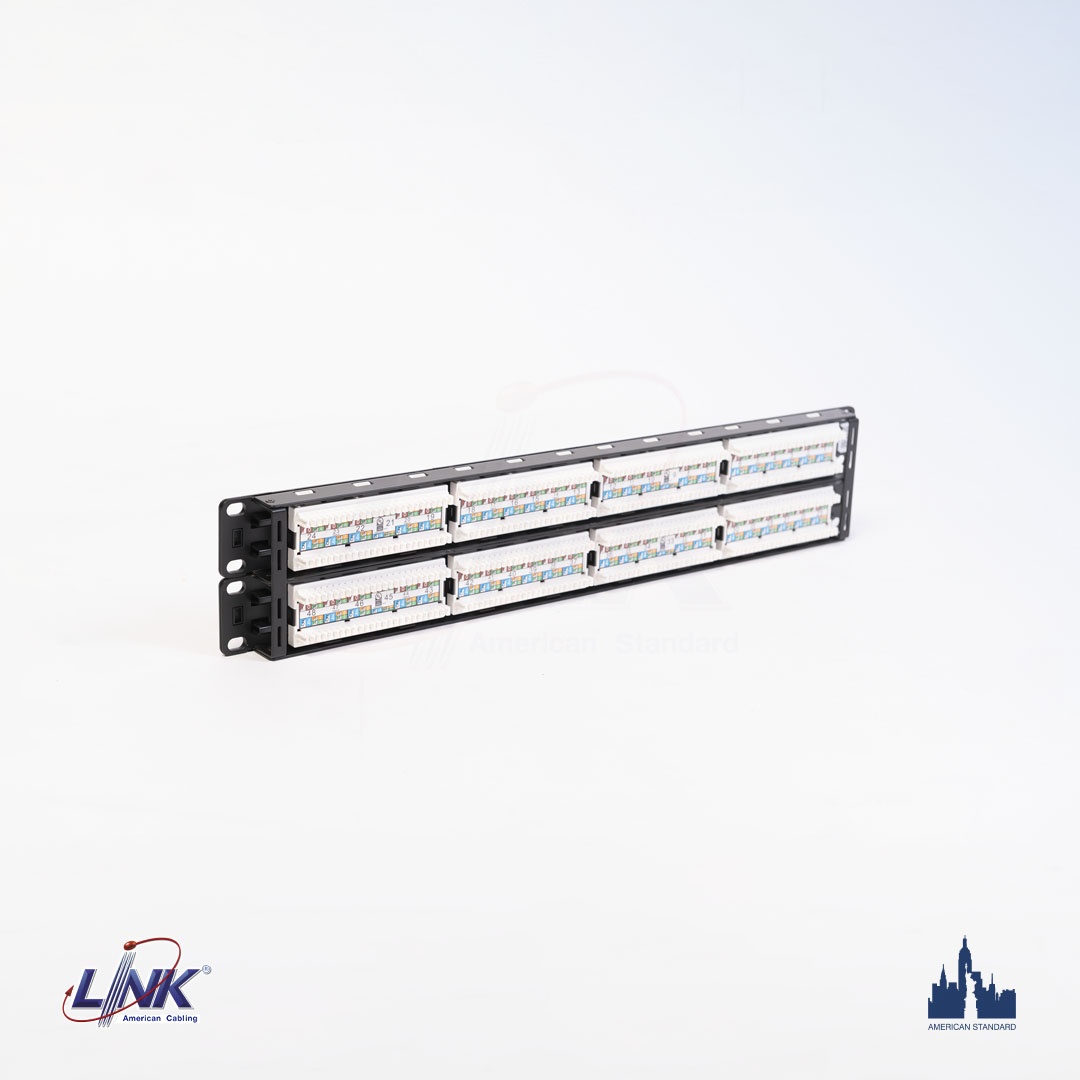

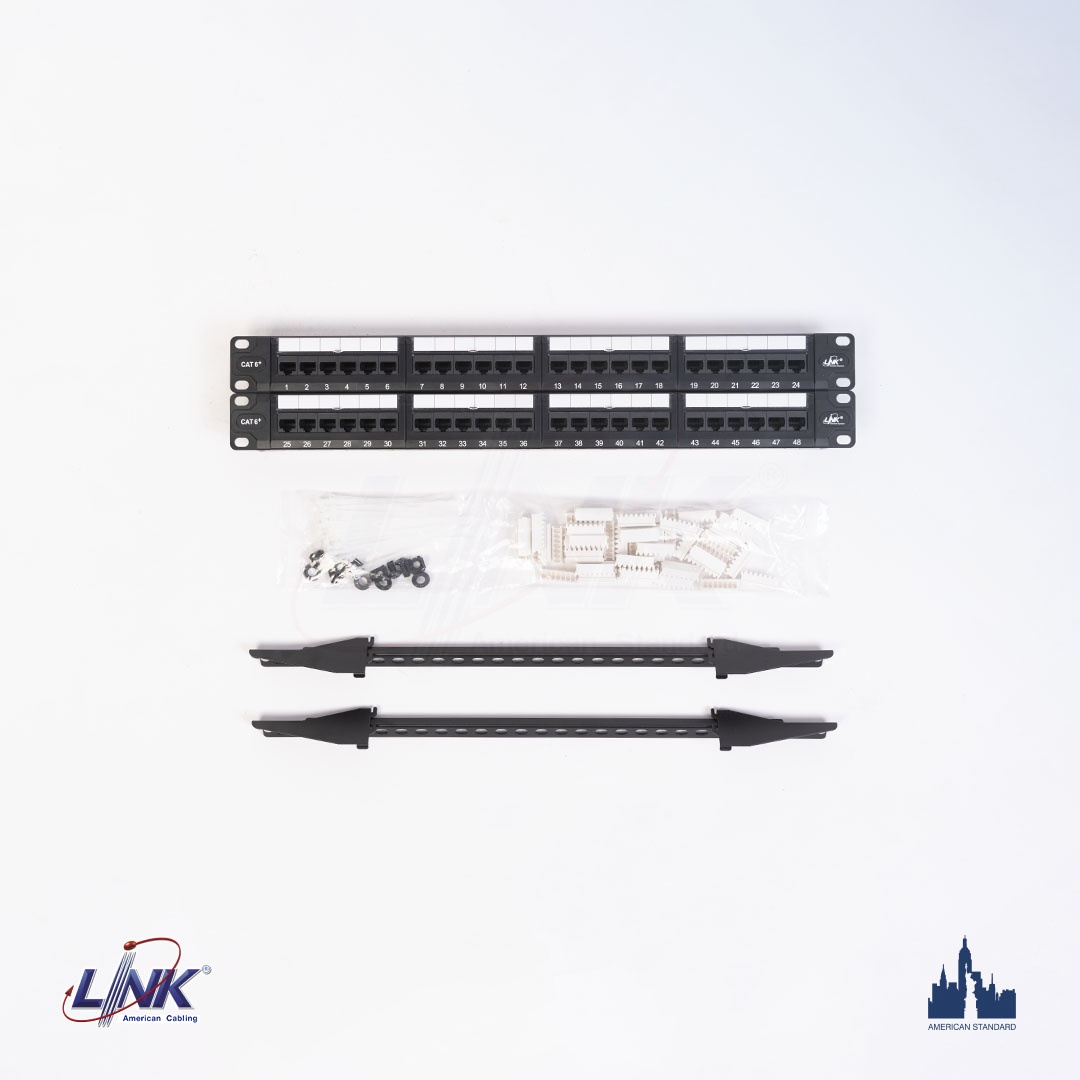

New designed for high product quality. LINK Category 6 patch panel compliant ISO/IEC 11801 and ANSI/TIA-568.2-D requirements for category 6 performance. The panel is steel light weight with black powder coating with LINK logo on the front. The patch panel are utilized a printed circuit board (PCB) technology to balanced signal transmission of insertion loss and crosstalk from 1 to 250MHz. Design new version of Push Flip(open-close) Label with transparent cover and increase high protection after installation by dust cover cap. Knock down management bar can be separated from panel with folding brackets. Support dual 110 IDC and 45°KRONE termination block with durable. The patch panel supplies with management bar and cable tie in colorful box (nut and screw included).

•        ANSI/TIA-568.2-D Category 6
•        ANSI/TIA-568-C.2 Category 6
•        ISO/IEC 11801:2017 class E
•        EN 50173-1 Category 6
•        UL 1863
•        IEC 60603-7, FCC Part 68 Subpart F
•        UL and ETL Verified to Category 6
•        RoHS Compliant
•        Approvals UL listed file no. E196947
•        Intertek Certification no. 104047595CRT
