Shielded CAT 6 RJ45 Modular Jack (New Advanced)

PRODUCTS
US-1014A

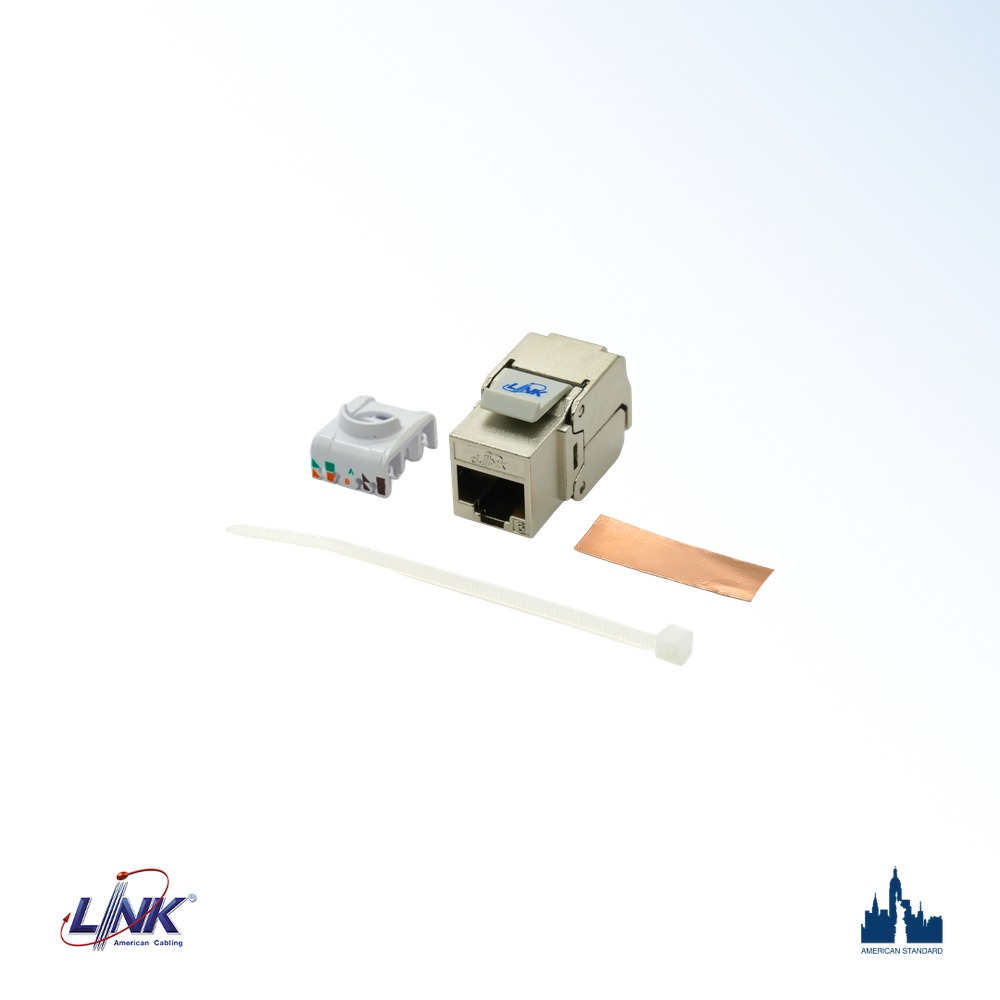

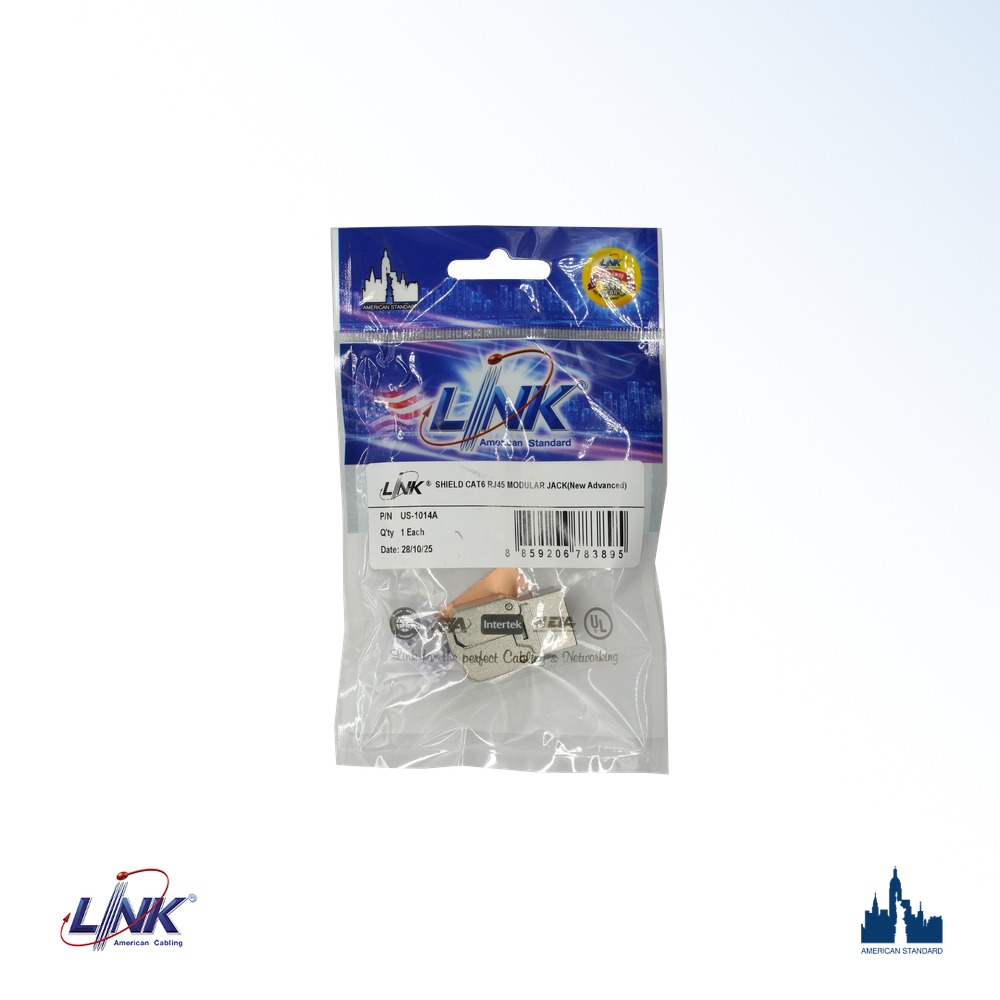

Shielded CAT 6 RJ45 Modular Jack (New Advanced)
US-1014A
Copy to clipboard
Scope of Application

LINK Shielded CAT6 RJ45 modular jack has showed the embossed LINK logo on the front. The jack compliant ISO/IEC 11801:2017 Class E and ANSI/TIA-568.2-E requirements for category 6 performance The modular jack are utilized a printed circuit board (PCB) technology to balanced signal transmission of insertion loss and crosstalk from 1 to 250MHz. The Jacks accept 26-22 AWG solid & stranded conductor and combine two wiring of T568A/B (Universal color pattern) for easy installation. Tool free cover cap is design for easy to install. The RJ45 modular jack shall be factory assembled with high quality control and 100% test.

Technical Standard

  • ANSI/TIA-568.2-E Category 6

  • ANSI/TIA-568.2-D Category 6

  • ANSI/TIA-568-C.2 Category 6

  • ISO/IEC 11801:2017 class E

  • EN 50173-1 Category 6

  • UL 1863

  • IEC 60603-7, FCC Part 68 Subpart F

  • RoHS Compliant
