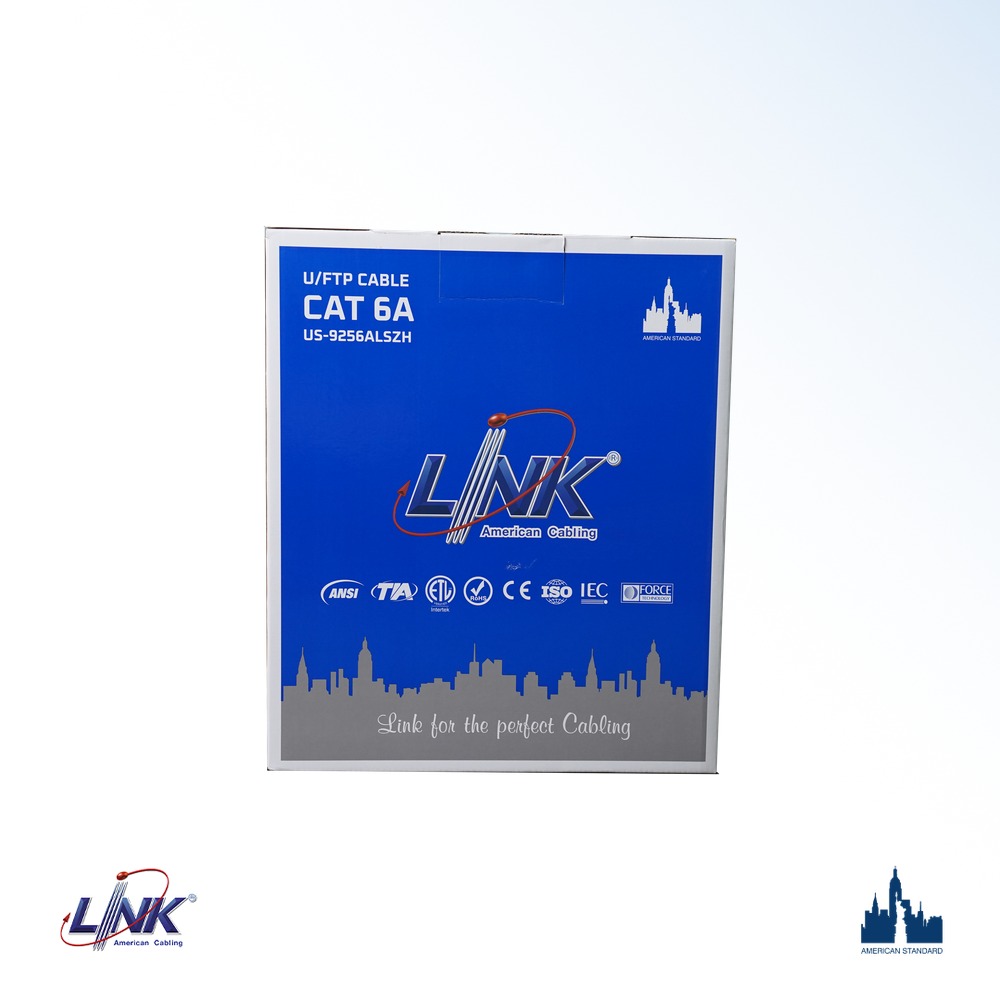

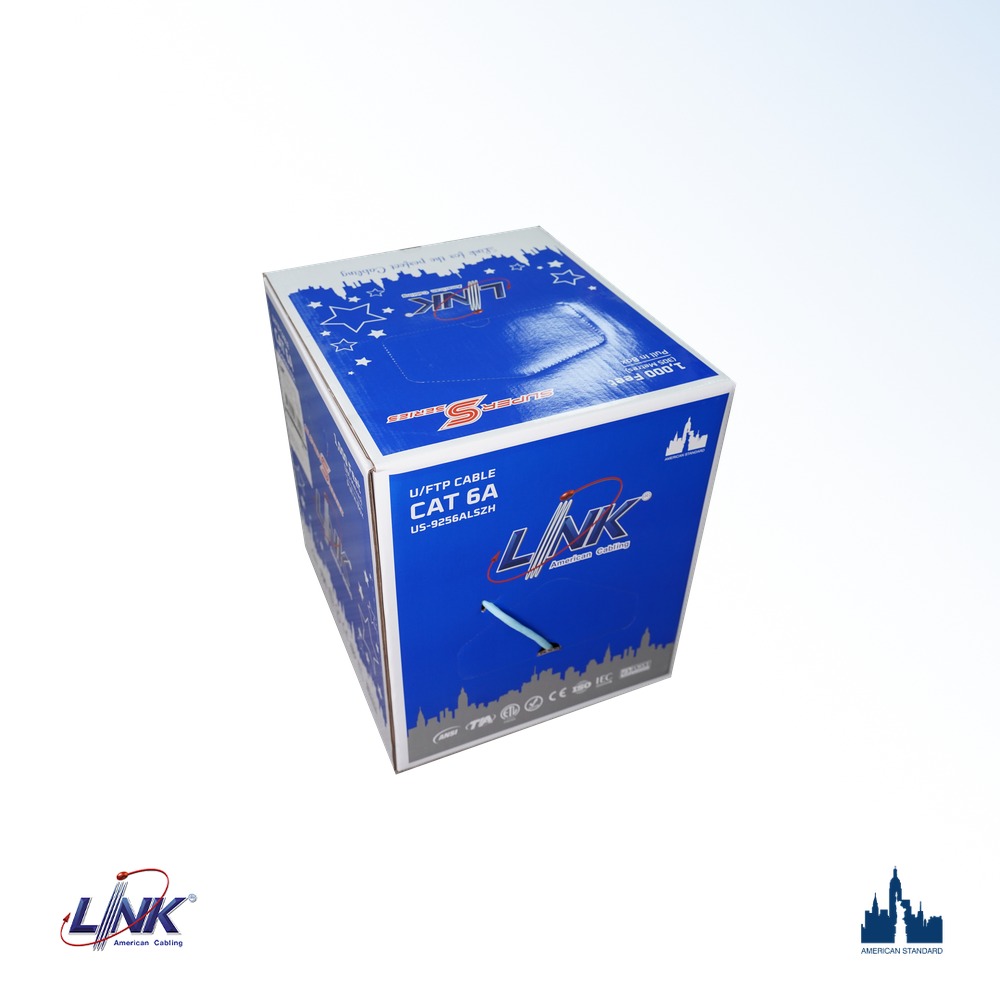

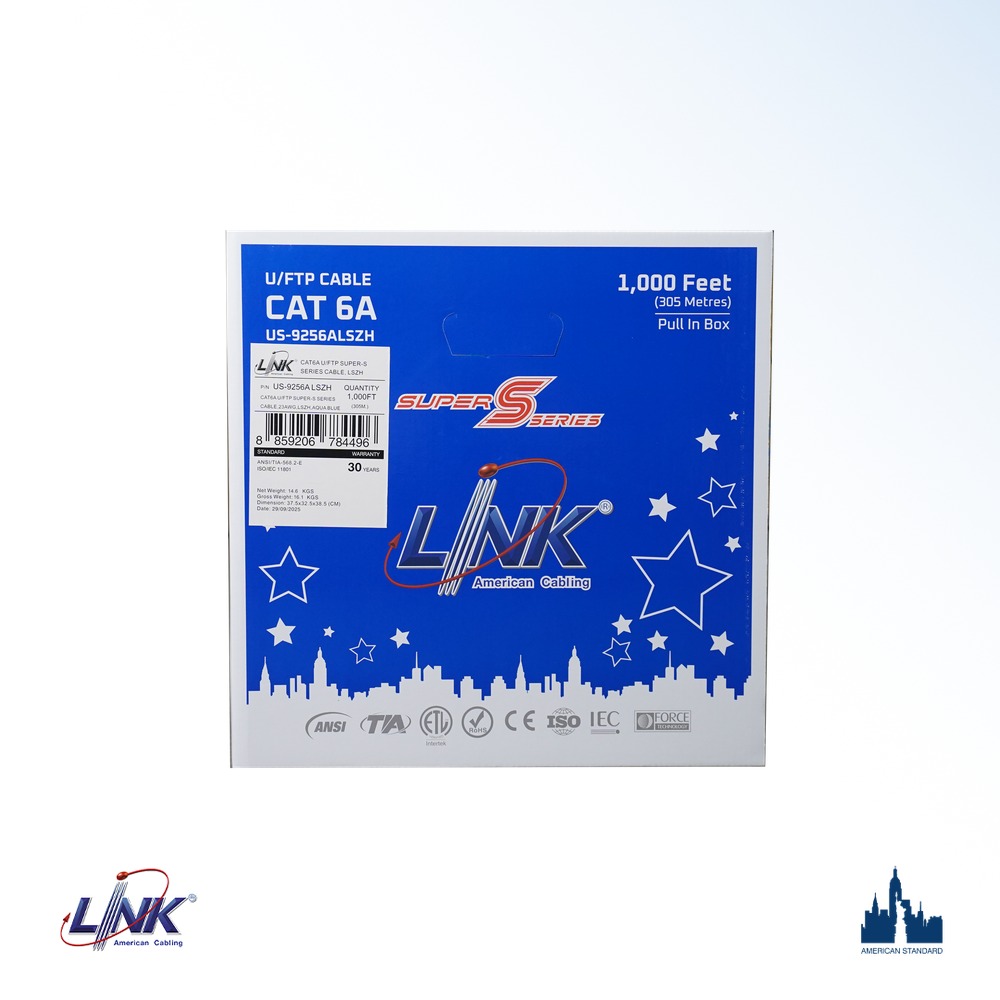

CAT6A U/FTP SUPER-S SERIES CABLE, 23AWG, LSZH

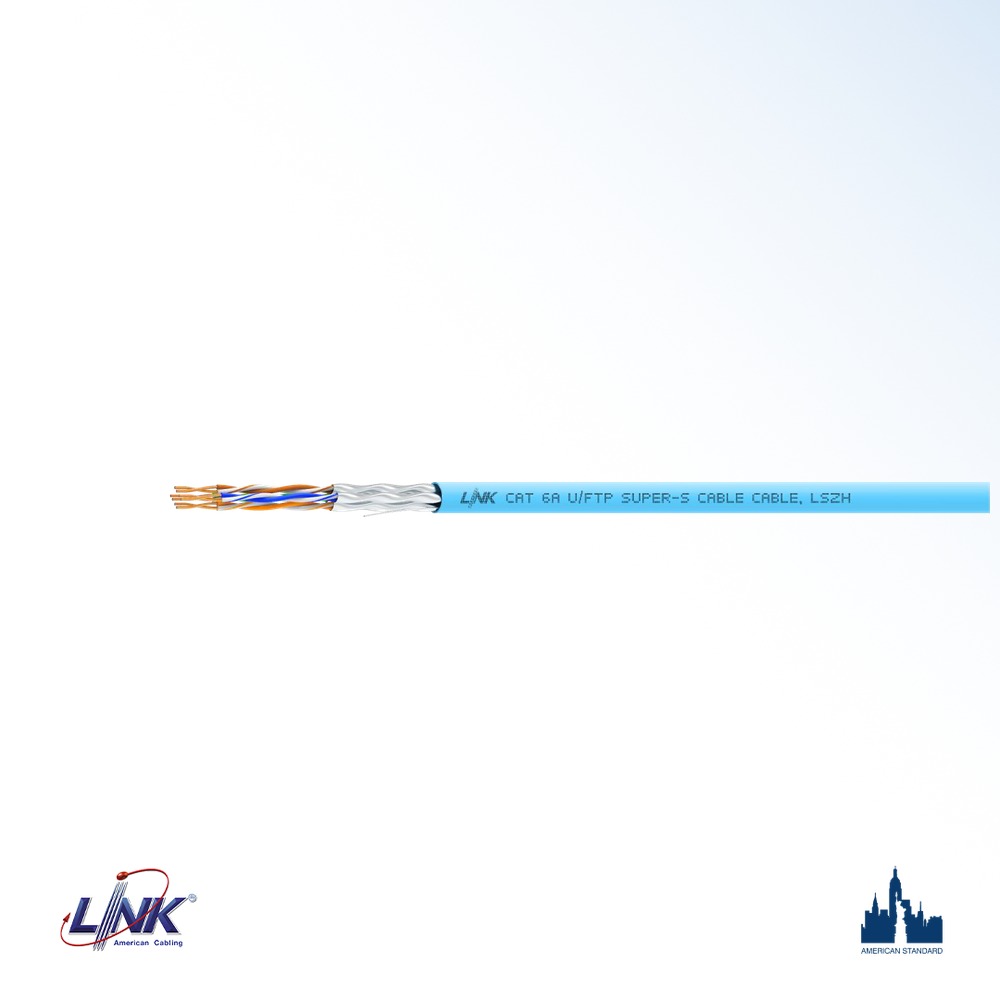

CAT6A SUPER-S Series (Smart, Small & Save) complies with ISO/IEC 11801 Class EA and ANSI/TIA-568.2-E requirements for Category 6A performance. The cable features individually shielded pairs to reduce alien crosstalk and enhance performance. Its small diameter reduces pathway space, allows for a smaller bending radius, and makes installation easier. The outer jacket is made from a flame-retardant LSZH (Low Smoke Zero Halogen) compound, which reduces the emission of toxic smoke and corrosive gases during combustion—enhancing user safety and improving conditions for firefighting operations. These cables are characterized up to 500 MHz, Powersum NEXT tested, and RoHS certified
- ANSI/TIA-568.2-E Category 6A
- ANSI/TIA-568.2-D Category 6A
- ANSI/TIA-568-C.2 Category 6A
- ISO/IEC 11801:2017 class EA
- EN 50173-1 Category 6A
- EN 50288-10-1
- IEC 61156-5, IEC 60332-1
- IEC 60754-1, IEC 60754-2
- IEC 61034-1, IEC 61034-2
- Certify to fire class -s1, d2, a1
- UL 444/NEC 800
- CSA 22.2 No.214
- RoHS Compliant
