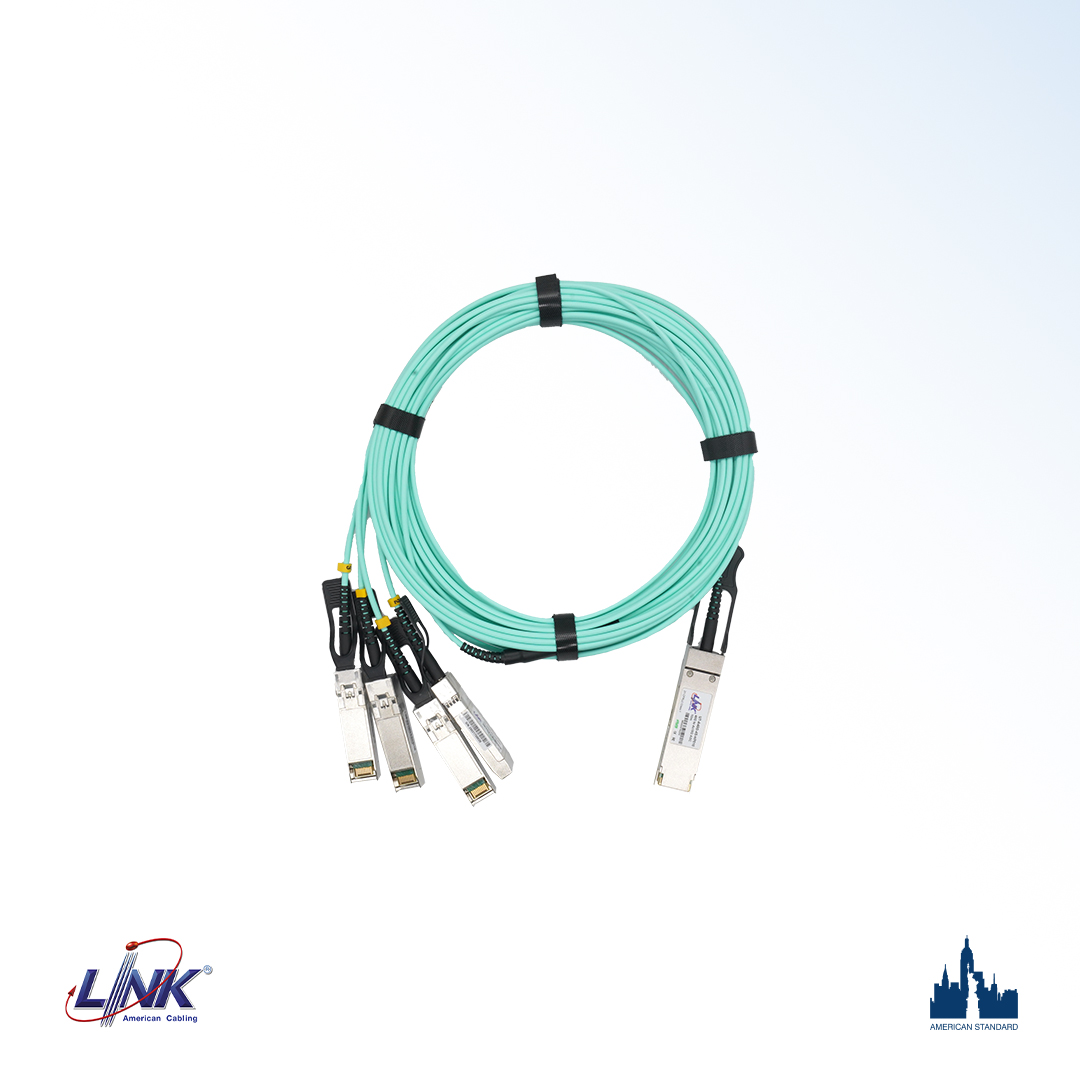

LINK 40G QSFP+ AOC are high performance, cost effective I/O solutions for 40G Ethernet applications. AOC is a multi-mode optical fiber with a module attached to each end. It uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable.


40G QSFP+ AOC allow hardware manufactures to achieve high port density, configurability, stability and utilization at a cost-effective and flexible short-reach in the interconnect system. The high speed cable assemblies meet Ethernet standard requirements for performance and reliability.


AOC cabling solutions offer for short-range transmissions and to be mostly used to interconnect between two devices for switches/servers to switches within or between different racks inside data center.

• Hot-Pluggable and support data rate up to 40Gbps
• Supporting 40Gbps to 4x10Gbps
• Compliant with IEEE 802.3ba 40 Gigabit Ethernet and IEEE 802.3ae 10 Gigabit Ethernet
• Compliant with Fibre Channel standard
• Compliant with QSFP+ and SFP+ MSA
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Compliant with SFF-8436, SFF-8431, SFF-8432
• All-metal housing for superior EMI performance
• Low power consumption
• Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Cost effective QSFP+, SFP+ solution, enables higher port densities and greater bandwidth
• RoHS Compliant
