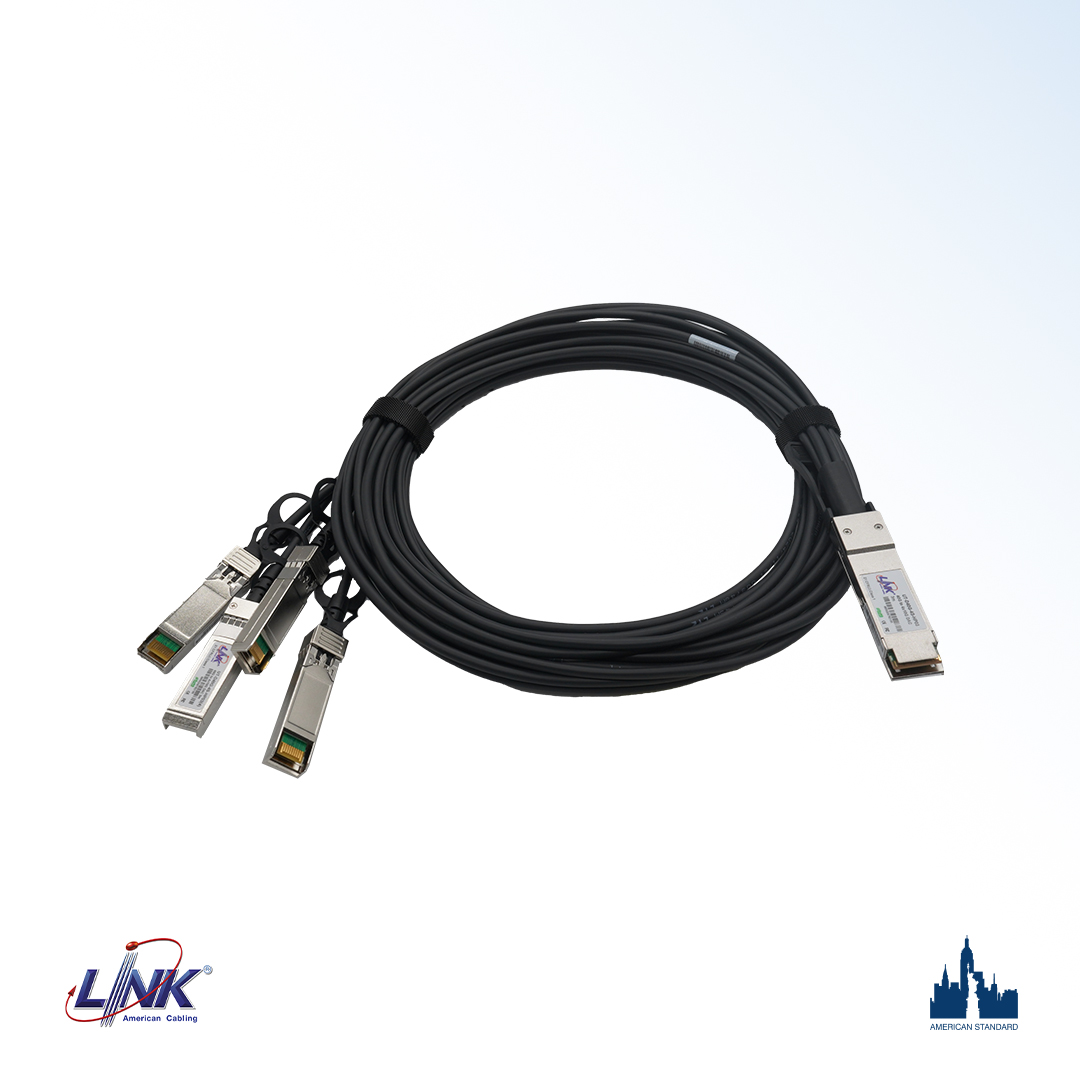

LINK 40G QSFP+ DAC are high performance, cost effective I/O solutions for 40G Ethernet applications. DAC cables are made from twinax copper and be terminated with modules on both ends that provide an electrical connection directly into active equipment.


40G QSFP+ DAC allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet Ethernet standard requirements for performance and reliability.


40G DAC cabling solutions offer for short-range transmissions, to provide connectivity up to 5m and suitable for connecting switches/servers to switches within or adjacent to the rack.

• Hot-Pluggable and support data rate up to 40Gbps
• Supporting 40Gbps to 4x10Gbps
• Compliant with IEEE 802.3ba 40Gigabit Ethernet and IEEE 802.3ae 10Gigabit Ethernet
• 4-Channel Full-Duplex Copper Cable Transceiver
• Compliant with QSFP+ and SFP+ MSA
• Compliant with SFF-8436, SFF-8431, SFF-8432
• All-metal housing for superior EMI performance
• Low power consumption
• Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Cost effective QSFP+, SFP+ solution, enables higher port densities and greater bandwidth
• RoHS Compliant
