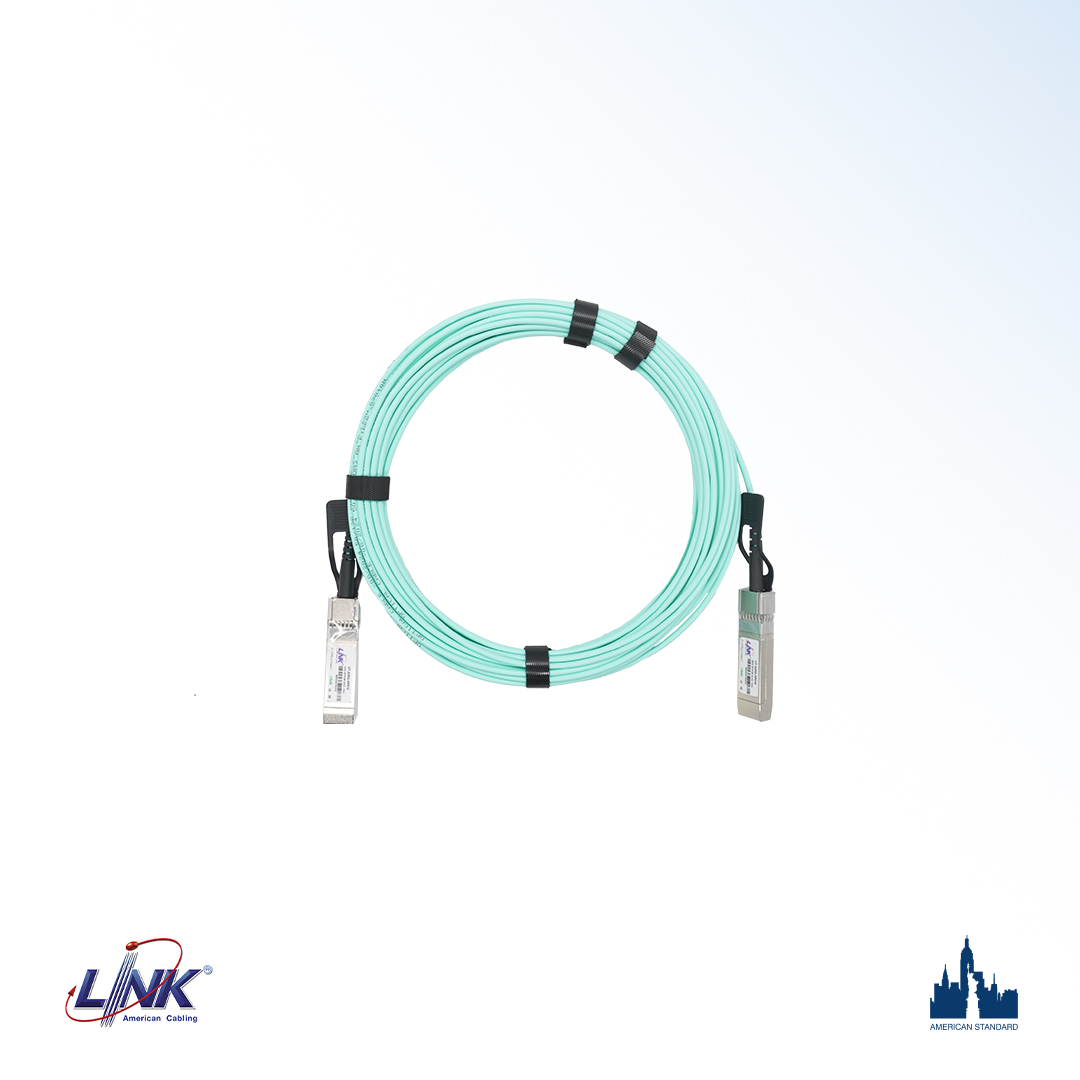

LINK 25G SFP28 AOC are high performance, cost effective I/O solutions for 25G Ethernet applications. AOC is a multi-mode optical fiber with a module attached to each end. It uses electrical-to-optical conversion on the cable ends to improve speed and distance performance of the cable.


25G SFP28 AOC allow hardware manufactures to achieve high port density, configurability, stability and utilization at a cost-effective and flexible short-reach in the interconnect system. The high speed cable assemblies meet Ethernet standard requirements for performance and reliability.


AOC cabling solutions offer for short-range transmissions and to be mostly used to interconnect between two devices for switches/servers to switches within or between different racks inside data center.

• Hot-Pluggable and support data rate up to 25Gbps
• Compliant with IEEE 25Gigabit Ethernet standard
• Compliant with Fibre Channel standard
• Compliant with SFP28 Multi Source Agreement (MSA)
• 850nm VCSEL transmitter
• PIN photo-detector receiver
• Compliant with SFF-8431 and SFF-8432
• All-metal housing for superior EMI performance
• Low power consumption
• Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Cost effective SFP28 solution, enables higher port densities and greater bandwidth
• RoHS Compliant
