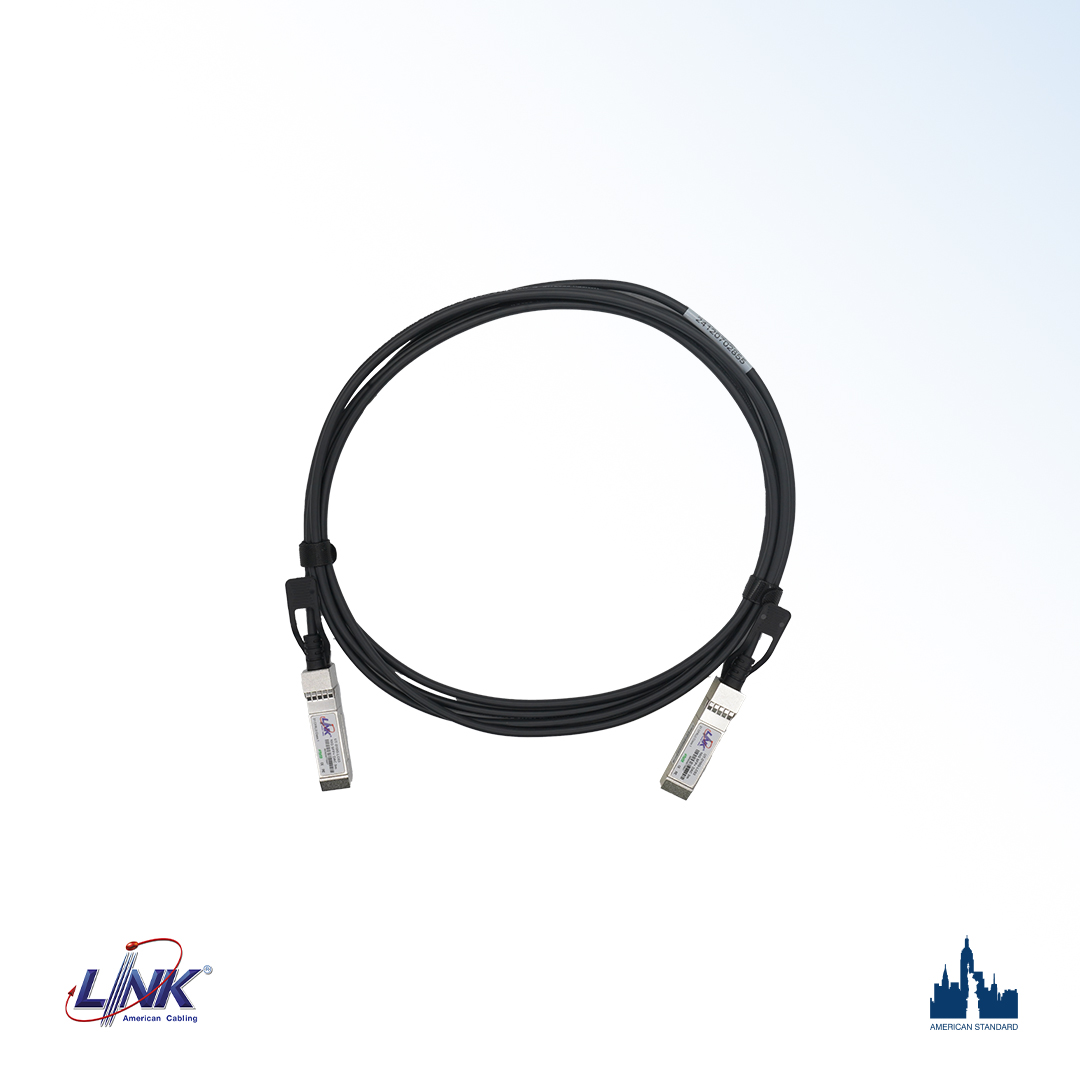

LINK 10G SFP+ DAC are high performance, cost effective I/O solutions for 10G Ethernet applications. DAC cables are made from twinax copper and be terminated with modules on both ends that provide an electrical connection directly into active equipment.


10G SFP+ DAC allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet Ethernet standard requirements for performance and reliability.


10G DAC cabling solutions offer for short-range transmissions, to provide connectivity up to 7m and suitable for connecting switches/servers to switches within or adjacent to the rack.

• Hot-Pluggable and support data rate up to 10Gbps
• Compliant with IEEE802.3ae 10Gigabit Ethernet standard
• Compliant with Fibre Channel standard
• Compliant with SFP+ Multi Source Agreement (MSA)
• Compliant with SFF-8402, SFF-8431 and SFF-8432
• All-metal housing for superior EMI performance
• Low power consumption
• Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Cost effective SFP+ solution, enables higher port densities and greater bandwidth
• RoHS Compliant
