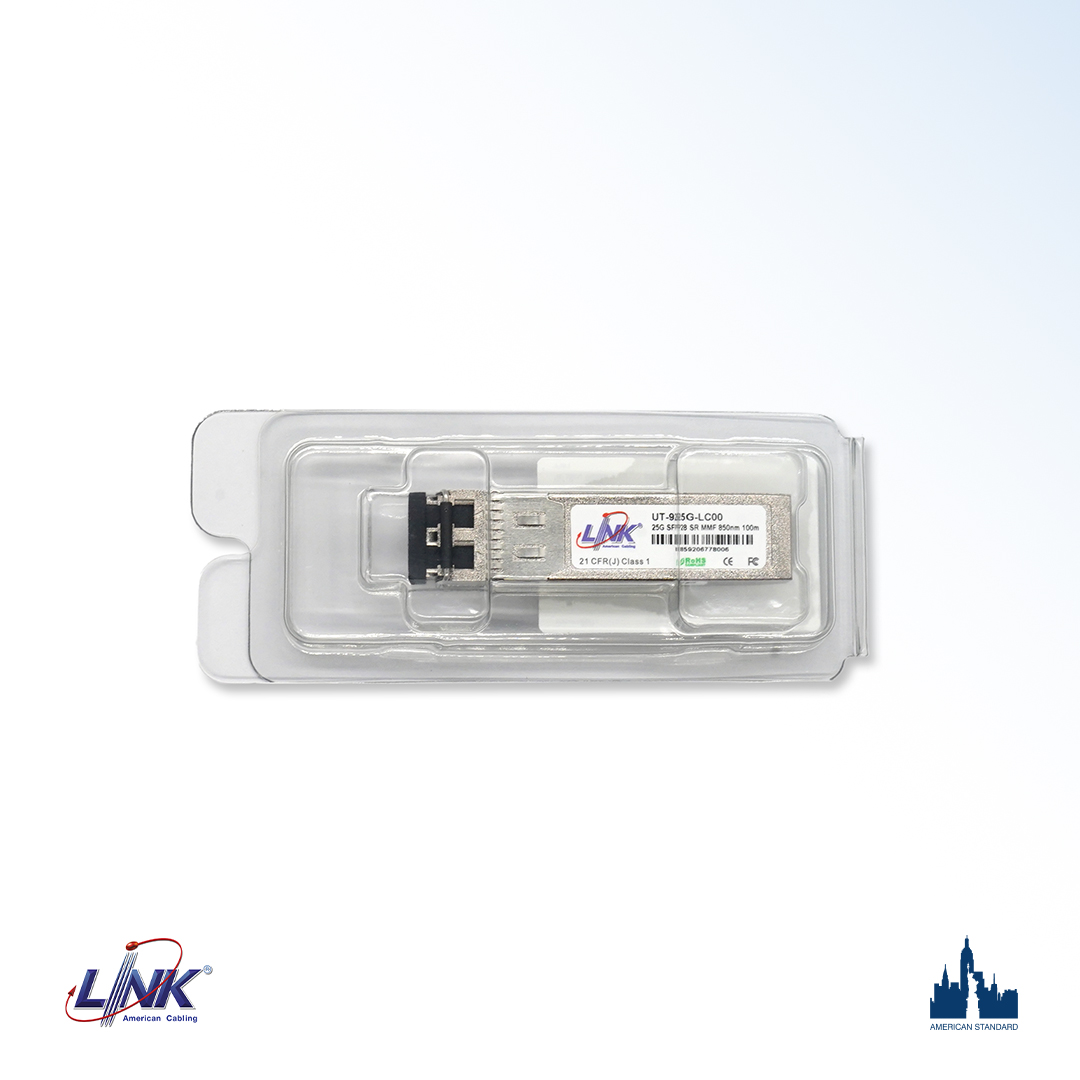

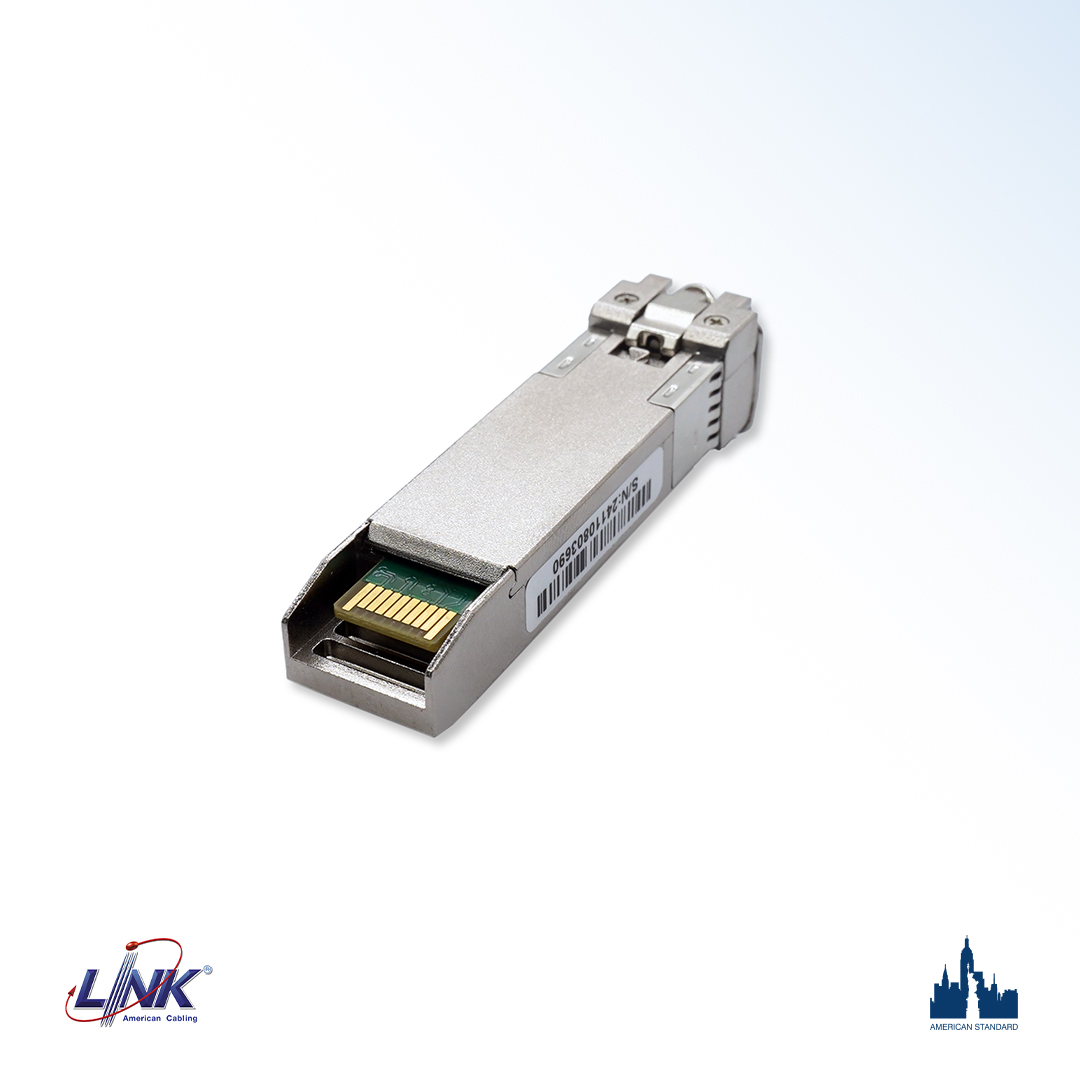

25G SFP28 SR MMF 850nm 100m

UT-925G-XX00
25G SFP28 SR MMF 850nm 100m
Copy to clipboard
Scope of Application

The LINK SFP+ transceivers are high performance, cost effective modules which is the best for all 25G network interface, The UT-925G series can install into Switch products with SFP28 interface and can be compatible with Cisco & other brands.


LINK 25G SFP28 transceivers provide extended connectivity up to 70m (OM3) or 100m (OM4) transmission distance with Multi-mode fiber (MM).


LINK SFP28 transceivers are a hot-pluggable (or hot-swappable). You can plug-in and out the transceiver to/from any SFP28 port without having to power down the network devices.

Technical Standard

• Hot-Pluggable and support data rate up to 25Gbps
• Compliant with 25GBASE 25Gigabit Ethernet standard
• Compliant with SFP28 Multi Source Agreement (MSA)
• 850nm VCSEL transmitter, PIN photo-detector
• Electrical interface compliant to SFF-8431 and SFF-8432
• Digital Diagnostic Monitoring Interface (DDMI) Capability
• Diagnostic Monitoring Interface to SFF-8472
• All-metal housing for superior EMI performance
• Class 1 laser and complies with EN 60825-1
• Low power consumption, Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Cost effective SFP28 solution, enables higher port densities and greater bandwidth
• RoHS Compliant
