10G SFP+ Bi-Di SMF 1330nm/1270nm 20km

PRODUCTS
UT-910G-XX20-BR

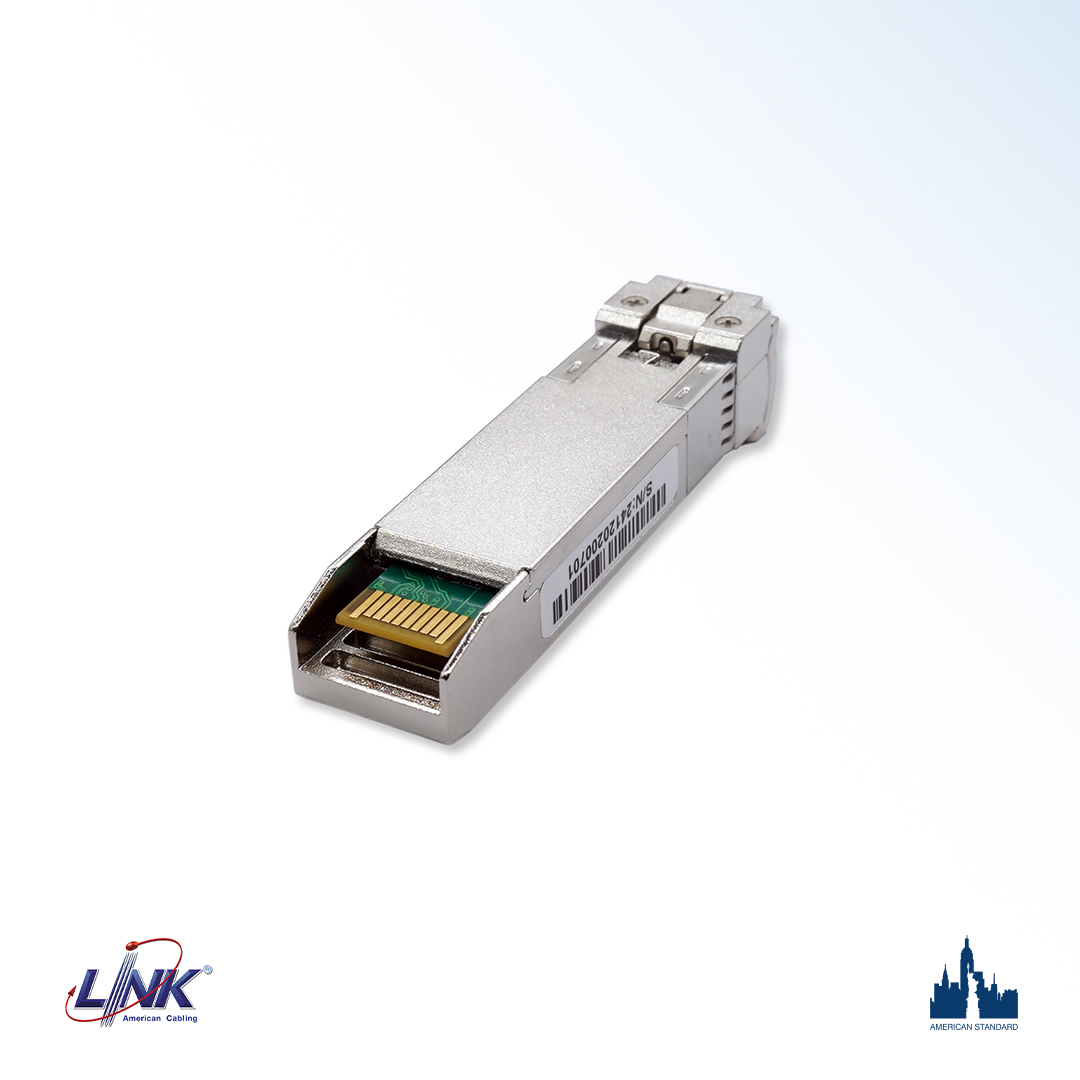

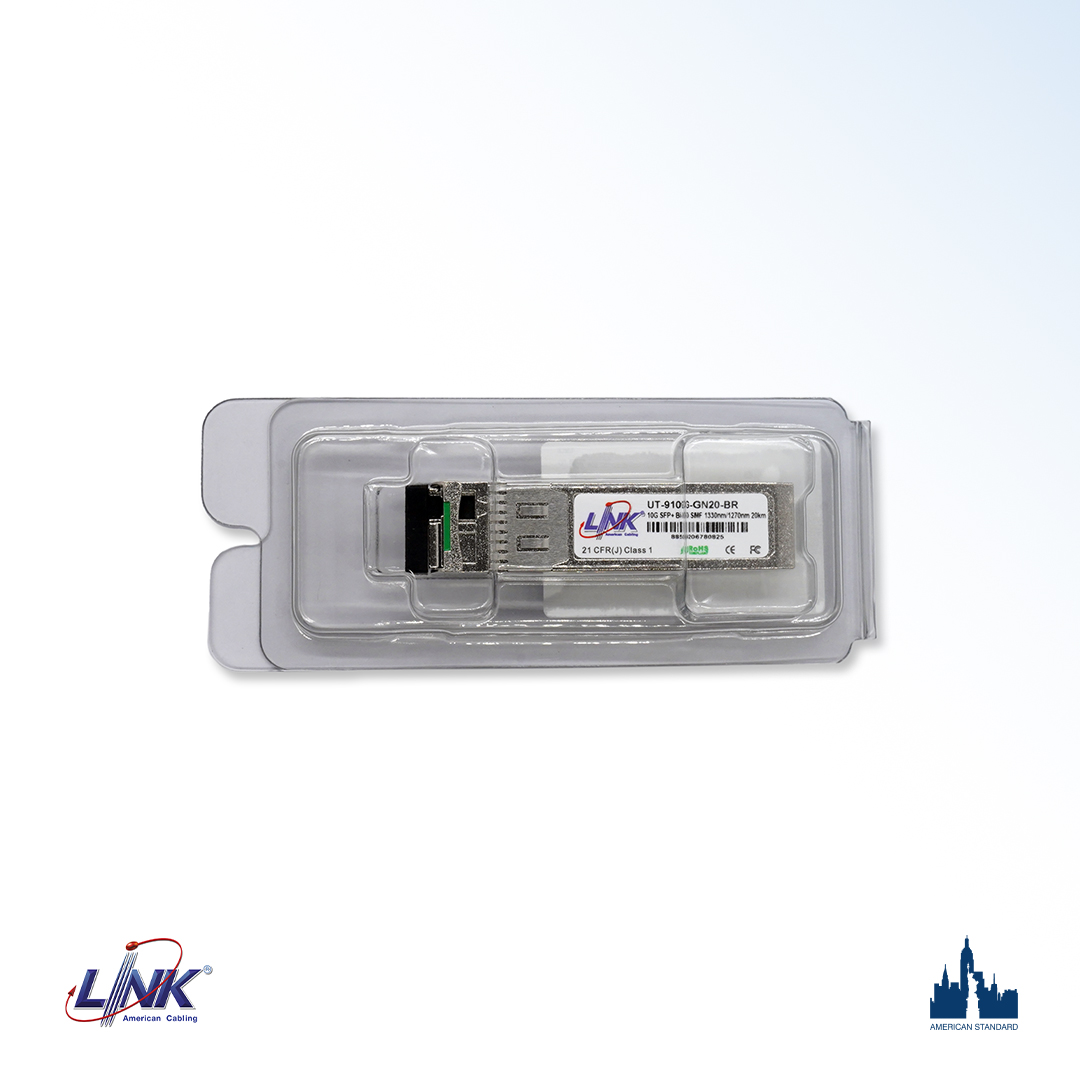

10G SFP+ Bi-Di SMF 1330nm/1270nm 20km
Copy to clipboard
Scope of Application

The LINK SFP+ transceivers are high performance, cost effective modules which is the best for all 10G network interface, The UT-910G series can install into Switch products with SFP+ interface and can be compatible with Cisco & other brands.


LINK SFP+ Bi-Di transceivers are using single-fiber with WDM technology (bi-directional), operate on a single strand of standard SMF. The transceivers provide extended connectivity up to 20km transmission distance. They uses wavelength of 1270nm/1330nm with single core of fiber optic to transmit and receive for optical data communications.


LINK SFP+ transceivers are a hot-pluggable (or hot-swappable). You can plug-in and out the transceiver to/from any SFP+ port without having to power down the network devices.

Technical Standard

• Hot-Pluggable and support data rate up to 10Gbps
• Compliant with IEEE802.3ae 10Gigabit Ethernet standard
• Compliant with SFP+ Multi Source Agreement (MSA)
• Simplex LC connector
• Electrical interface compliant to SFF-8431 and SFF-8432
• Class 1 laser and complies with EN 60825-1
• Digital Diagnostic Monitoring Interface (DDMI) Capability
• Diagnostic Monitoring Interface to SFF-8472
• All-metal housing for superior EMI performance
• Low power consumption, Single +3.3V Power supply
• Operating temperature from 0°C to 70°C
• Plug and Play Installation
• RoHS Compliant
