LINK EoC Series is model for Ethernet over Coaxial with PoE under IEEE802.3af/at standards, fulfill the real time transmission over coaxial. It transmits IP video or Ethernet up to 750m at a max rate 60Mbps over existing coax, thuscut the cost by avoid re-cabling when swapping analog camera for IP camera, and engineered to offer a solution for networks that are ready to convert from copper-based fast speed to coaxial cable. Along with the capability of converting media transmissions, PS-0122SET features intelligent functions like Auto MDI/MDI-X and auto-negotiation at ethernet port, LEDs, DIP switch for master and slave to provide easy plug-and-play.

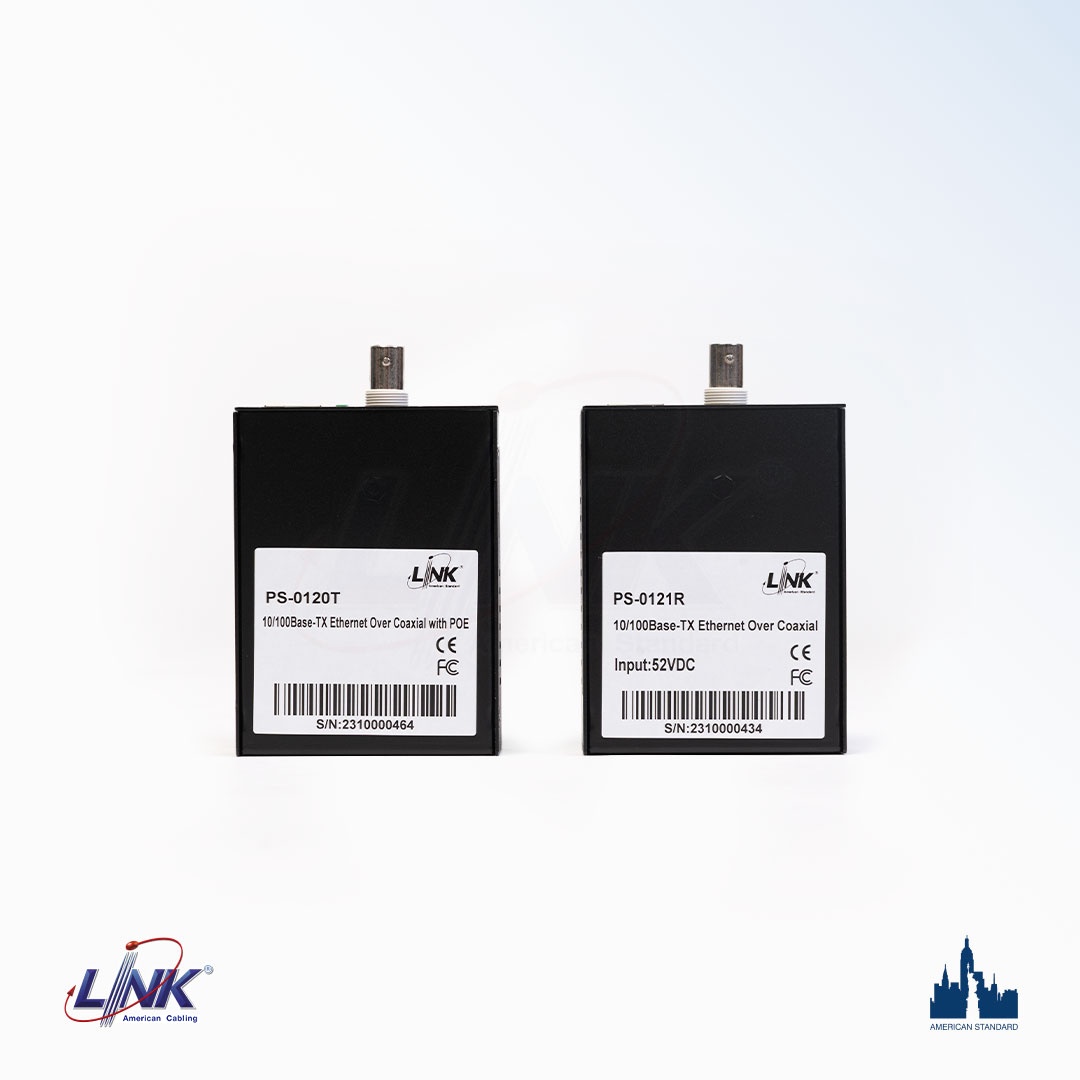

PS-0122SET consists of PS-0120T and PS-0121R. PS-0121R is a conversion device for Ethernet over Coax and also supports power to supply for PS-0121T (local side can supply power over coax cable for the remote side). PS-0120T is no need for power adapter and it provides one PoE port, power up to 30W to IEEE 802.3af/at compliant. PoE technology that can supply power for powered devices such as IP cameras, wireless access points and access control devices.

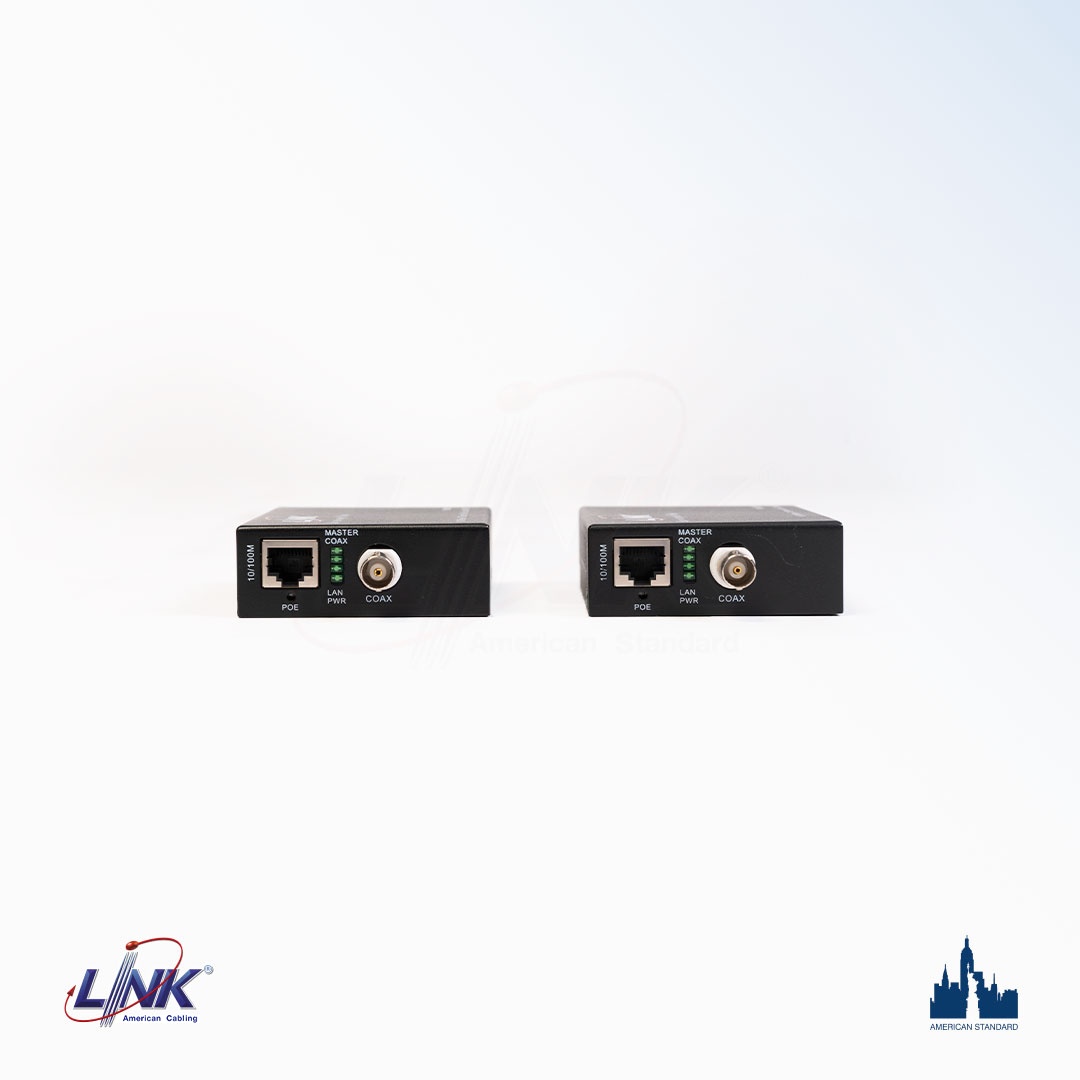

Featuring an RJ45 port and an BNC port, PS-0122SET converts 10/100Base-TX network to coaxial network cabling by easily integrating and allowing them to operate smoothly. This gives the utmost flexibility in installing connections over coaxial and UTP to extend the reach of Fast Ethernet connectivity. PS-0122SET offers you the most economic and cost-effective solution to meet your need.

• Supported Topology: Point to Point, Cascading
• 1 x 10/100Base-TX, RJ45 port (Support Full/Half duplex operations)
• 1 x BNC port
• Auto MDI/MDI-X and Auto-negotiation (NWay or auto-sensing) on RJ45
• Store and forward working mode, Back pressure and Flow Control support on Half/Full-Duplex
• Support packet size up to 1522Bytes
• IEEE 802.3af/at compliant
• Support to transmit VLAN packets (IEEE802.1q)
• Built-in flow control (IEEE 802.3x)
• Surge and ESD protection
• LEDs for device status

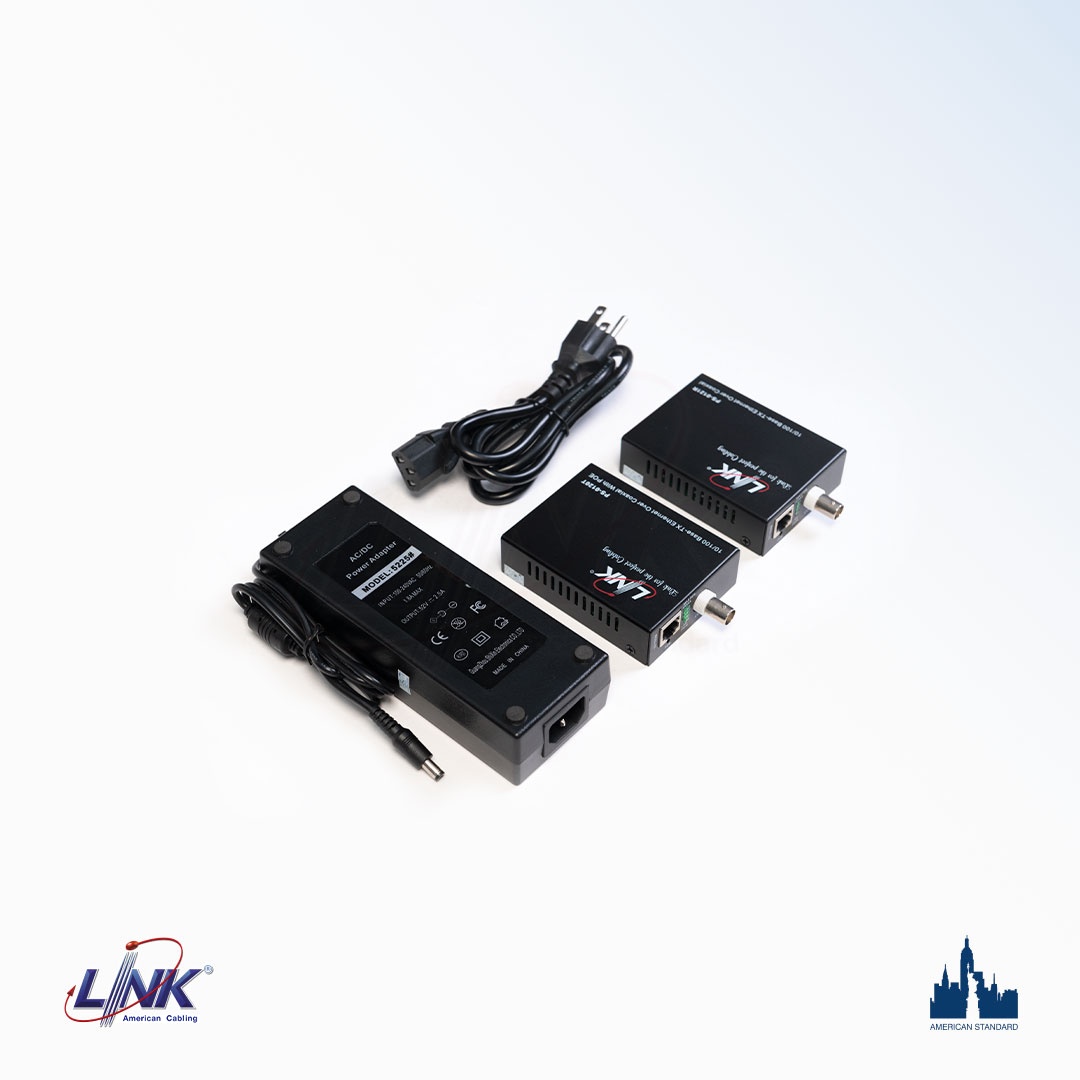

• Equipped with 52VDC, 2.5A AC adapter
• Operating temperature from -20°C to 70°C
