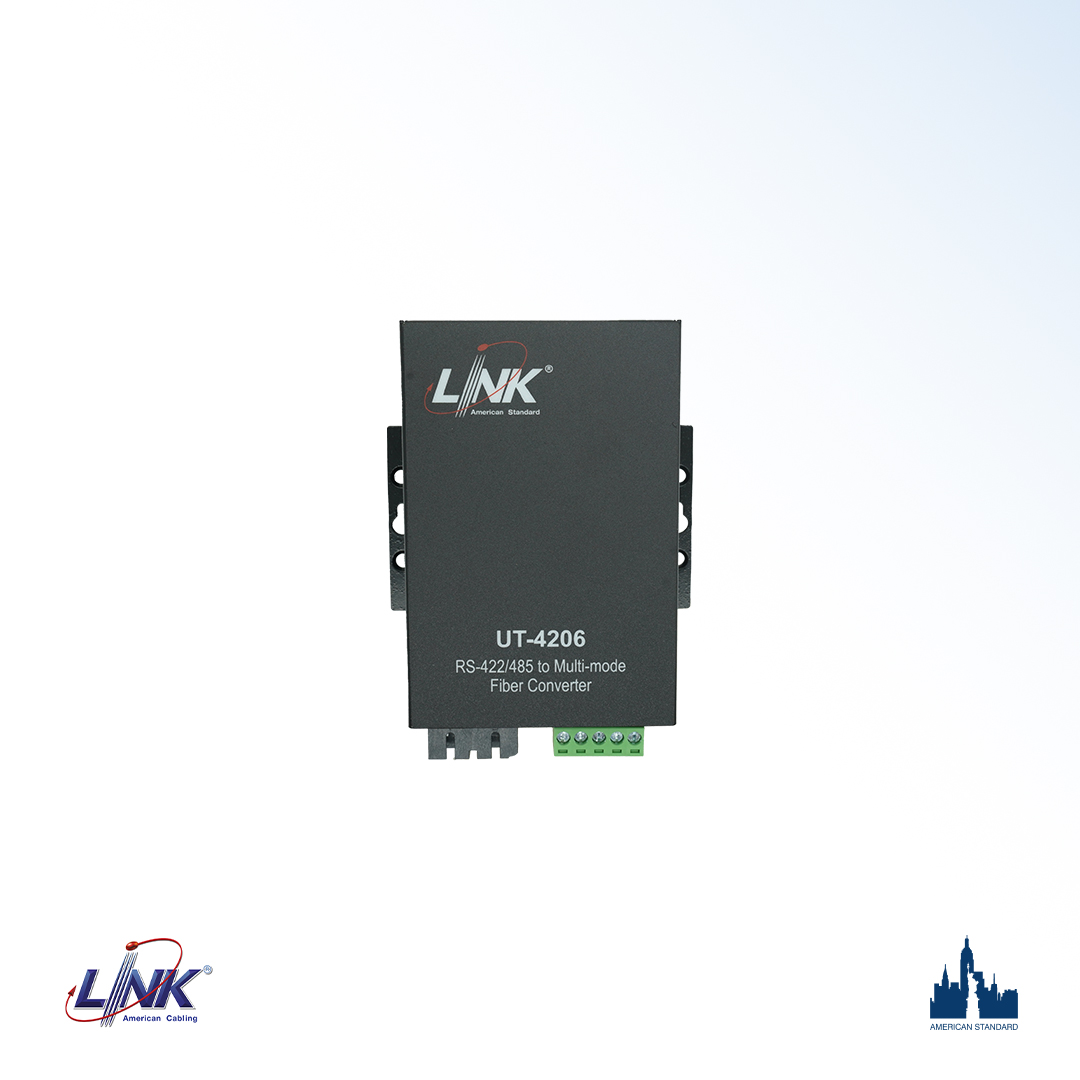

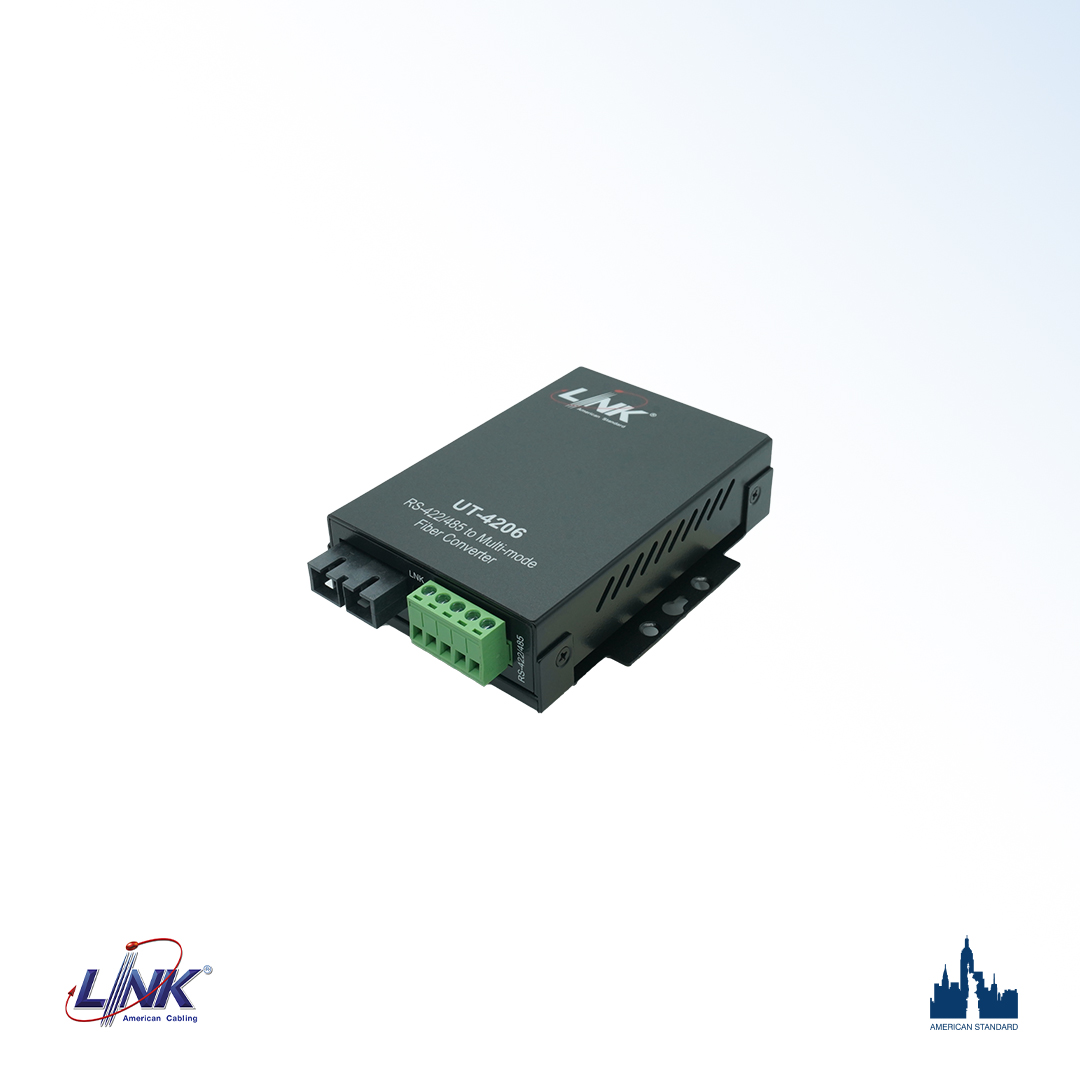

The converter offers cost-efficiency to transmit RS-422/485 signal over optical fiber in variable distances up to 2km (multi-mode fiber). The converter is ideal for connecting data communication devices situated in manufacturing-intensive environments where electromagnetic and radiofrequency interference is a major concern. Data integrity is also assured because the characteristics of fiber optic cables make any break in transmission integrity immediately detectable.

It enables network managers to install fiber cabling anywhere within an existing network environment without the removal, replacement or modification of the current copper-based RS-422/485 infrastructure. Plus, it is capable of 4-wire and 2-wire operations via DIP switch. Simply use the DIP switch to adapt to different cabling environments.

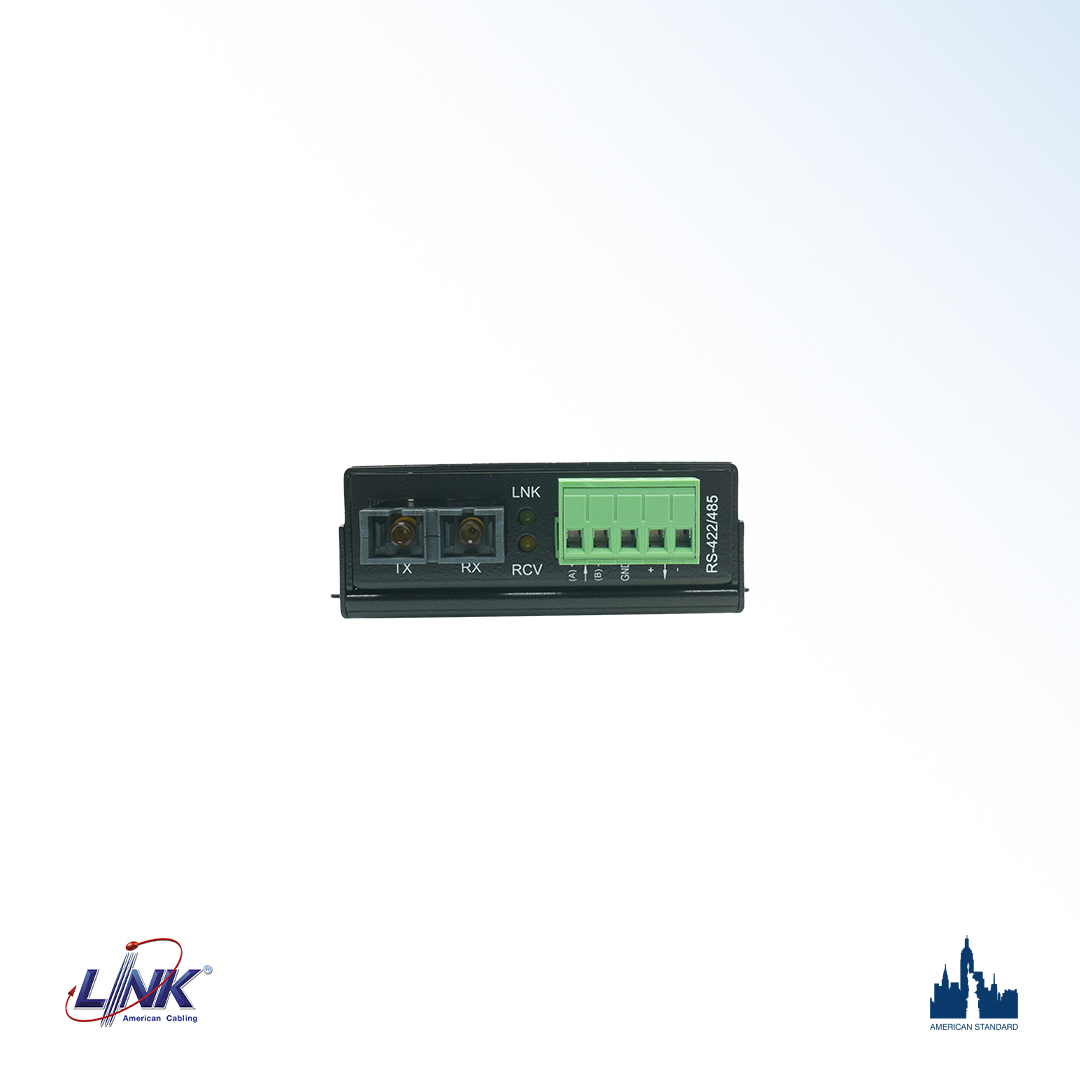

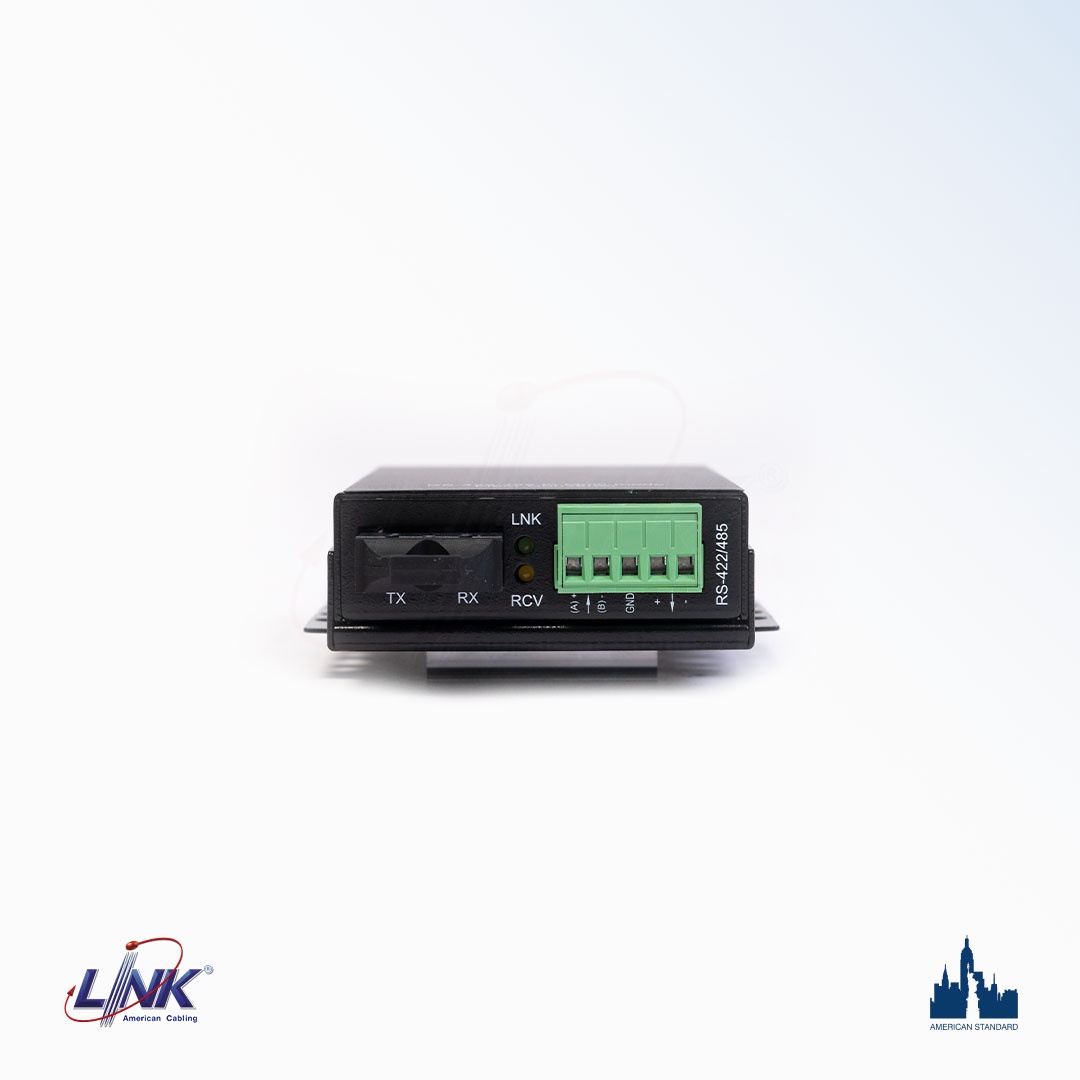

• 1 x Serial Port (RS-422/485)
• 1 x Fiber Port with SC duplex
• Extends distance for serial devices with EIA/TIA-422 & 485 standards up to 2km with Multi-mode
• Complies with EIA/TIA-422, EIA/TIA-485
• Supports asynchronous data transfer rate of up to 115.2 kbps
• Supports 4-wire full and 2-wire asynchronous data transmission
• Extends distances up to 1.2km for 24AWG Twisted Pair Cable
Wide voltage range (9 to 32V DC)

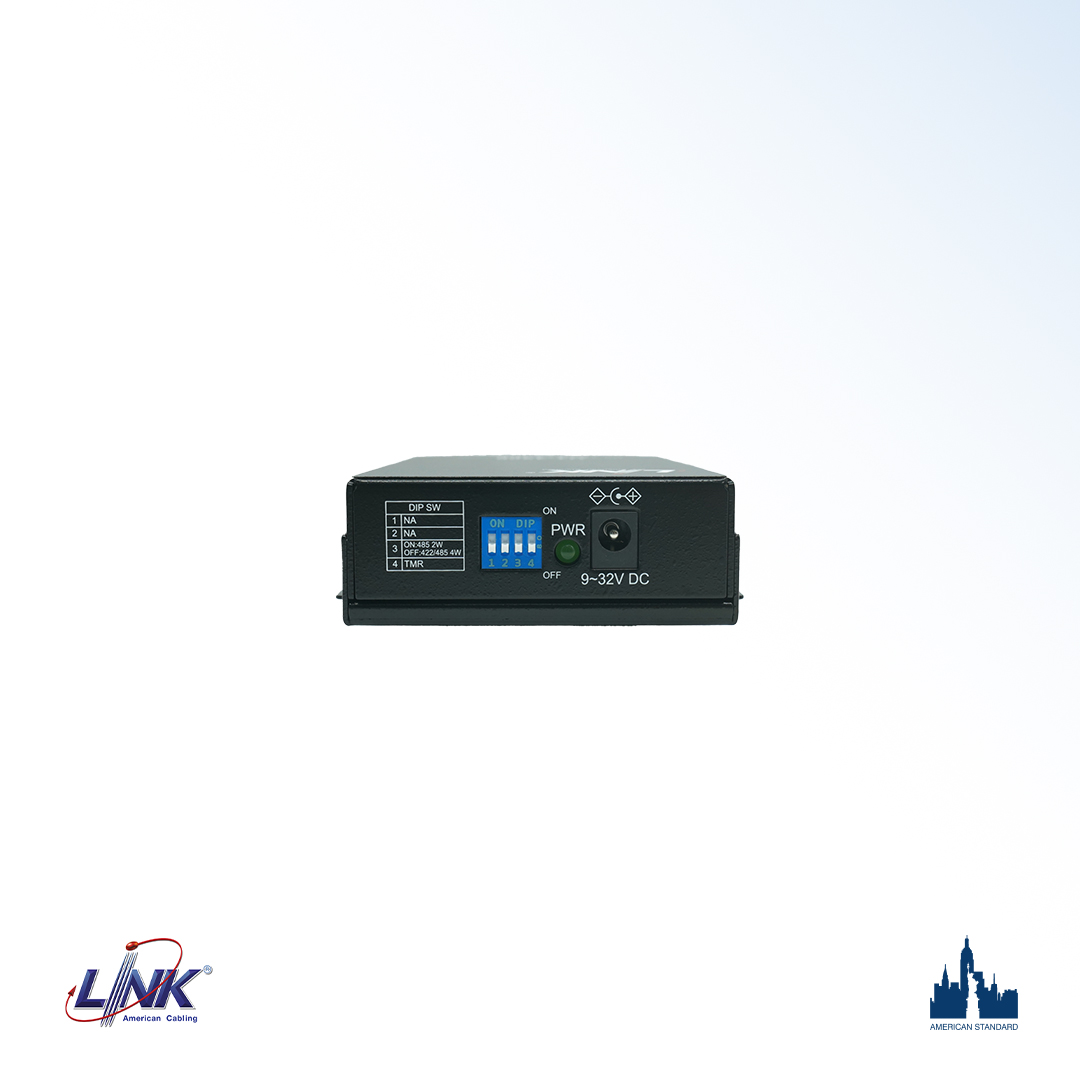

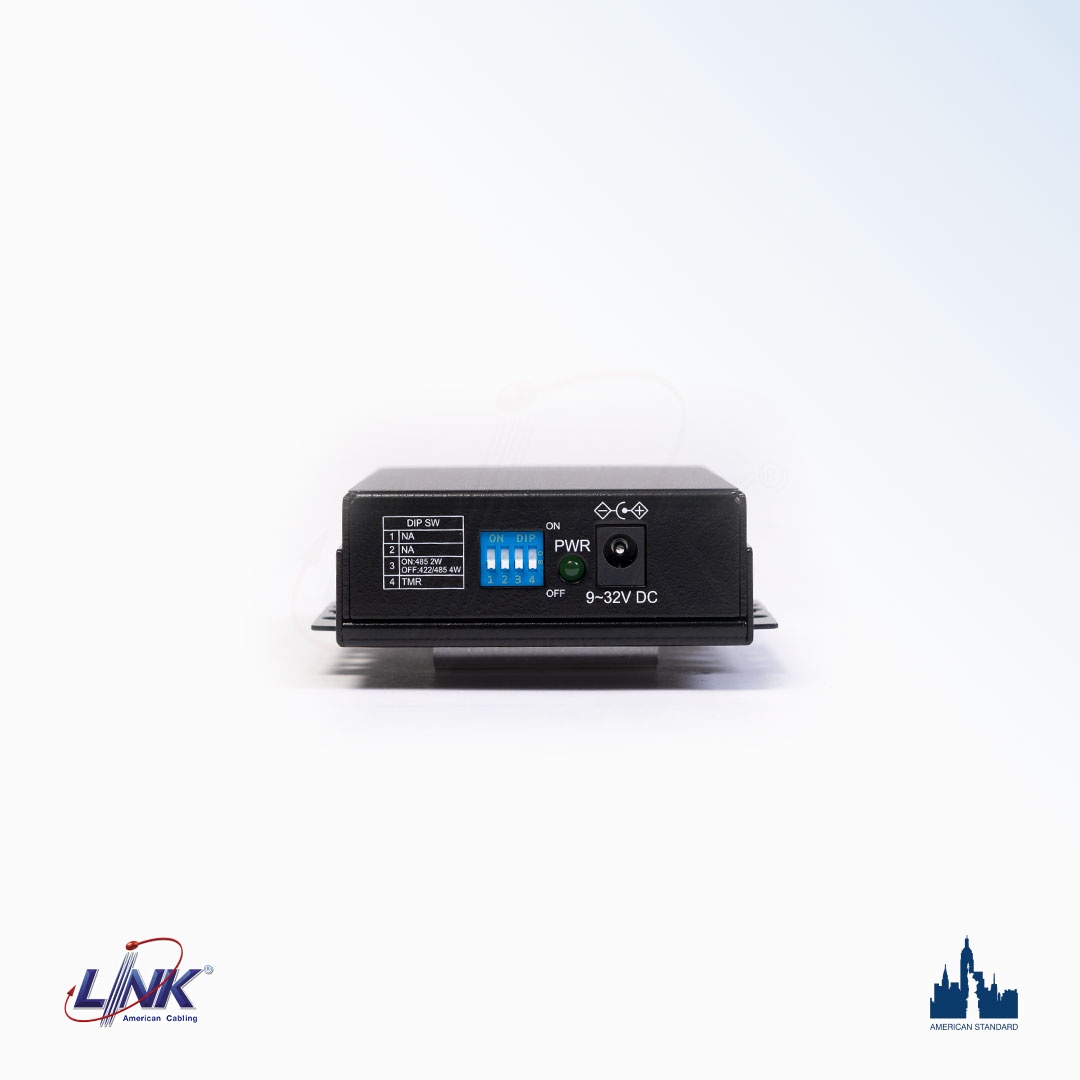

DIP switch enable / disable functions
SC Duplex Connector

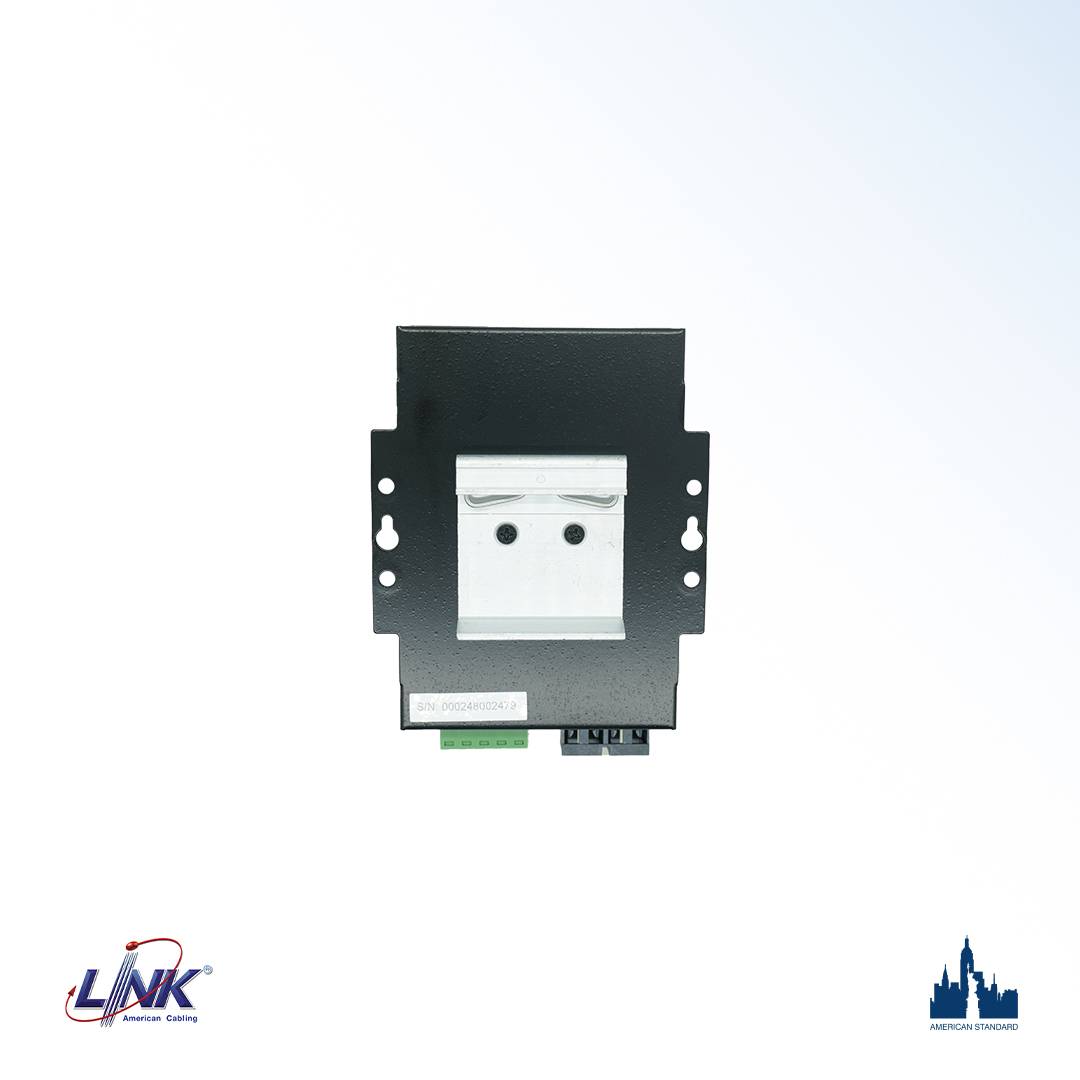

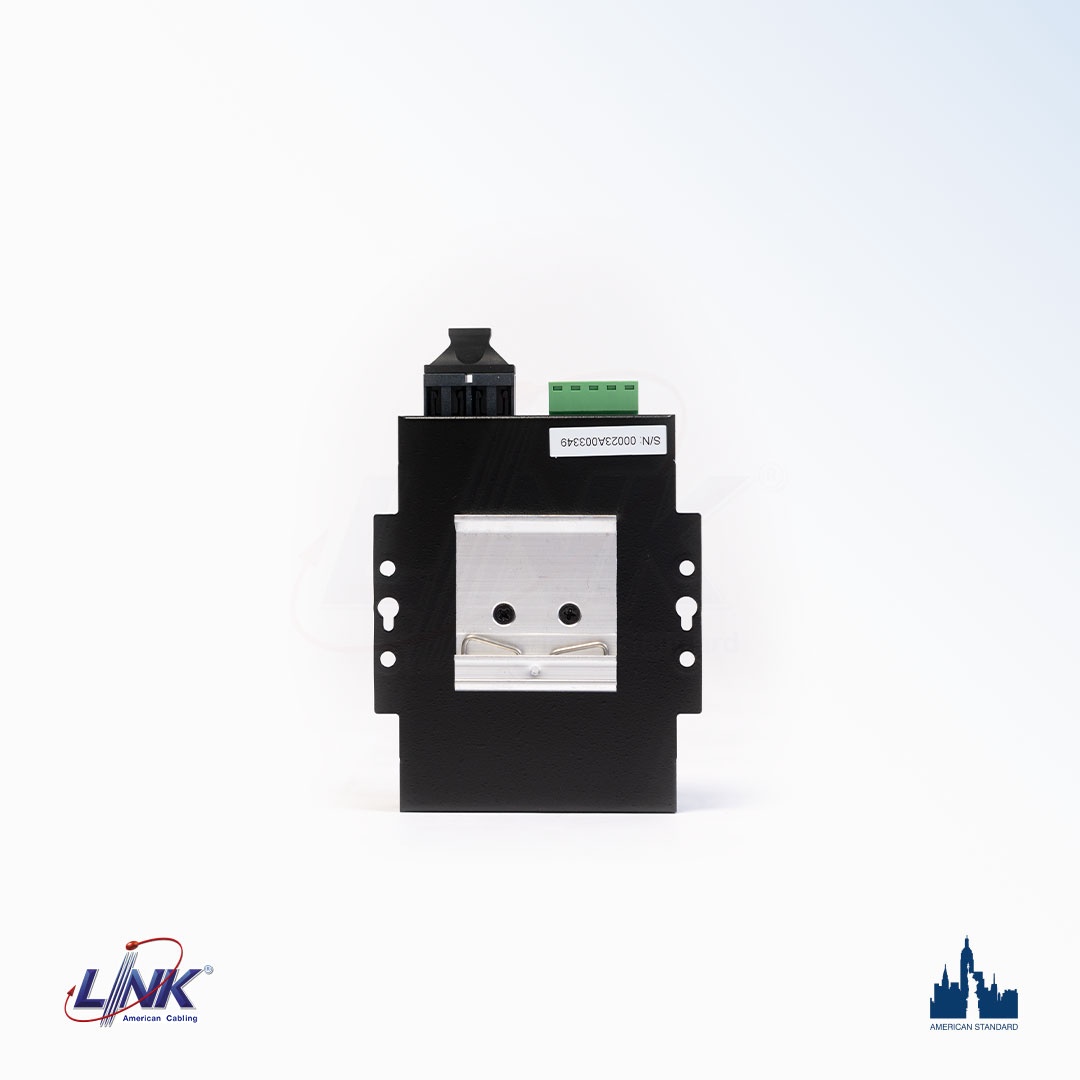

DIN-Rail mounting for easy installation

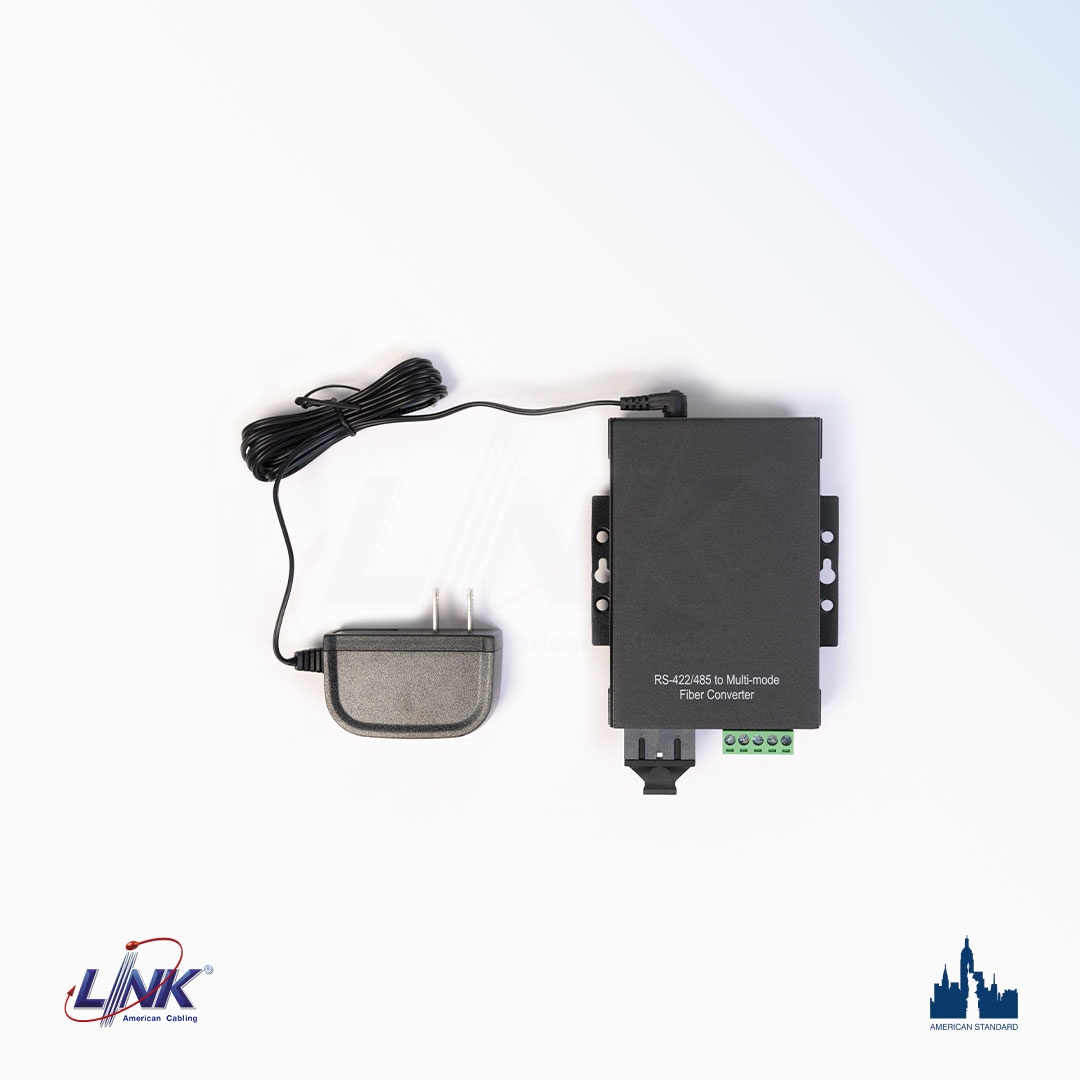

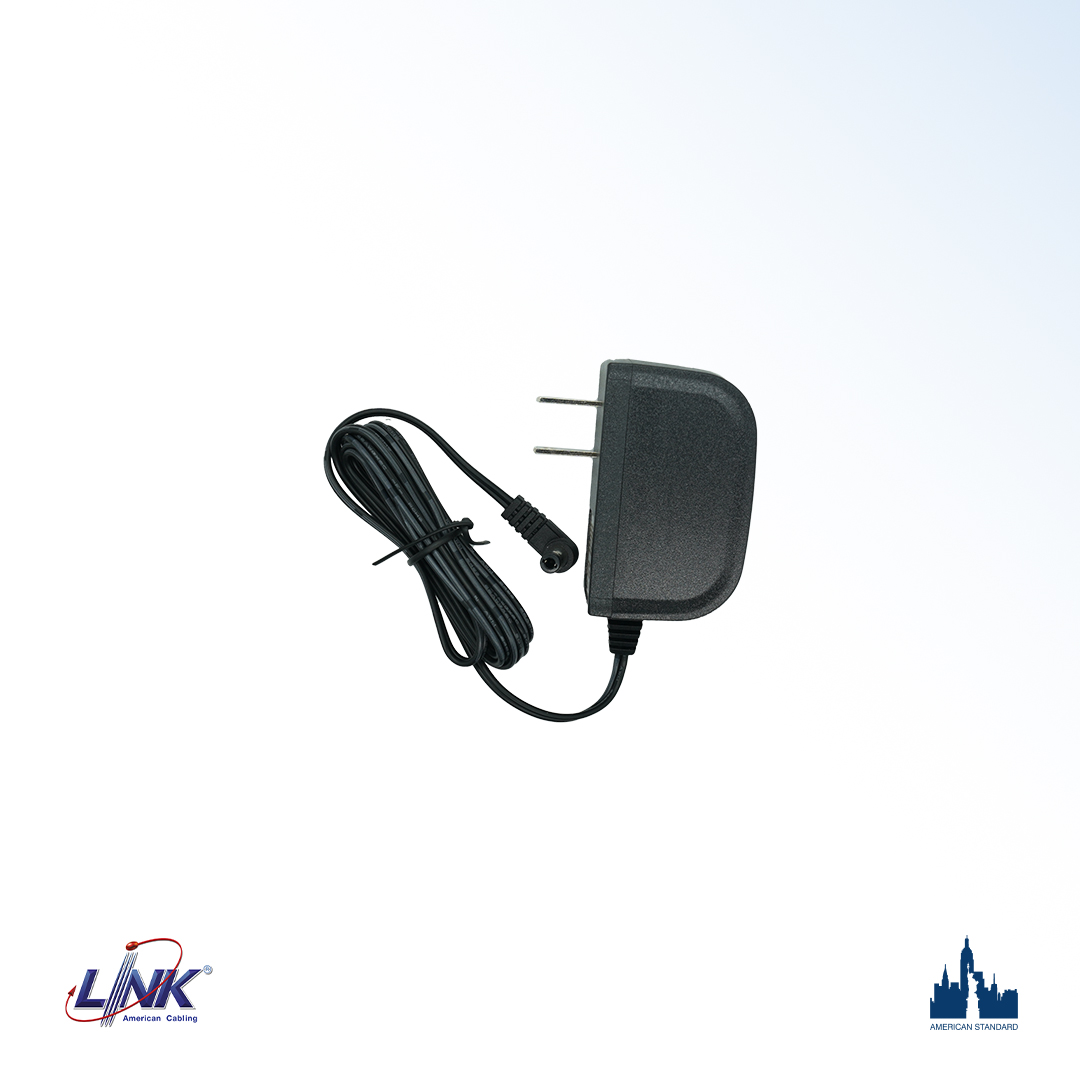

External power supply
LEDs for device status
Operating temperature from 0°C to 50°C
