4-Port Industrial GIGABIT PoE SWITCH (AC 90W) 4 GE (PoE) + 2 SFP (GE)
The PS-1080 Industrial switch is a Power Sourcing Equipment (PSE) device specifically engineered with field-Industrial components to meet the high reliability requirements of Outdoor PoE applications, and also working on OSI Layer 2. Built in a well-protected IP-30 aluminum housing, the switch withstands operating temperatures ranging from -40°C to 75°C and operates consistently even in harsh industrial environments. Although unmanaged, the switch supports Auto MDI/MDIX and eco-friendly IEEE802.3az EEE (Energy Efficient Ethernet) to ensure an efficient industrial network while delivering all the benefits of PoE power.
PoE+ function on 4-Port 10/100/1000Base-T of the PS-1080 complies with IEEE802.3af/at standards and allows them to supply up to 30W per port for network attached powered devices such as WLAN Access Points, VoIP phones and IP surveillance cameras. Two ports gigabit SFP of the switch can be configured under daisy chain topologies offering fiber advantages of safe, reliable and long distance gigabit connectivity required for today’s surveillance systems.
• 4 x 10/100/1000Mbps RJ45 ports with PoE
• 2 x Gigabit SFP port
• Support IEEE802.3af/at PoE standard
• Support auto MDI/MDI-X and auto-negotiation
• Built-in IEEE 802.3x flow control protocol
• Delivering power up to 30W per port

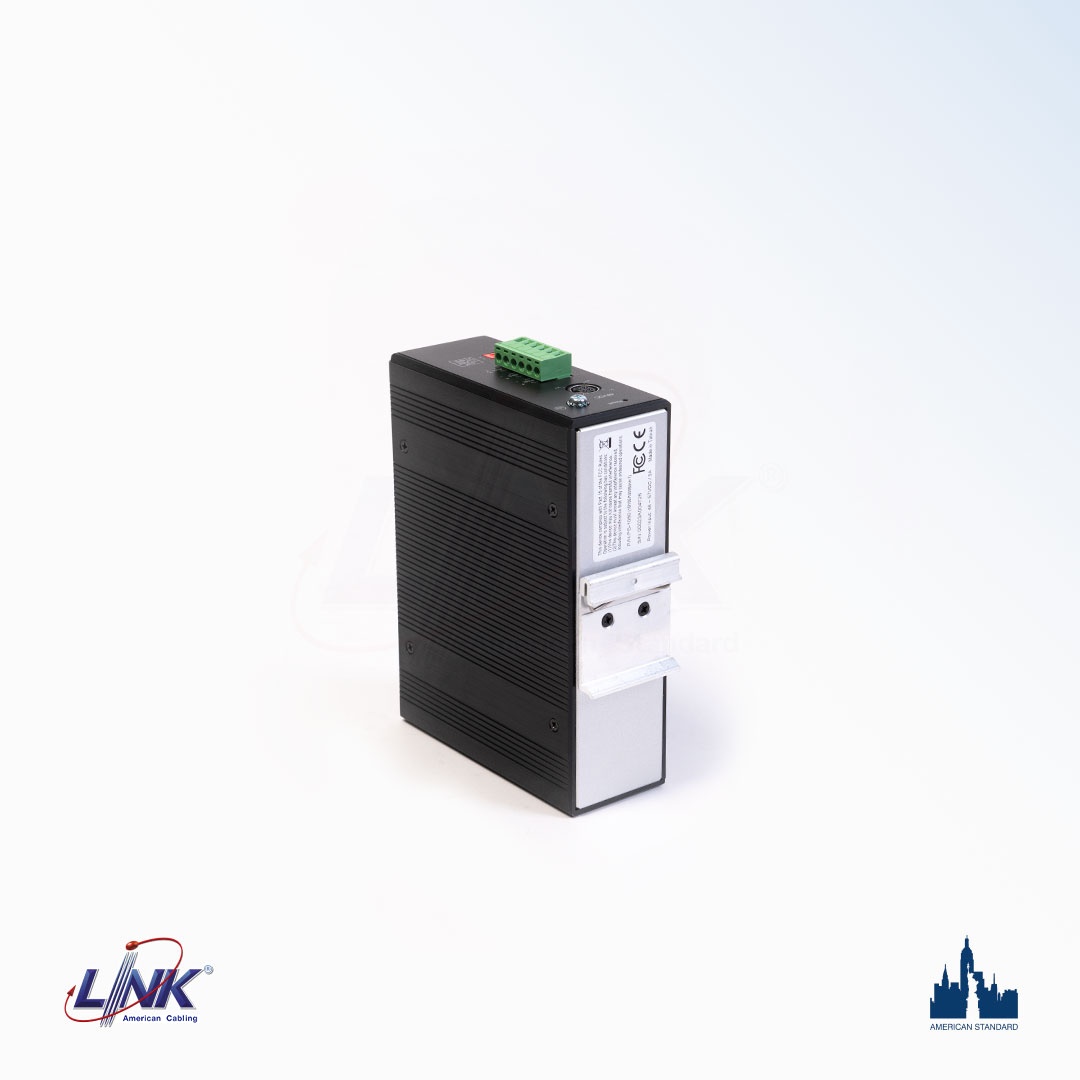

• Din-Rail mounting
• IP30 protection and can operate in harsh industrial environments
• Operating temperature from -40°C to 75°C
• Easy-Install with plug & play
