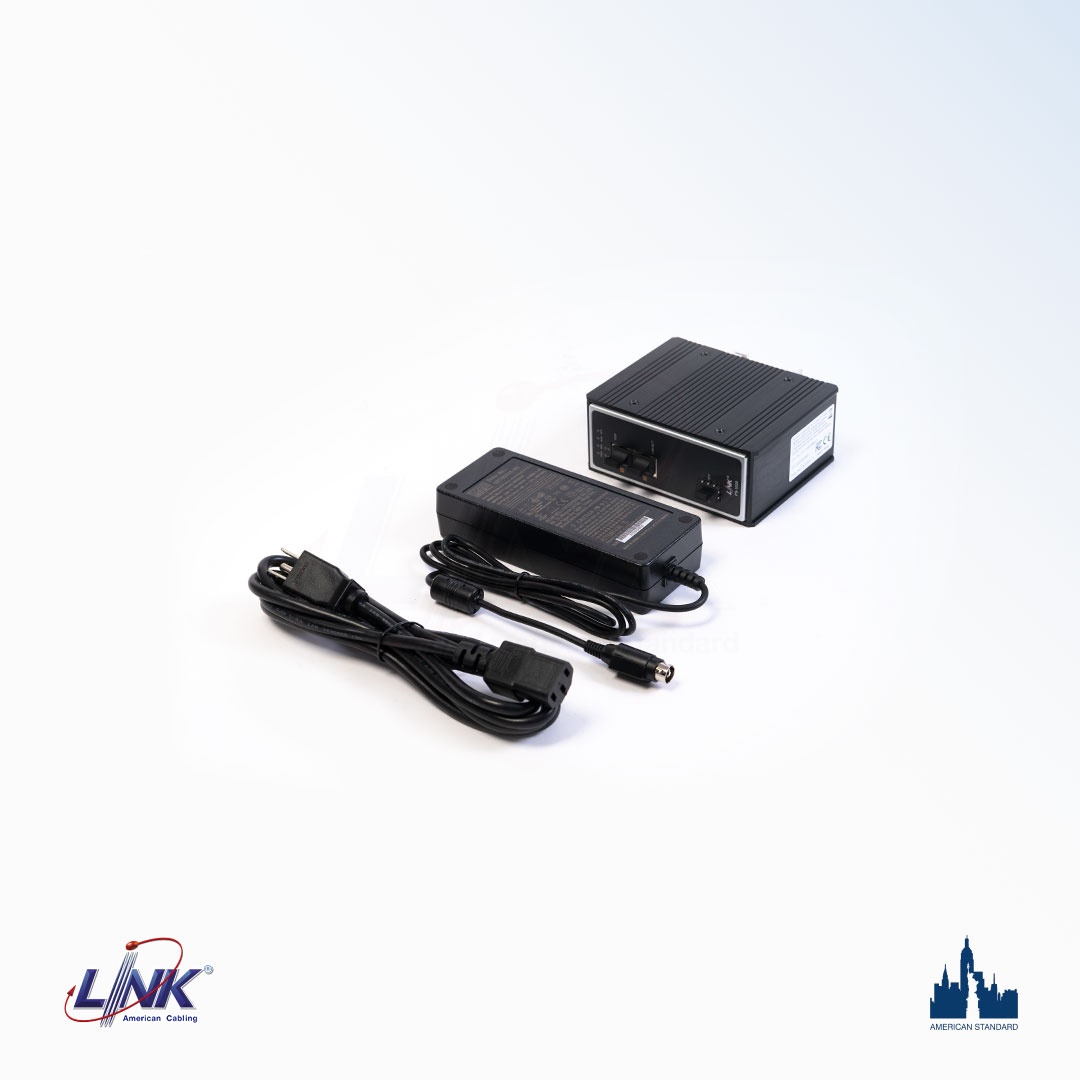

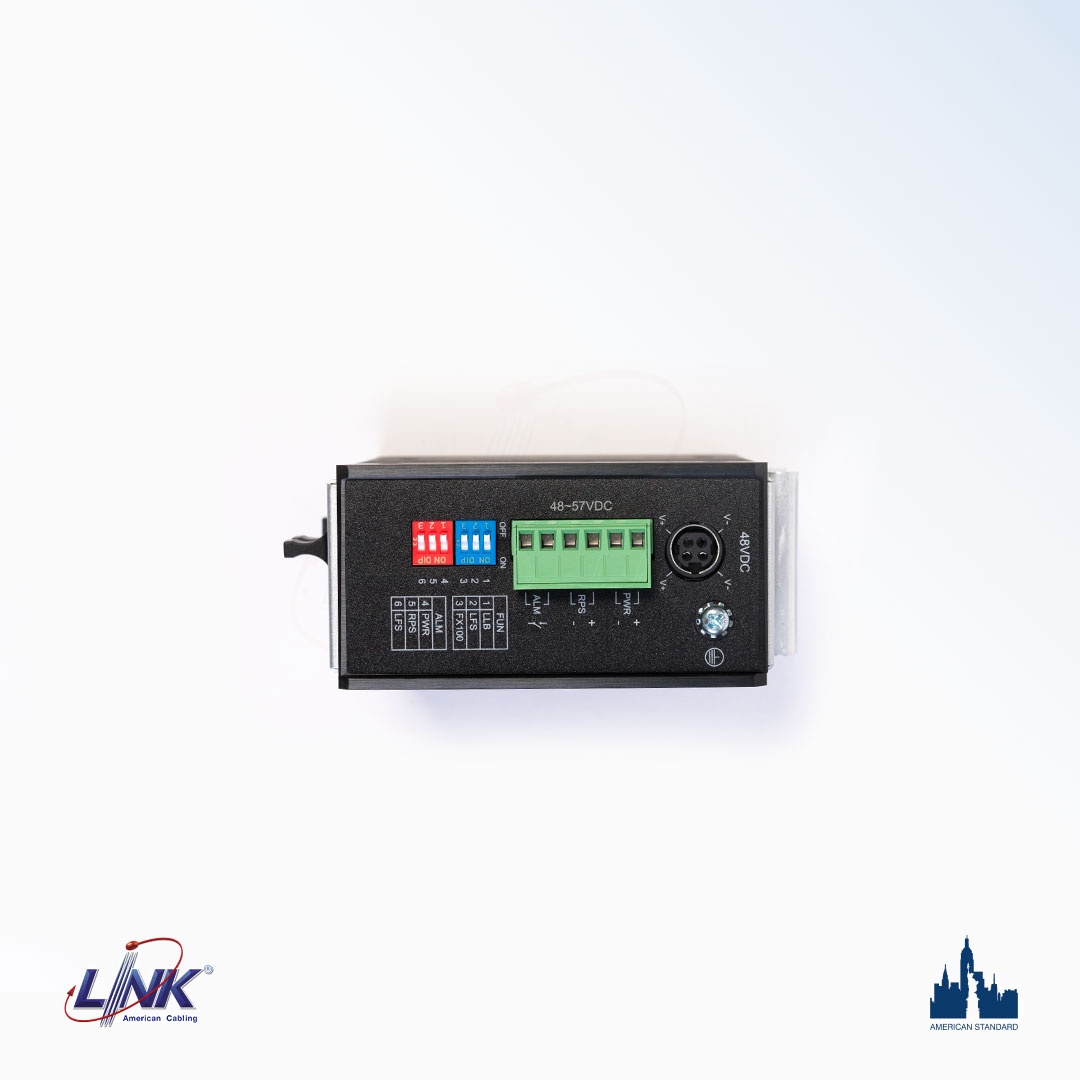

2-Port Industrial GIGABIT PoE SWITCH (AC 90W) 2 GE (PoE) + 1 SFP (GE)
The PS-1020 Unmanaged Industrial PoE Switch is specifically engineered to offer an affordable solution for outdoor surveillance systems. Built to withstand operating temperature from -40°C to 75°C, the industrial PoE switch can operate consistently even in harsh industrial environments. The PS-1020 features intelligent functions like Auto MDI/MDIX, LFS (Link Fault Signalling), LLB (Line Loopback), LEDs, DIP switches etc. to provide easy plug-and-play, continuous monitoring thereby minimizing downtime for mission-critical networks.
Featuring two 10/100/1000Mbps PoE+ copper port, the PS-1020 provides power up to 30W per port to IEEE802.3af/at compliant powered devices such as IP cameras, wireless access points and access control devices. Equipped with one multi-rate 100/1000Mbps SFP port, the industrial PoE switch offers fiber advantages of secure data transmissions over long distances to mission-critical networks and support to transmit VLAN packet (IEEE 802.1Q). PS-1020 provides maximum bandwidth flexibility and extended connectivity for workgroups that are ready to expand and migrate from existing fast Ethernet network to gigabit network.
• 2 x 10/100/1000Mbps RJ45 ports with PoE
• 1 x Gigabit SFP port
• Support IEEE802.3af/at PoE standard
• Support auto MDI/MDI-X and auto-negotiation
• Built-in IEEE 802.3x flow control protocol
• Delivering power up to 30W per port

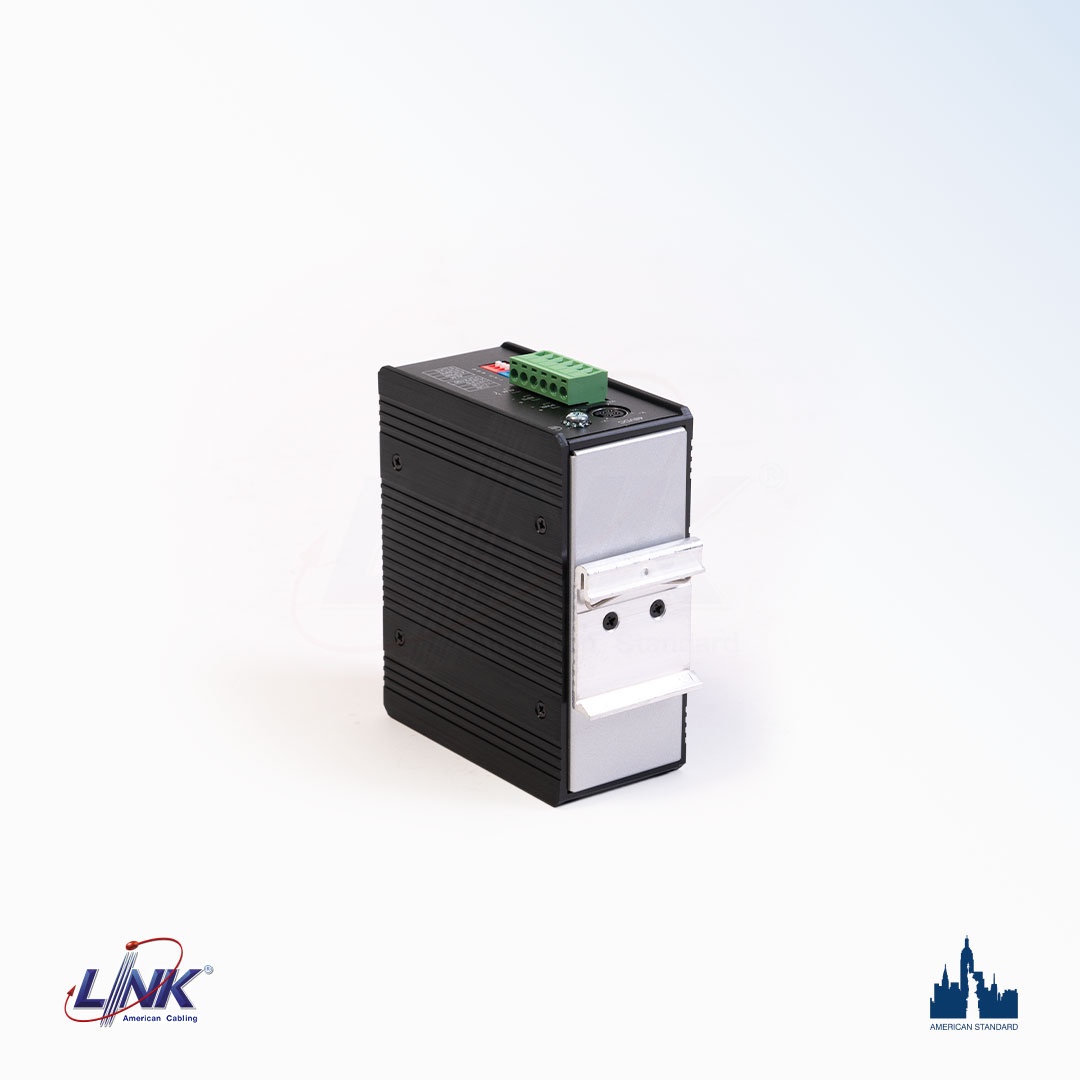

• Din-Rail mounting
• IP30 protection and can operate in harsh industrial environments
• Operating temperature from -40°C to 75°C
• Easy-Install with plug & play
