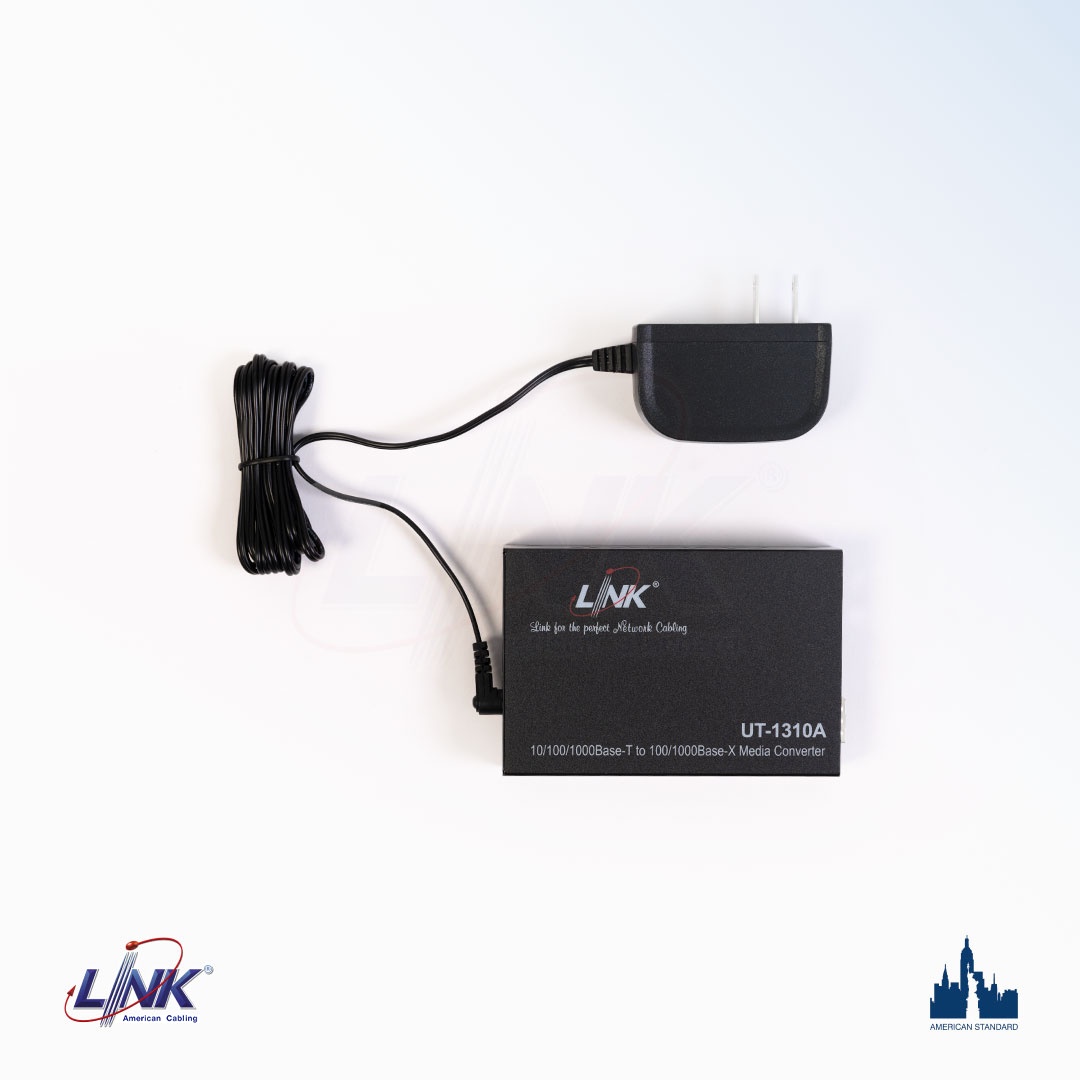

UT-1310A Gigabit Media Converter is specifically designed for large workgroups such as enterprise or campus environments which demand maximum bandwidths, and engineered to offer a solution for networks that are ready to expand or migrate from copper-based Gigabit triple speed to Fiber-based Gigabit network. Along with the capability of converting media transmissions, UT-1310A features intelligent functions like Auto MDI/MDIX, LFS (Link Fault Signalling), LEDs, DIP switches etc to provide easy plug-and-play, continuous monitoring and thereby minimize downtime for mission-critical networks.

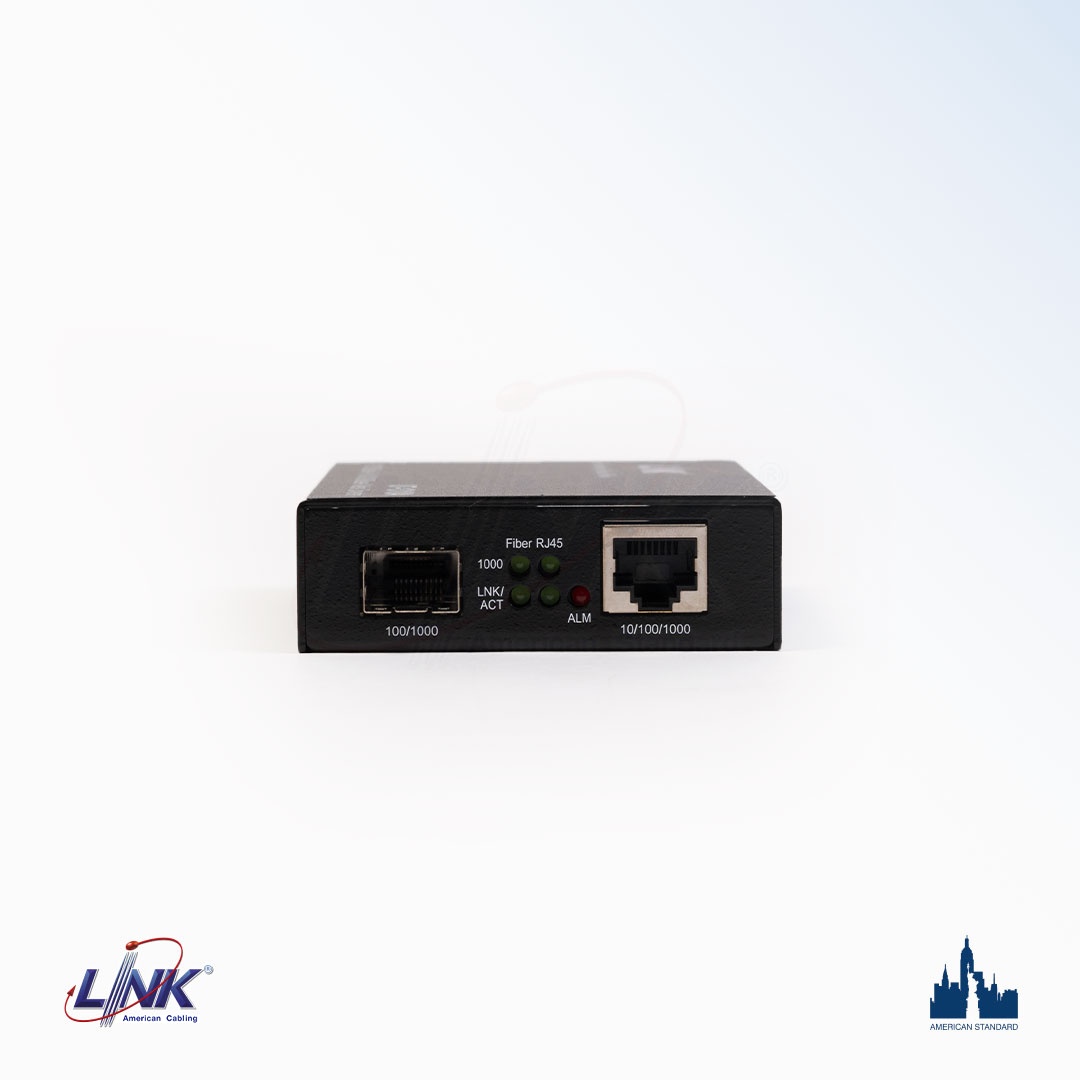

Featuring an RJ45 port and an SFP slot, UT-1310A converts 10/100/1000Base-T network to 1000Base-SX/LX fiber network or vice versa by easily integrating copper with fiber and allowing them to operate smoothly. This gives the utmost flexibility in installing various connections over fiber and extend the reach of Gigabit Ethernet connectivity over single-mode or multi-mode fiber via SFP module. UT-1310A offers you the most economic and cost-effective solution to meet your need for long distance transmissions up to 120km.

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• Auto MDI/MDI-X
• Auto-negotiation
• Flow control
• 10/100/1000Base-T (RJ45 port)
• 100Base-FX/1000Base-X (SFP port)
• Extend distances up to 2km with Multi-mode SFP
• Extend distances up to 120km with Single-mode SFP
