Product | LAN (UTP) System | CAT 5E Enhanced 350 MHz LAN Cabling |

CAT 5E RJ45-RJ45 PATCH CORD LSZH 2 M (Blue)

PRODUCTS
US-5006LZ-4

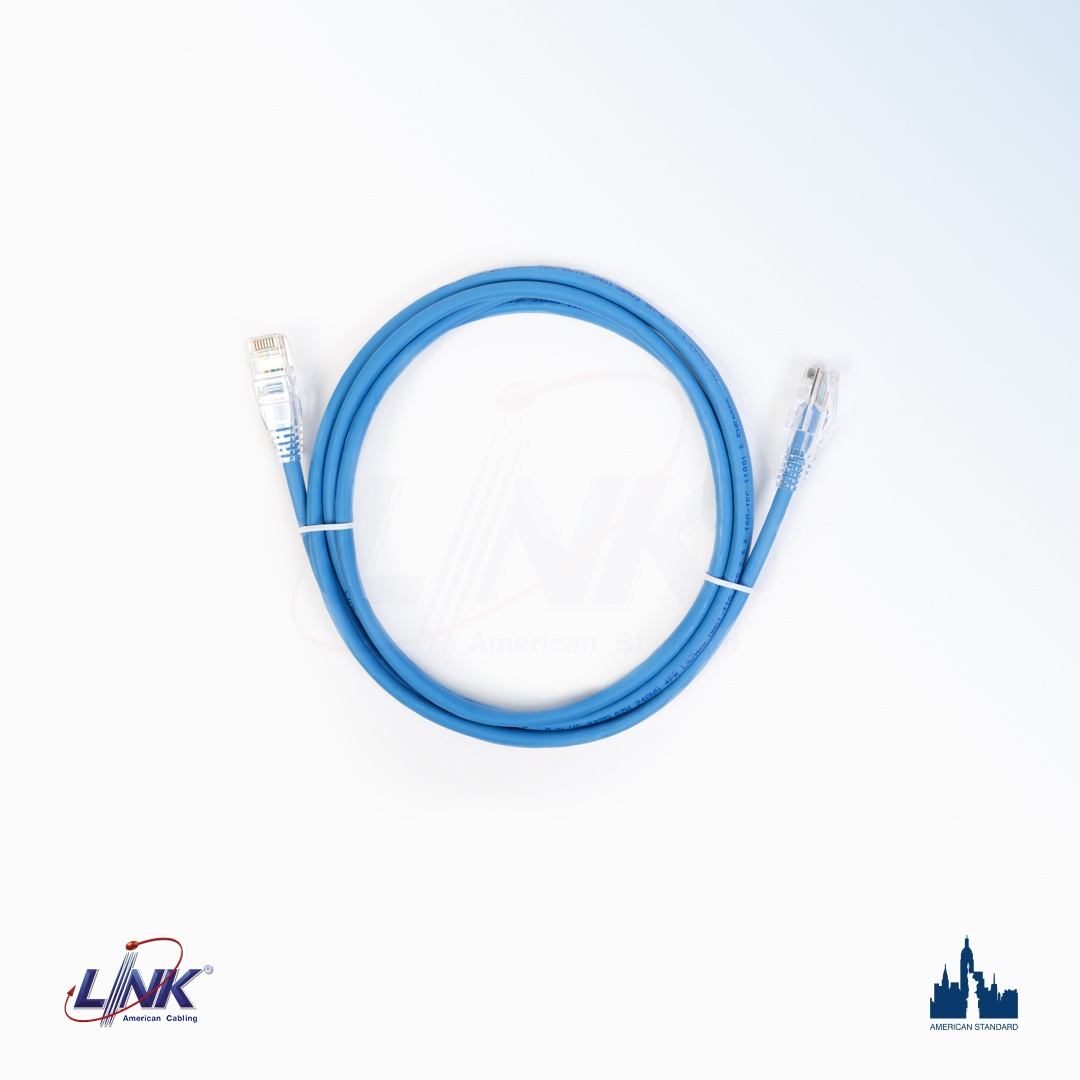

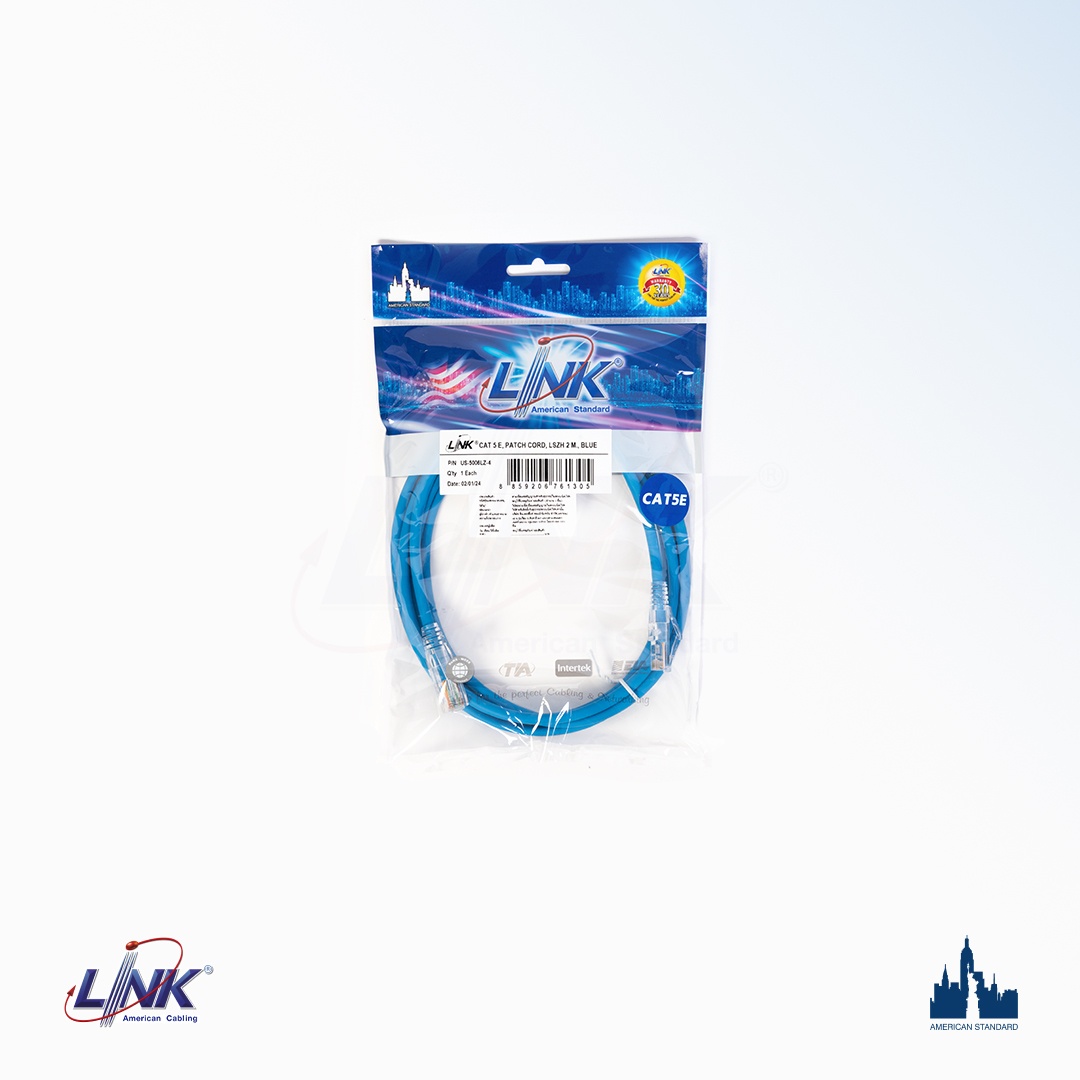

CAT 5E RJ45-RJ45 PATCH CORD LSZH 2 M (Blue)
US-5006LZ-4
Copy to clipboard
Scope of Application

LINK Category 5e U/UTP patch cord, LSZH compliant ISO/IEC 11801 Class D and ANSI/TIA-568.2-E  requirements for category 5e performance. Both end of the cable shall have RJ45 modular plug with transparent boot exceed IEC 60603-7, FCC Part 68 Subpart F specification and have 50 micro-inches of gold plating over nickel. The conductor made from stranded bare copper 24 AWG. Available length in 1, 2, 3, 5, and 10 meters or other. The patch cord shall be factory assembled with high quality control and 100% test. The outer jacket material made from LSZH compound to reduces the amount toxic smoke and corrosive has emitted during burned, for users’ safety.

Technical Standard
  • ANSI/TIA-568.2-E Category 5e
  • ANSI/TIA-568.2-D Category 5e
  • ANSI/TIA-568-C.2 Category 5e
  • ISO/IEC 11801:2017 class D
  • EN 50173-1 Category 5e
  • EN 50288-3-2
  • IEC 61156-6, IEC 60332-1
  • IEC 61034-1, IEC 61034-2
  • IEC 60754-1, IEC 60754-2
  • IEC 60603-7, FCC Part 8 Subpart F
  • RoHS Compliant
