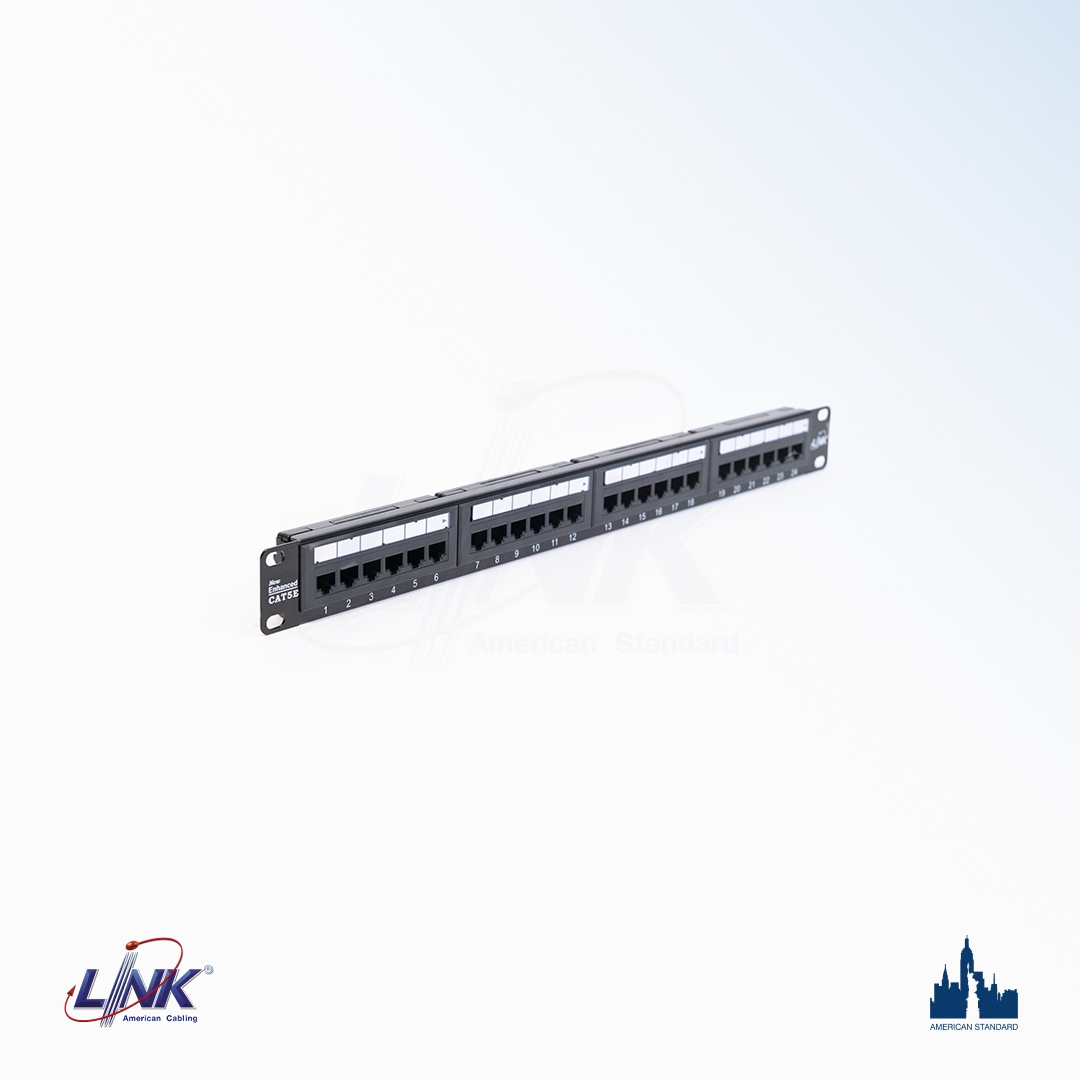

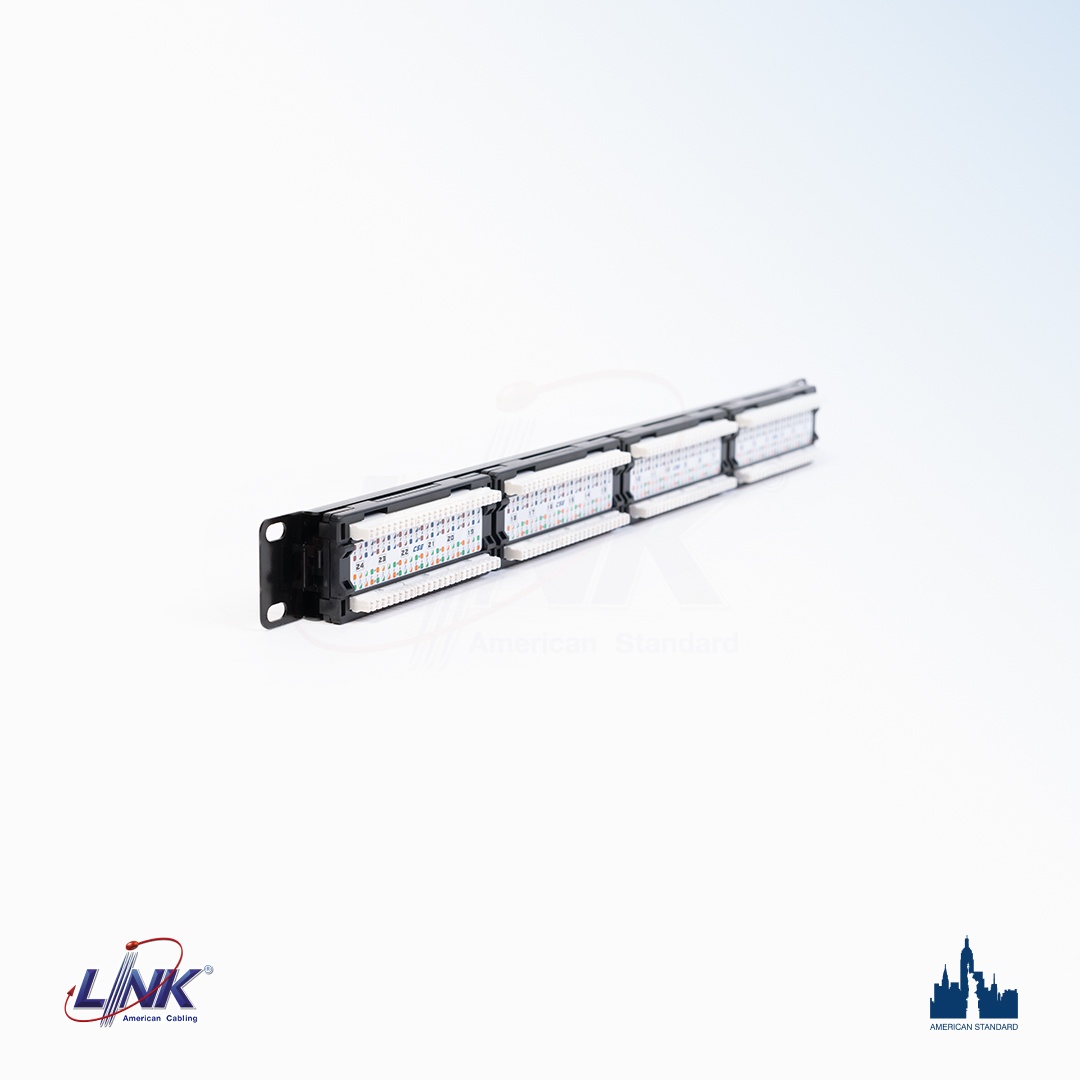

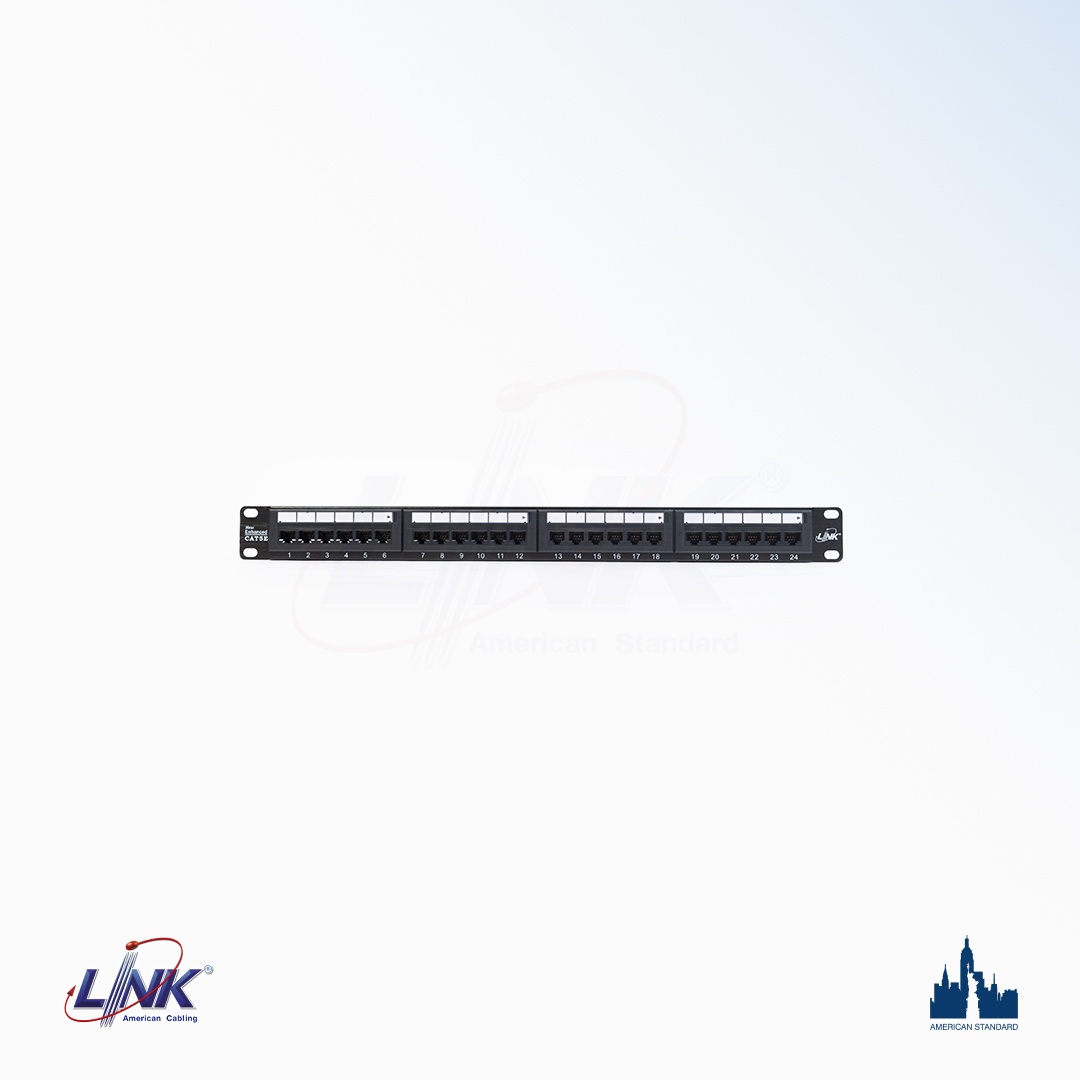

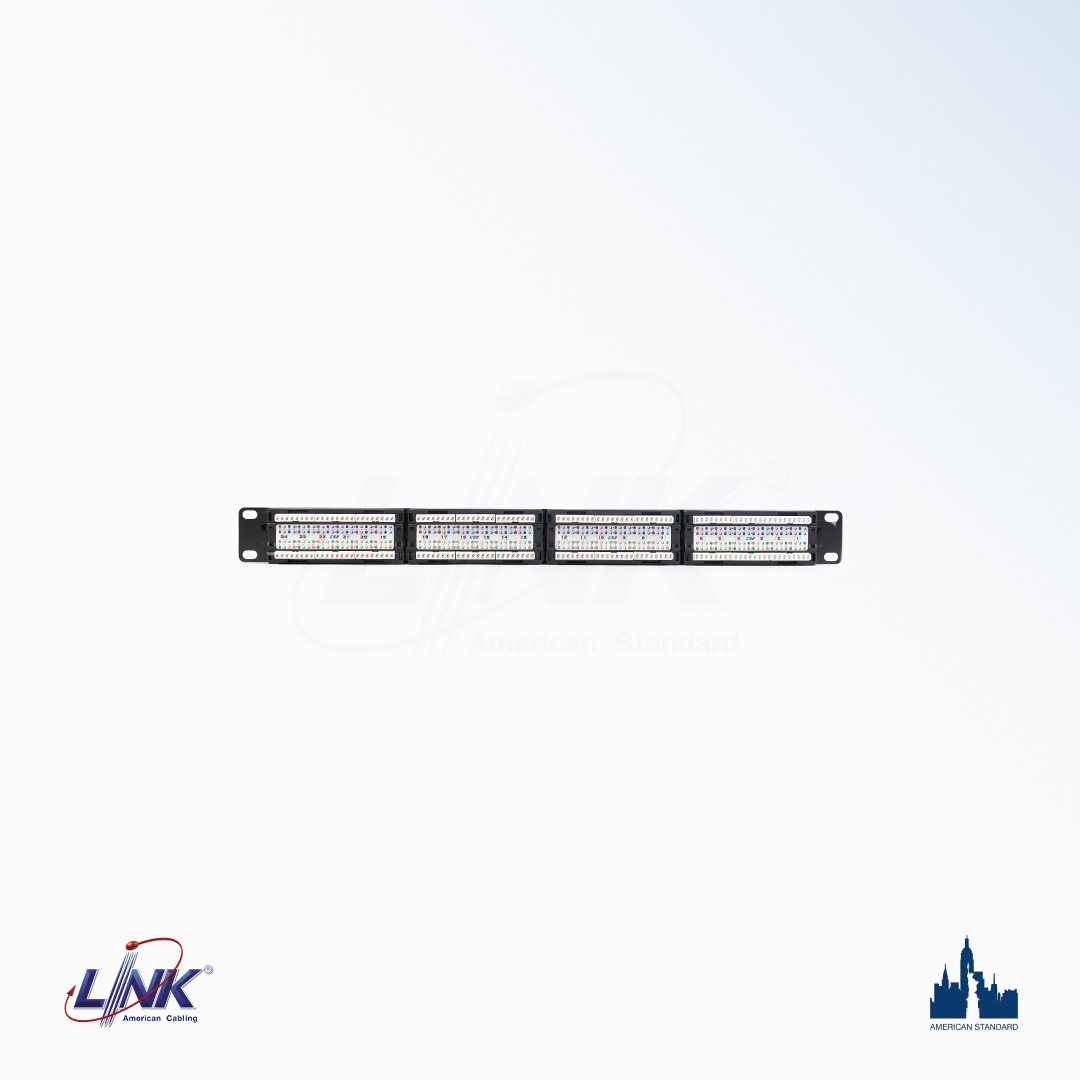

CAT 5E PATCH PANEL 24 PORT (1U) w/Cable Support









LINK Category 5E patch panel compliant ISO/IEC 11801 and ANSI/TIA-568.2-D requirements for category 5E performance. The panel is Aluminum light weight with black anodize and showed the LINK logo on the front. The patch panel are utilized a printed circuit board (PCB) technology to balanced signal transmission of insertion loss and crosstalk from 1 to 100MHz. Design new version of Label with transparent cover. Knock down support bar can be separated from panel. Support dual 110 IDC and 45°KRONE termination block with durable. The patch panel supplies with support bar and cable tie in colorful box(nut and screw included).
• ANSI/TIA-568.2-D Category 5E
• ANSI/TIA-568-C.2 Category 5E
• ISO/IEC 11801:2017 class D
• EN 50173-1 Category 5E
• UL 1863
• IEC 60603-7, FCC Part 68 Subpart F
• UL and ETL Verified to Category 5E
• RoHS Compliant
• Approvals UL listed file no. E196947
• Intertek Certification no. 3159185CRT
