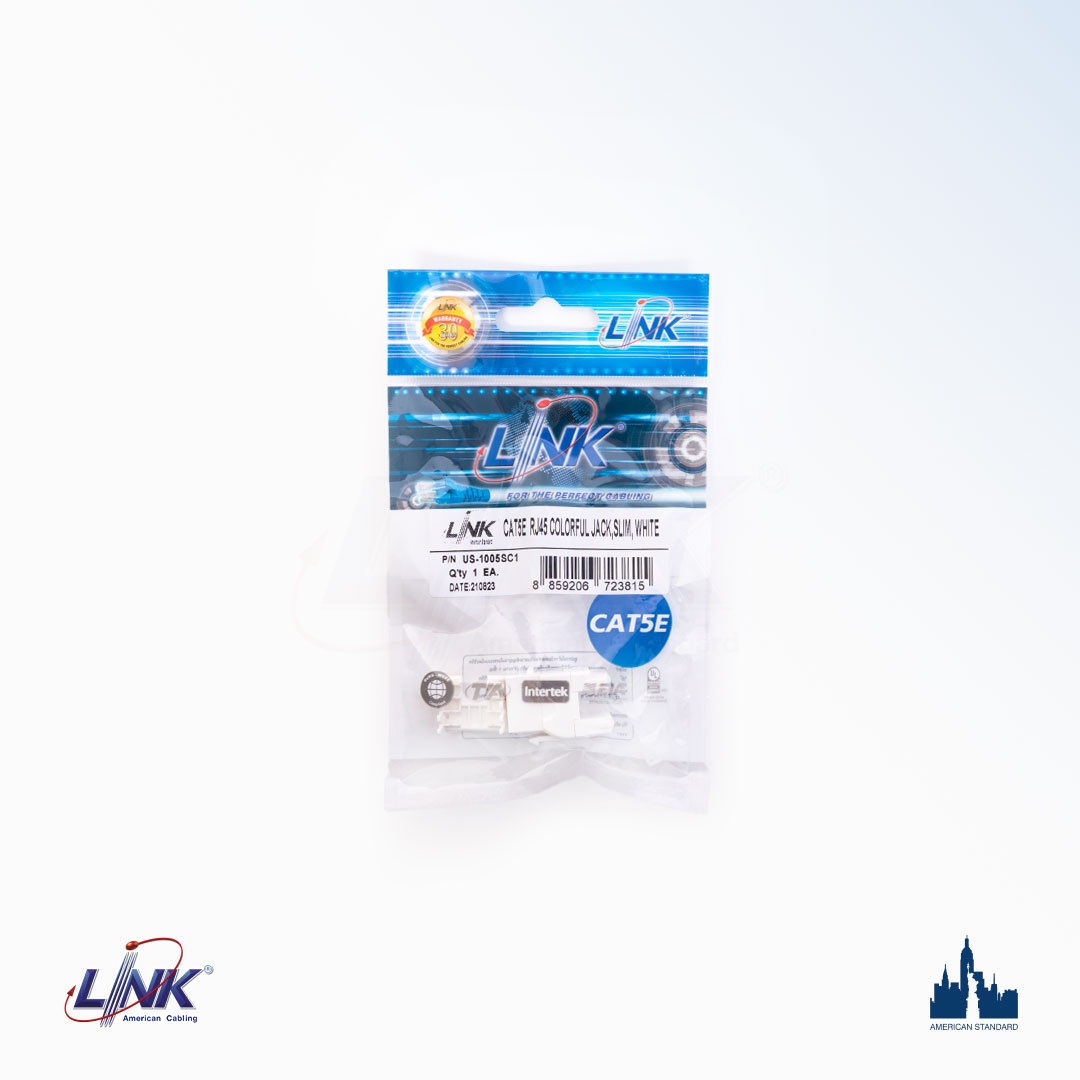

US-1005SC1
CAT 5E RJ45 JACK, Slim
Copy to clipboard
Scope of Application

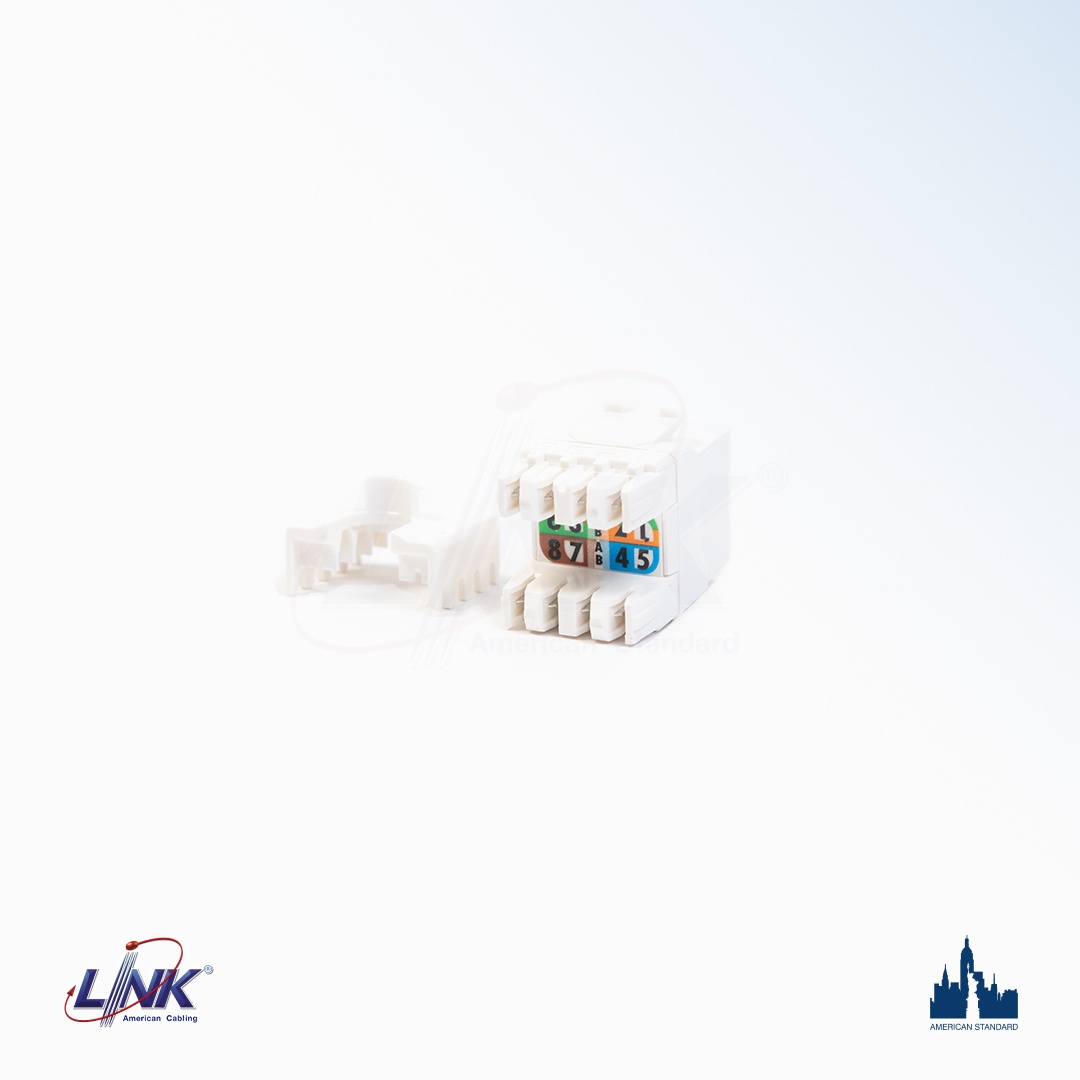

LINK Category 5e RJ45 modular jack, slim type with embossed LINK logo on the front. The jack compliant ISO/IEC 11801 Class D and ANSI/TIA-568.2-E requirements for category 5e performance. The modular jack is utilized a printed circuit board (PCB) technology to balanced signal transmission of insertion loss and crosstalk from 1 to 100MHz. The unshielded Jacks is design of 110 IDC impact tool and Krone insertion tools and LINK fast termination tool which can be protect of dust by cover cap with cable tie for long life guaranteed.
Technical Standard
- ANSI/TIA-568.2-E Category 5e
- ANSI/TIA-568.2-D Category 5e
- ANSI/TIA-568-C.2 Category 5e
- ISO/IEC 11801:2017 class D
- EN 50173-1 Category 5e
- UL 1863
- IEC 60603-7, FCC Part 68 Subpart F
- UL and ETL Verified to Category 5e
- Approvals UL listed file no. E196947
- Intertek Certification no. 3159185CRT
- RoHS Compliant
