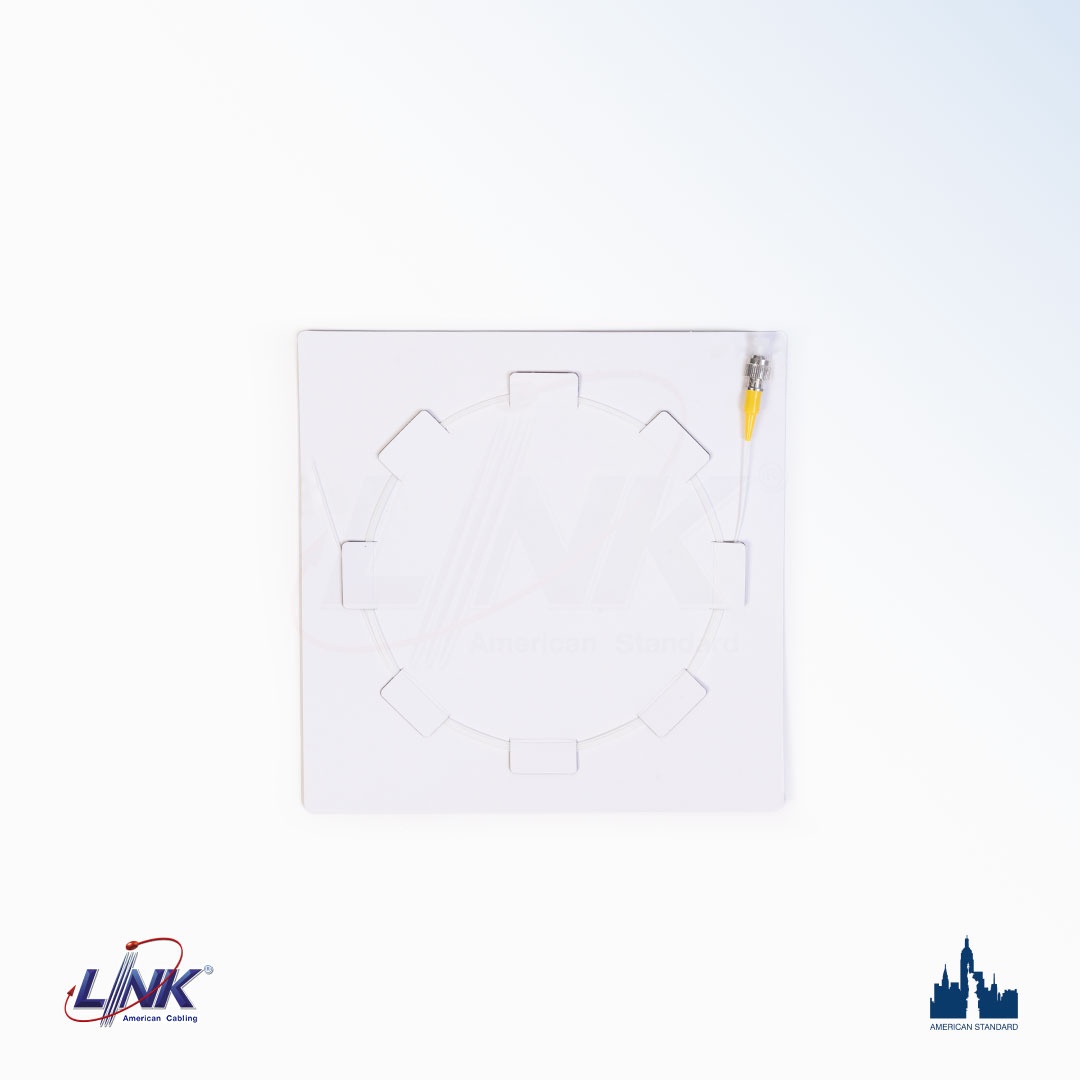

This specification covers the general requirements for fiber optic pigtail, The cables are high grade simplex cable available FR-LSZH. The pigtails are low insertion loss and high return loss. Good in repeatability and exchangeability. The pigtail shall be factory assembled with high quality control and 100% test. Provide label for easily to identify. Cables are available on 900 µm (0.9 mm.) buffered fiber, and 2.0 mm., 3.0 mm. cordage connectorized on one end. The cord shall be available length in 1.5, 3, and 5meters or other. LINK fiber optic pigtail support application such as 25/40/50/100/200/400Gbps Ethernet, IEEE802.3ae 10G Ethernet, IEEE802.3z Gigabit Ethernet, IEEE802.3u Fast Ethernet, 52/155/622Mbps, 1.2Gbps ATM, FDDI, Fiber channel, FTTx, CATV, CCTV and others.

ANSI/TIA-568.3-D
ANSI/TIA-568-C.3
ANSI/ICEA 596
FOTP EIA/TIA-455
ITU-T G.652D, G.657A1 (Singlemode)
ITU-T G.651 (Multimode)
GR 326 CORE (Singlemode)
ISO/IEC 11801:2017
ISO/IEC 11801:2011 (Ed.2.2)
IEC 60793, IEC 60794
IEC 61300-2, IEC 61300-3
TIA/EIA-604, FOCIS 4
RoHS Compliant, EN 50173-1
UL, FR-LSZH, OFNR
