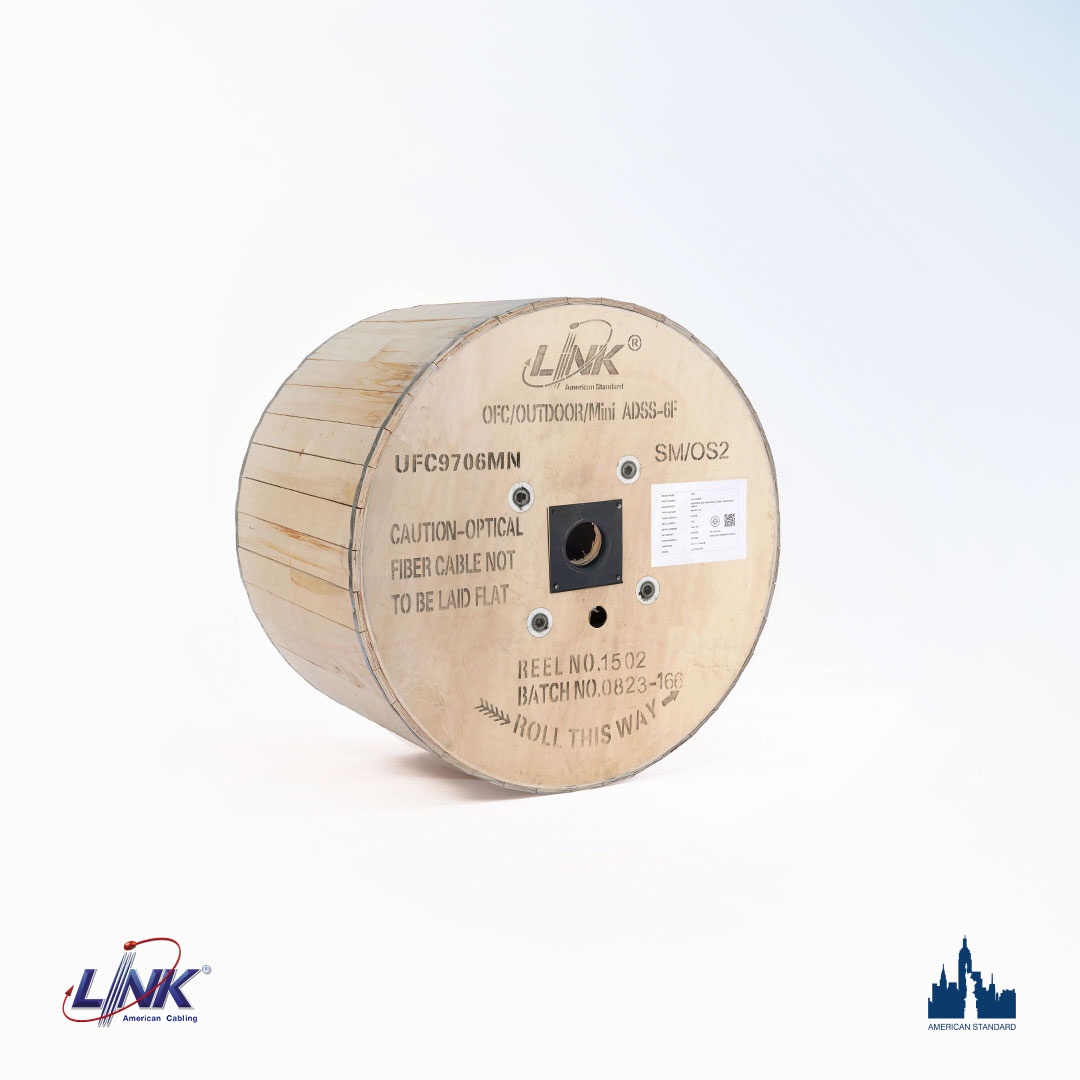

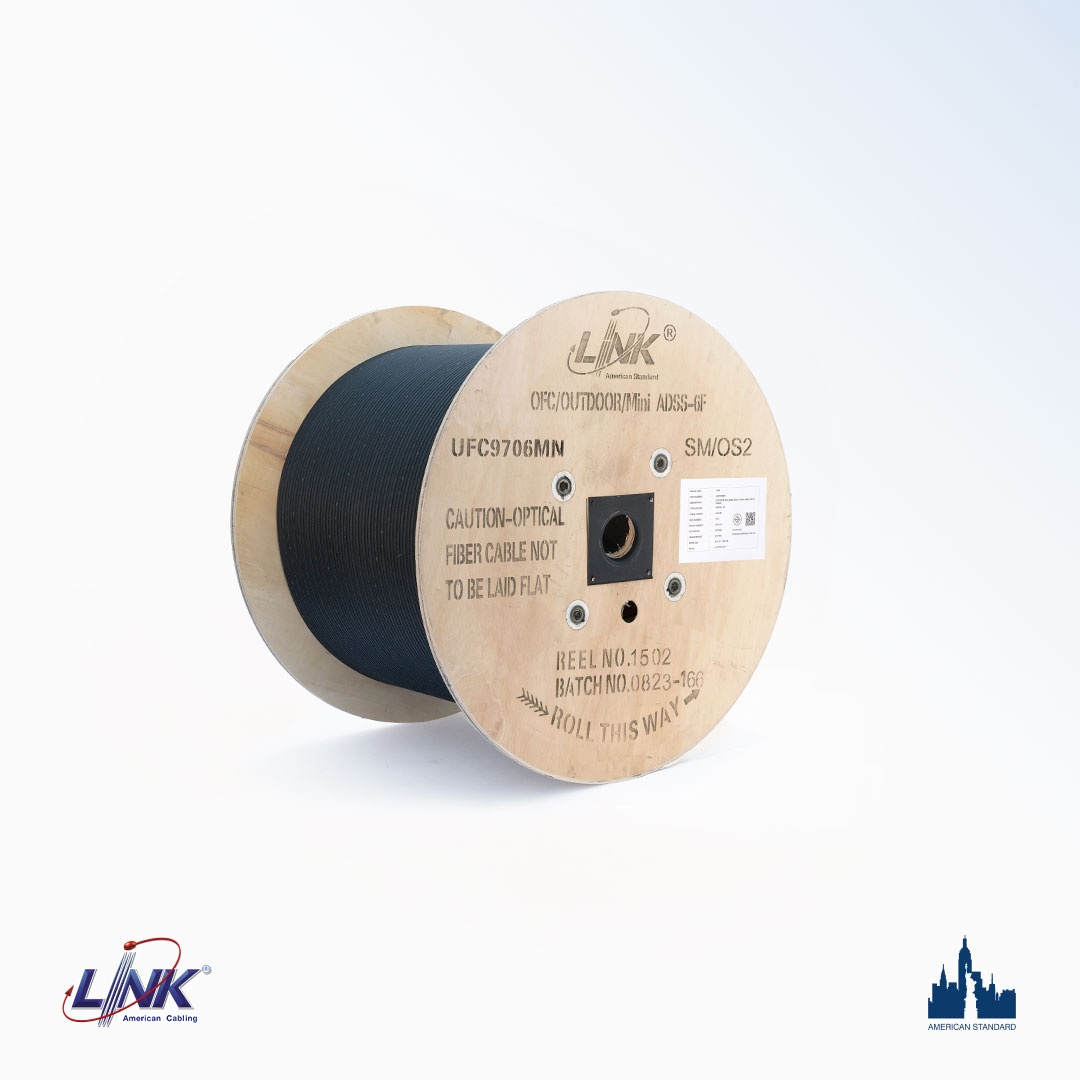

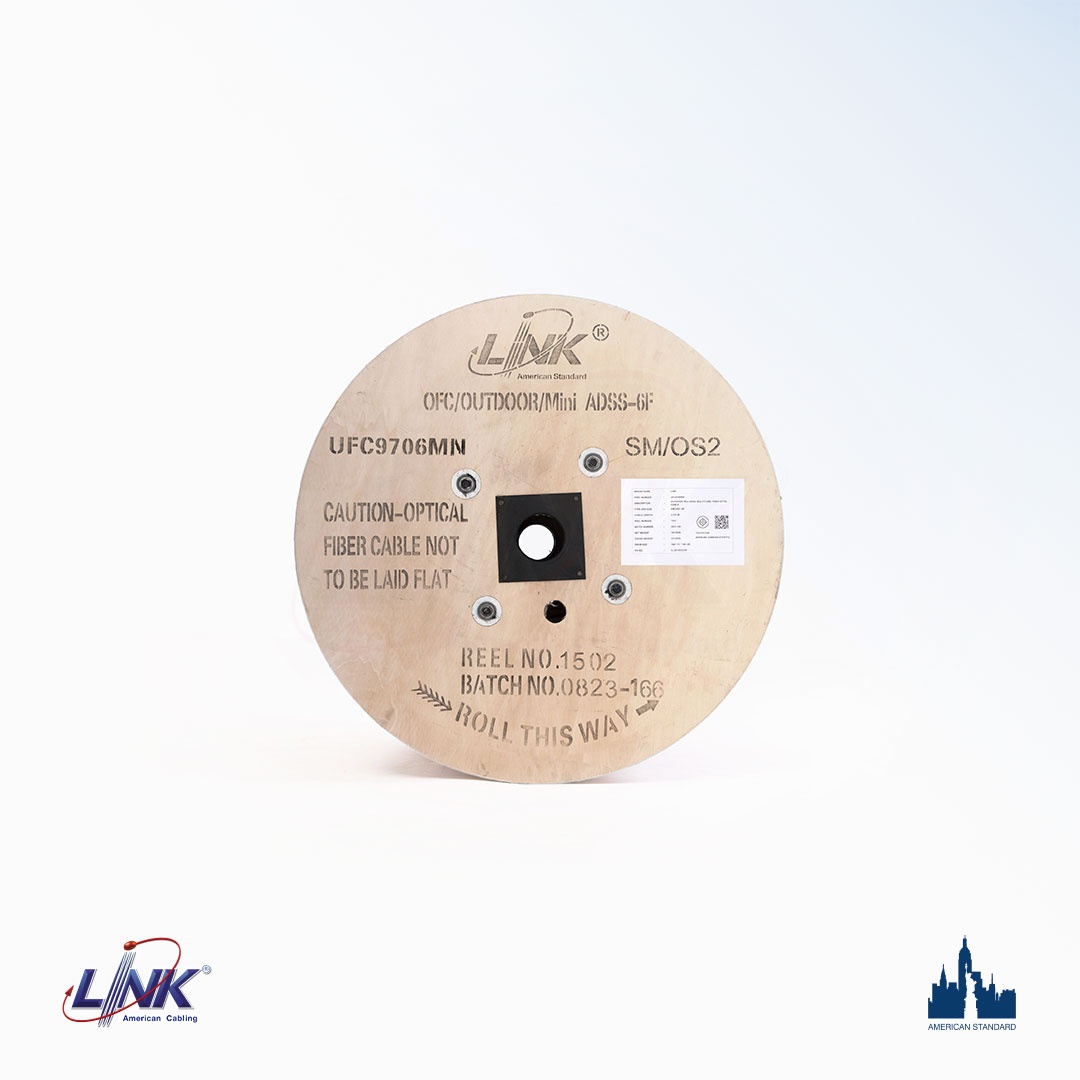

This specification covers the construction and properties of Mini-ADSS (All Dielectric Self-Support), Outdoor, 3 Twisted-tube, Single Jacket, fiber optic cable for aerial and duct installation. LINK fiber optic cable supports application such as 40/100Gbps Ethernet, IEEE802.3ae, 10G Ethernet, IEEE802.3z, Gigabit Ethernet, Fast Ethernet, Ethernet, 100BASE-F, 52/155/622Mbps and 1.2Gbps ATM, FDDI, Fiber channel and others. LINK Mini-ADSS, Outdoor/Multi-tube, Single Jacket, fiber optic cable. Single-mode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a dielectric central strength member. Dry water blocking tapes wrapped around the core, provide protection against water ingress. These user friendly elements replace the sticky cable filling gel used in traditional loose tube cable designs. Water Blocking E-glass yarns, which provide additional tensile strength, are applied over the cable core. The cable sheath is high density polyethylene jacket.

ANSI/TIA-568.3-D
ANSI/TIA-568-C.3
ANSI/ICEA 640
IEEE P-1222
Telcordia (Bellcore) GR-20-CORE
ITU-T G.652D (Singlemode)
ITU-T G.651 (Multimode)
ISO/IEC 11801:2011
ISO/IEC 11801:2017
IEC 60793, IEC 60794-1-2
EN 50173-1
TIS 2166-2548
RoHS Compliant
